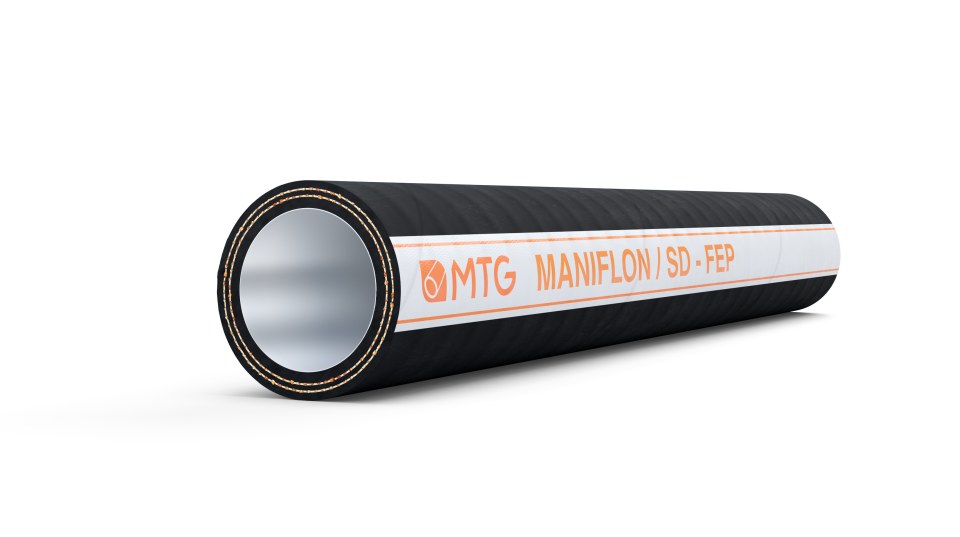

MANIFLON/SD-FEP

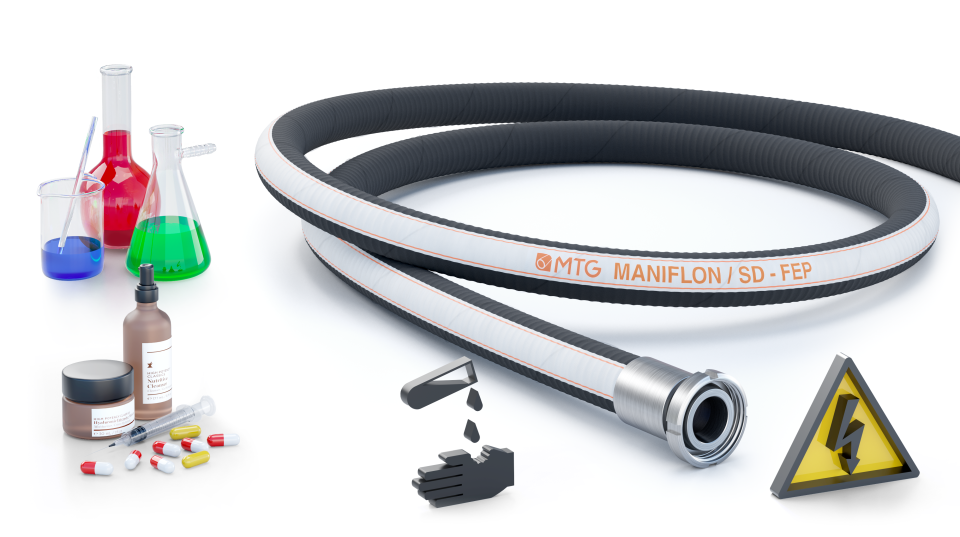

Universal suction and delivery hose for conveying alcohols, acids, alkaline products, polar and non polar solvents and other aggressive chemicals.
The chemical inertness and the high degree of impermeability of its FEP liner make it suitable for conveying a wide range of aggressive chemicals.

Execution in accordance with regulation EN 12115:2011.

More details
Contact us
Data sheet

Main benefits

Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

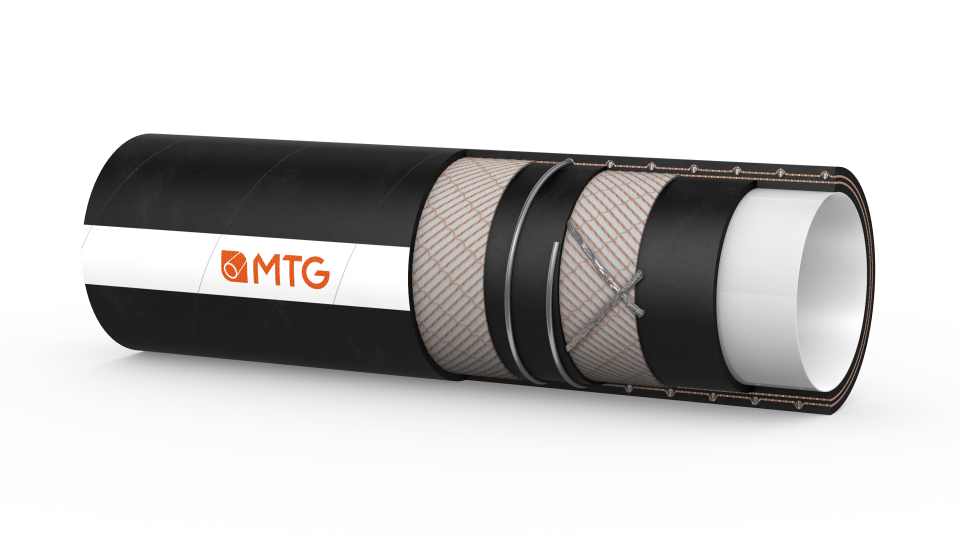

Construcion

TUBE

  • FEP (Fluorinated Ethilene Propylene) liner, light colour,smooth.
  • Compliance: 3A Sanitary standards n.20-27, FDA Standards, USP Class VI and Regulation EU n. 10/2011.

REINFORCEMENT

  • Synthetic textile plies.
  • Embedded steel helix wire and two copper wires are built in.

COVER

  • Synthetic rubber, black colour, antistatic (R < 10^6 Ω), smooth, resistant to abrasion and weather, cloth finish.

Safety factors

  • ≥ 4 times working pressure up to ID 75 mm.
  • ≥ 3 times working pressure over ID 75 mm.

Temperatures

  • In accordance with EN 12115:2011.
  • Peaks up to +130°C for sterilizations for max. 30 minutes.

ELECTRICAL PROPERTIES

  • Identification symbol: M.

   Model without copper wires available upon request; identification symbol: Ω.

Marking

Dimensional tollerance

SIZE TOLERANCES: I.D.: EN 12115 – O.D.: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius.
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6.0 16 64 125 -0.9 0.75 30
25 37 6.0 16 64 150 -0.9 0.94 30
32 44 6.0 16 64 175 -0.9 1.10 30
38 51 6.5 16 64 225 -0.9 1.50 30
51 67 8.0 16 64 275 -0.9 2.40 30
63.5 79.5 8.0 16 64 300 -0.9 2.95 20
76 92 8.0 16 48 350 -0.9 3.60 20

Above technical data are referring to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
