MANIFLON/SD-MFA

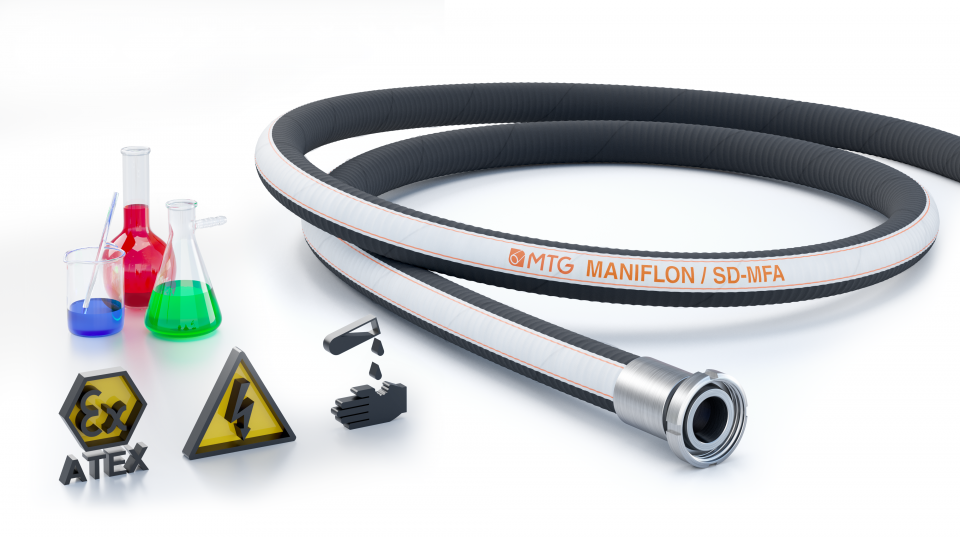

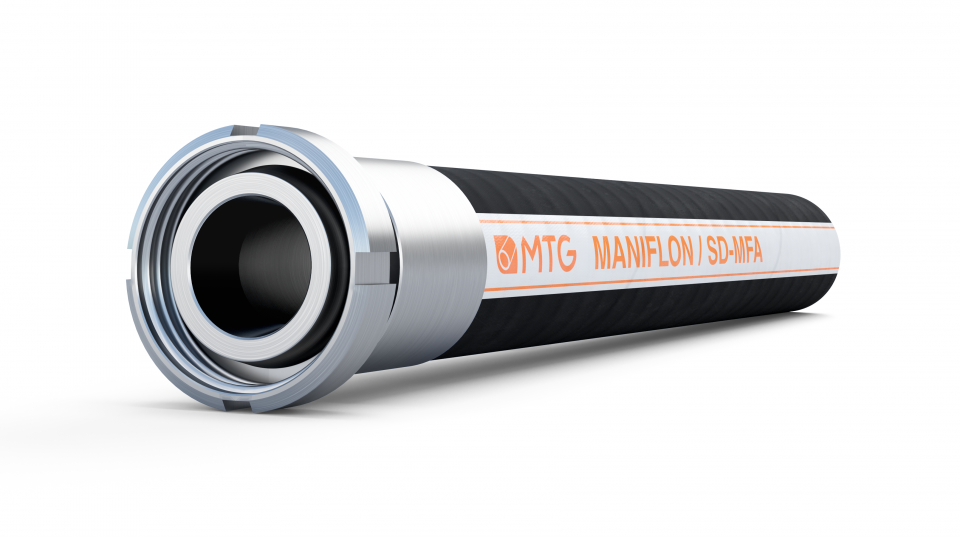

Multipurpose suction and delivery hose for handling solvents and chemicals with high concentration.

Execution in accordance with regulation EN 12115:2011.

Hose approved by the Institute Ineris, attestation nr. INERIS-16-AM-343, for use in Atex areas.

PATENT: E.P. 1450092

More details
Contact us
Data sheet

Main benefits

  • The fluorinated inner liner ensures an excellent impermeability and resistance to oxidation, temperature and mechanical stress, thus avoiding cracks.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

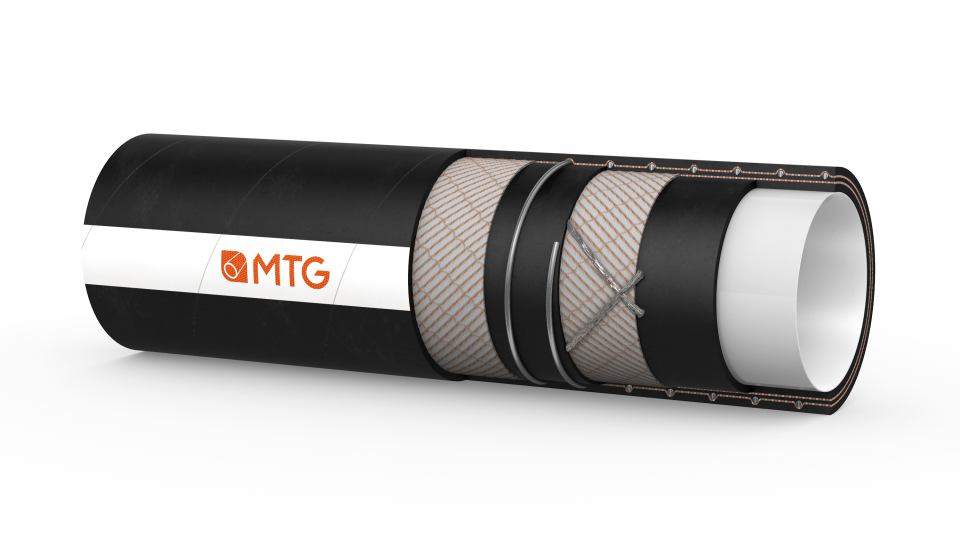

Construcion

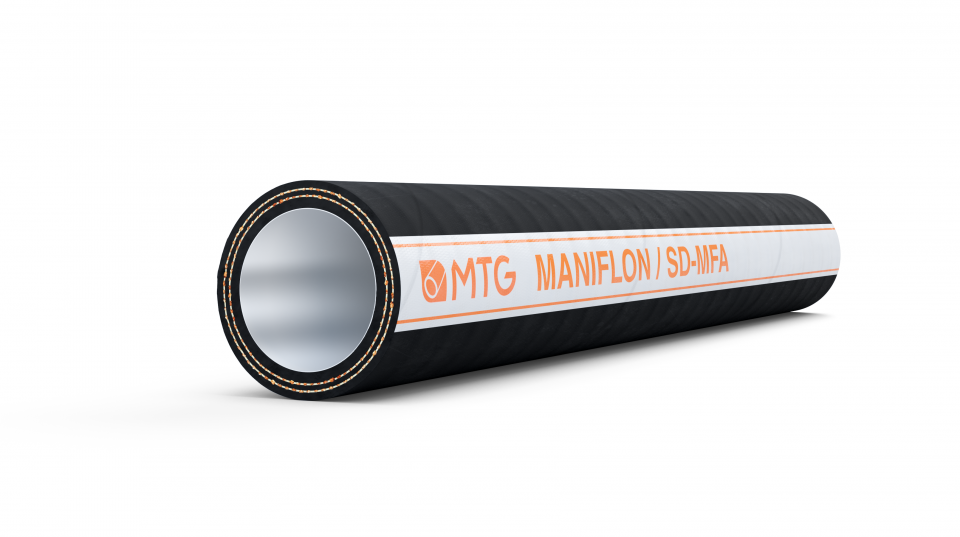

TUBE

  • MFA (Perfluoralkoxy Polymer, MFA), fully fluorinated, light colour, patented, mirror-smooth, odourless and tasteless.
  • Compliance: USP Class VI, ISO 10993, FDA Standards, D.M. 21/03/73 and following amendments, Regulation EU n. 10/2011.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Two copper wires are built-in.

COVER

  • EPDM rubber (code 104N), black colour, smooth, resistant to abrasion, ozone and weather, cloth finish.
  • Antistatic in acc. with EN 12115:2011. Electric resistance R < 10^6 Ω.

Safety factors

  • ≥ 4 times working pressure up to DN 75 mm.
  • ≥ 3 times working pressure over DN 75 mm.

Temperatures

  • In accordance with the standard EN 12115:2011.
  • Resistance to steam up to +130° C for max. 30 minutes.

Note

  • We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.

ELECTRICAL PROPERTIES

  • Identification symbol: M.
  • Model without copper wires available upon request; identification symbol: Ω.

Marking

Dimensional tollerance

I.D.: EN 12115 – Wall Thickness: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
13 25 6 16 64 90 -0,9 0,55 20
19 32 6 16 64 125 -0,9 0,75 30
25 38 6,5 16 64 150 -0,9 0,95 30
32 44 6,5 16 64 175 -0,9 1,15 30
38 51 6,5 16 64 225 -0,9 1,5 30
51 66 7,5 16 64 275 -0,9 2,2 30
63,5 79,5 8 16 64 300 -0,9 3 20
76 93 8,5 16 48 350 -0,9 3,7 20
100 118 9 16 48 500 -0,9 5 20
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
1/2 0,98 240 960 3,54 -26,57 0,37 65,6
3/4 1,26 240 960 4,92 -26,57 0,5 98,4
1 1,5 240 960 5,91 -26,57 0,64 98,4
1 1/4 1,73 240 960 6,89 -26,57 0,77 98,4
1 1/2 2,01 240 960 8,86 -26,57 1,01 98,4
2 2,6 240 960 10,83 -26,57 1,48 98,4
2 1/2 3,13 240 960 11,81 -26,57 2,01 65,6
3 3,66 240 720 13,78 -26,57 2,48 65,6
3 15/16 4,65 240 720 19,69 -26,57 3,35 65,6

Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative

针对客户对软管的不同需求，我们可提供专门的设计/定制和生产。

我们可为您提供专门的咨询、设计和定制等解决方案，以满足您对产品规格的需求。

我们可为您提供专门的咨询、设计和定制等解决方案，以满足您对产品规格的需求。

获取更多信息

MANIFLON/SD-MFA
