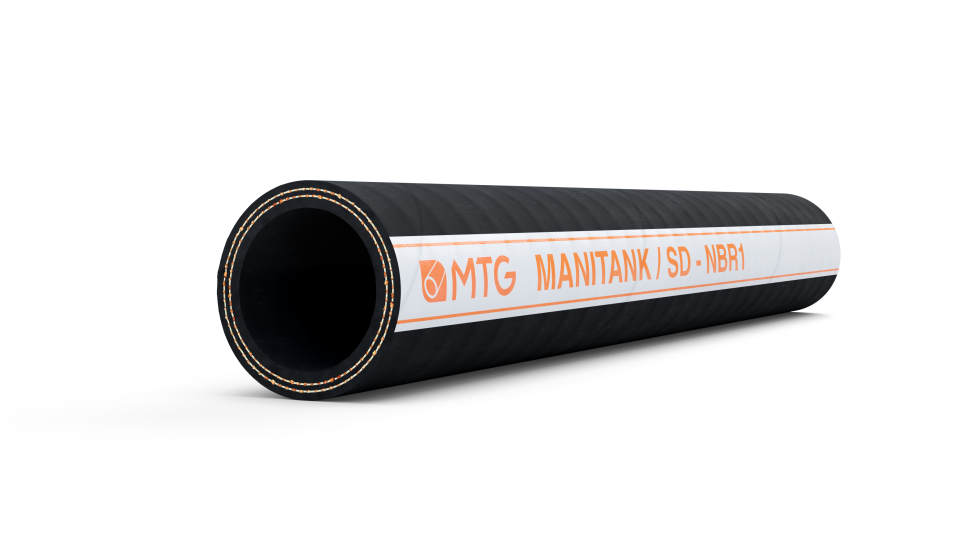

MANITANK/SD-NBR1

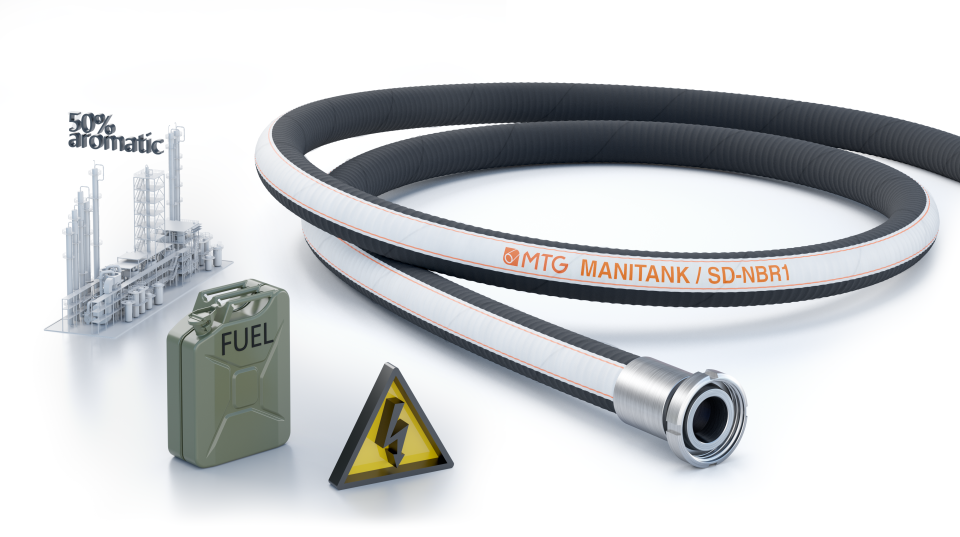

MANITANK/SD-NBR1 is a suction and delivery hose suitable for hydrocarbons with an aromatic content up to 50%.

Excellent for use on tank trucks, rail tanks and processing plants in the oil industry.

Suitable for transferring petrol, diesel, biodiesel blends including B100 and fuels based on ethanol.

Execution in accordance with EN 12115:2011.

More details
Contact us
Data sheet

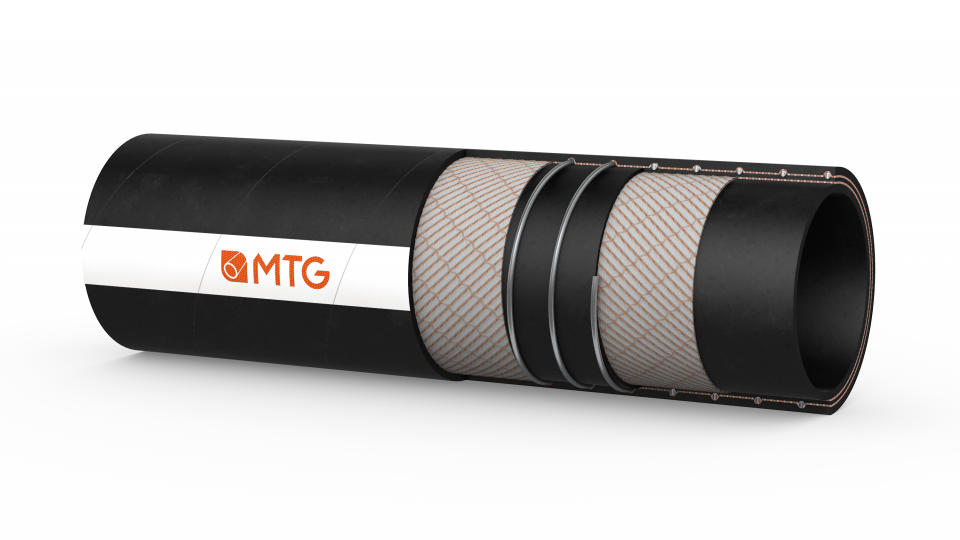

Construcion

TUBE

  • NBR1 rubber (code UNI E), antistatic (R< 10^6 Ω), black, smooth.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Built-in copper wires on demand.

COVER

  • NBR rubber (code 5600 DIN), black, antistatic (R< 10^6 Ω), resistant to abrasion, ozone, weather, fats and mineral oils, smooth, cloth finish

Safety factors

  • ≥ 4 times working pressure up to DN 75 mm.
  • ≥ 3 times working pressure over DN 75 mm.

Temperatures

  • In accordance with EN 12115: 2011.

Electrical properties

  • Electrical resistance through the hose wall: R< 10^9 Ω.
  • Identification symbol:
    – Ω/T for version without copper wires.
    – M/T for version with copper wires.

Marking

Dimensional tollerance

I.D.: EN 12115 – Ext.D.: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6 16 64 125 -0,9 0,7 40
25 37 6 16 64 150 -0,9 0,85 40
32 44 6 16 64 175 -0,9 1 40
38 51 6,5 16 64 225 -0,9 1,35 40
50 66 8 16 64 275 -0,9 2,1 40
63,5 79,5 8 16 64 300 -0,9 2,8 40
75 91 8 16 64 350 -0,9 3,3 40
100 118 9 16 64 450 -0,9 4,95 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
3/4 1,22 240 960 4,92 -26,57 0,47 131,2
1 1,46 240 960 5,91 -26,57 0,57 131,2
1 1/4 1,73 240 960 6,89 -26,57 0,67 131,2
1 1/2 2,01 240 960 8,86 -26,57 0,91 131,2
1 31/32 2,6 240 960 10,83 -26,57 1,41 131,2
2 1/2 3,13 240 960 11,81 -26,57 1,88 131,2
2 61/64 3,58 240 960 13,78 -26,57 2,21 131,2
3 15/16 4,65 240 720 17,72 -26,57 3,32 131,2

Chemical resistance acc. to MTG Chemical Resistance Chart.
Above technical data refer to application at room temperature (+20°C).
Other sizes and colours available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
