DRAGA/10-S15/RACC

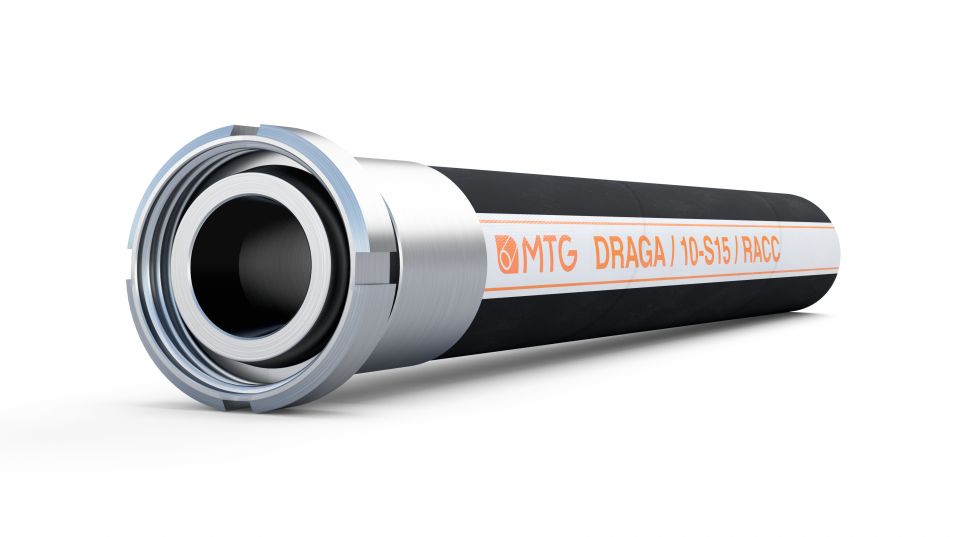

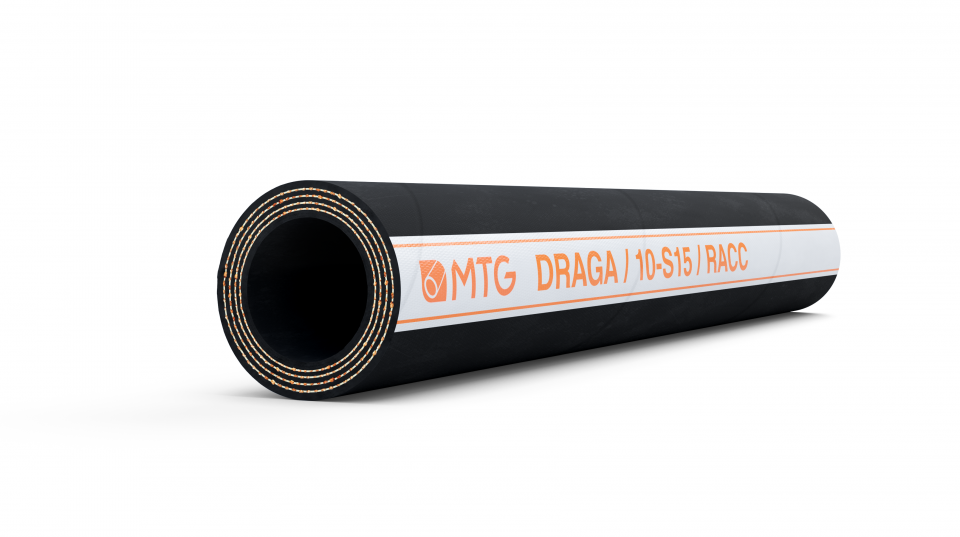

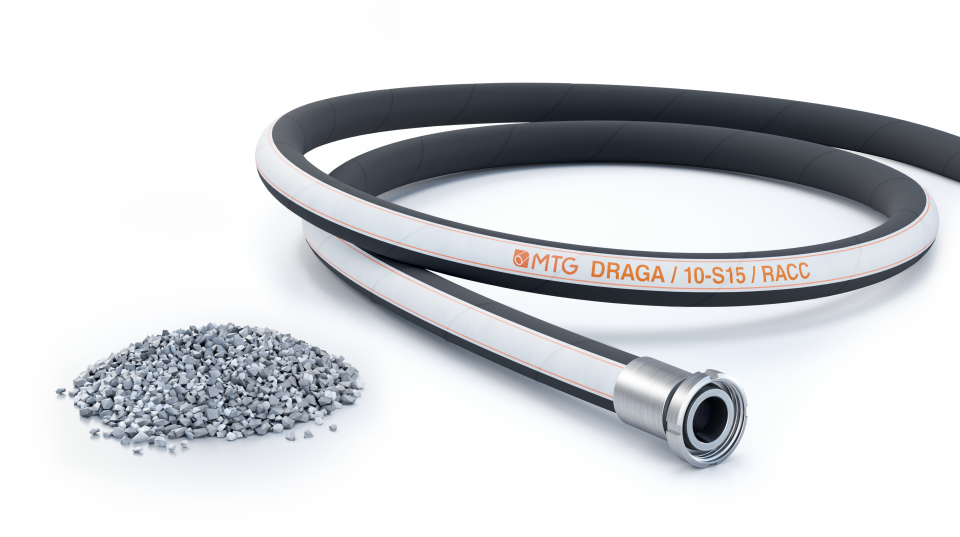

DRAGA/10-S15/RACC is a flexible connection hose in the discharge line of dredges, for hydraulic transport of sand, gravel and crushed materials.

More details

Construcion

TUBE

  • NR/BR rubber, resistant to abrasion, smooth, black colour.
  • Thickness 15 mm.

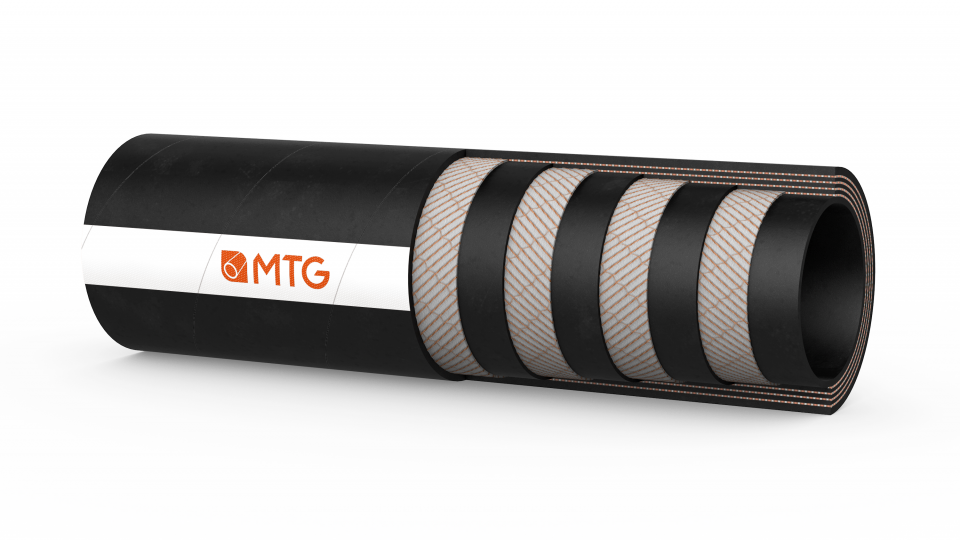

REINFORCEMENT

  • High strength textile plies, divided by NR/SBR rubber.

COVER

  • Synthetic rubber, resistant to abrasion, ozone and weather. Black, smooth, cloth finish.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -30°C to +70°C.

Note

  • It is only supplied in fixed lengths with couplings at the ends.

Fitting

  • Vulcanized stems or beaded rubber ends with trapezoidal section.

Dimensional tollerance

Inner diameter: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length: ISO 1307

Other sizes and colours are available on request. Please contact our Sales Department.  Above technical data are referring to application at room temperature (20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
