Slideflex

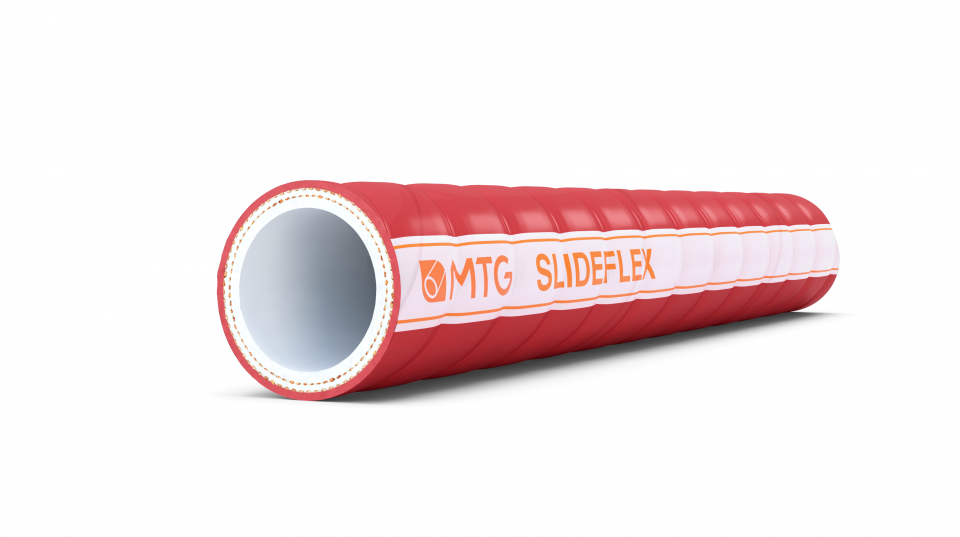

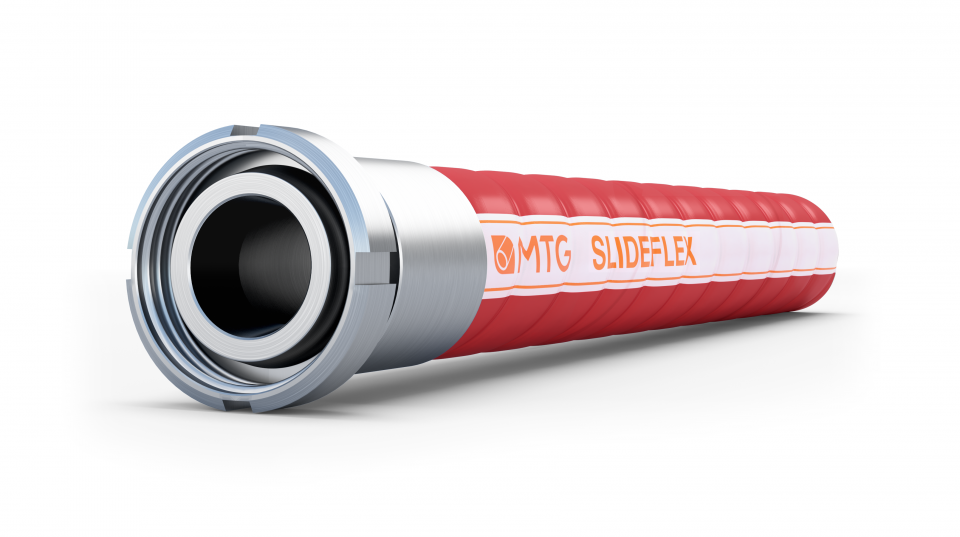

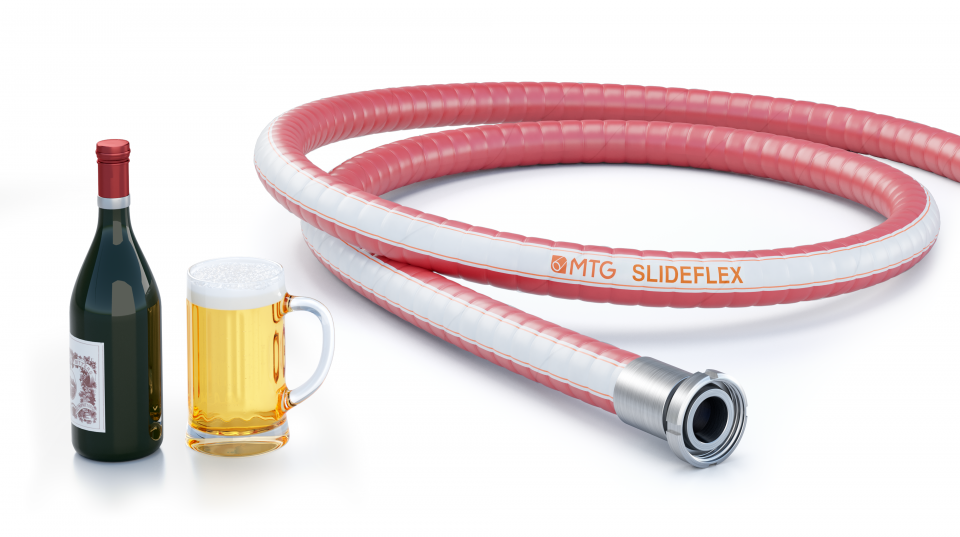

MTG Slideflex is a flexible hose specifically designed for conveying beer, cider, high quality wines and soft drinks.
Suction and delivery hose.
Main benefits
- The special cover, with a low coefficient of friction, allows an easy sliding over the working surfaces.
- The glossy finish thermoplastic cover is easy to clean: this enables an effective cleaning and sanitization of the outer surface of the hose in order to reduce the spread of bacterial and viral loads in the work environment.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle does not use animal derivatives, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
- Non-plasticized inner tube.

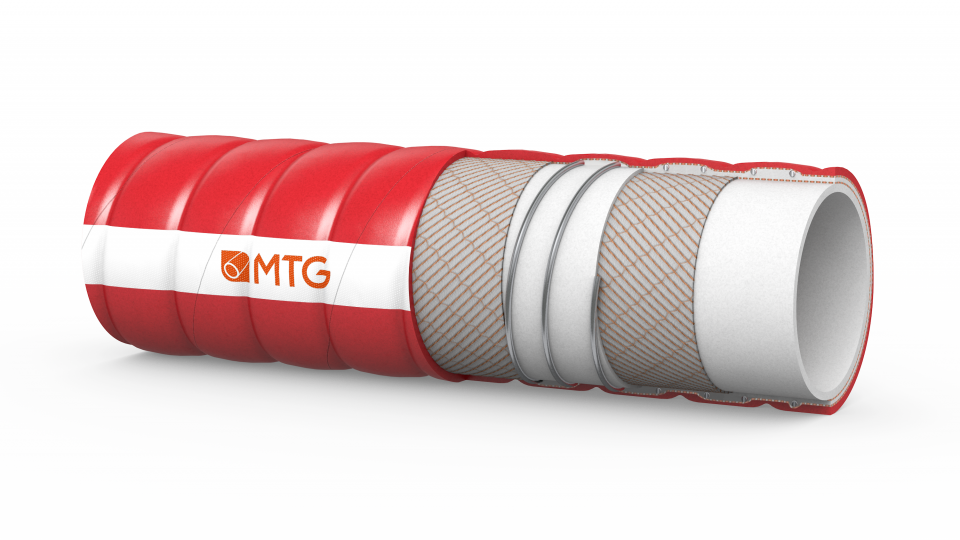

Construcion
TUBE
- BIIR rubber (code 90 FDA), light colour, food quality, odourless, tasteless, mirror-smooth
- Compliance: 3-A Sanitary Standards n.18-03-Class II, FDA Standards, D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
- Built-in steel helix wires.
COVER
- Low friction thermoplastic polymer. Red colour. Wide corrugated, glossy finish.
- Abrasion, ozone and weather resistant. It withstands the contact with a wide range of detergents that can be used for the cleaning and sanitization of the outer surface of the hose.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -40°C to +120°C depending on fluids conveyed.
- Sterilization up to +130°C for max. 30 minutes.
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 25 | 37 | 6,0 | 10 | 30 | 75 | -0,9 | 0,71 | 40 |
| 38 | 51 | 6,5 | 10 | 30 | 120 | -0,9 | 1,22 | 40 |
| 51 | 66 | 7,5 | 10 | 30 | 150 | -0,9 | 1,86 | 40 |
| 63,5 | 79,5 | 8,0 | 10 | 30 | 195 | -0,9 | 2,35 | 40 |
| 76 | 92 | 8,0 | 10 | 30 | 230 | -0,9 | 3,00 | 40 |
| 76 | 93 | 8,5 | 10 | 30 | 230 | -0,9 | 3,10 | 40 |
| 102: | 119 | 8,5 | 10 | 30 | 300 | -0,9 | 4,00 | 40 |
| Internal diam. inch |
External diam. inch |
Wall thickness inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length inch |
|---|---|---|---|---|---|---|---|---|
| 1 | 1,46 | 0,24 | 145 | 435 | 2,95 | -26,57 | 0,48 | 131,2 |
| 1 1/2 | 2,01 | 0,26 | 145 | 435 | 4,72 | -26,57 | 0,82 | 131,2 |
| 2 | 2,60 | 0,30 | 145 | 435 | 5,91 | -26,57 | 1,25 | 131,2 |
| 2 1/2 | 3,13 | 0,31 | 145 | 435 | 7,68 | -26,57 | 1,58 | 131,2 |
| 3 | 3,62 | 0,31 | 145 | 435 | 9,06 | -26,57 | 2,02 | 131,2 |
| 3 | 3,66 | 0,33 | 145 | 435 | 9,06 | -26,57 | 2,08 | 131,2 |
| 4 | 4,69 | 0,33 | 145 | 435 | 11,81 | -26,57 | 2,69 | 131,2 |
The a.m. data are referring to application at room temperature (+20°C).
Other diameters and colours are available on request: please contact our Sales Department.
