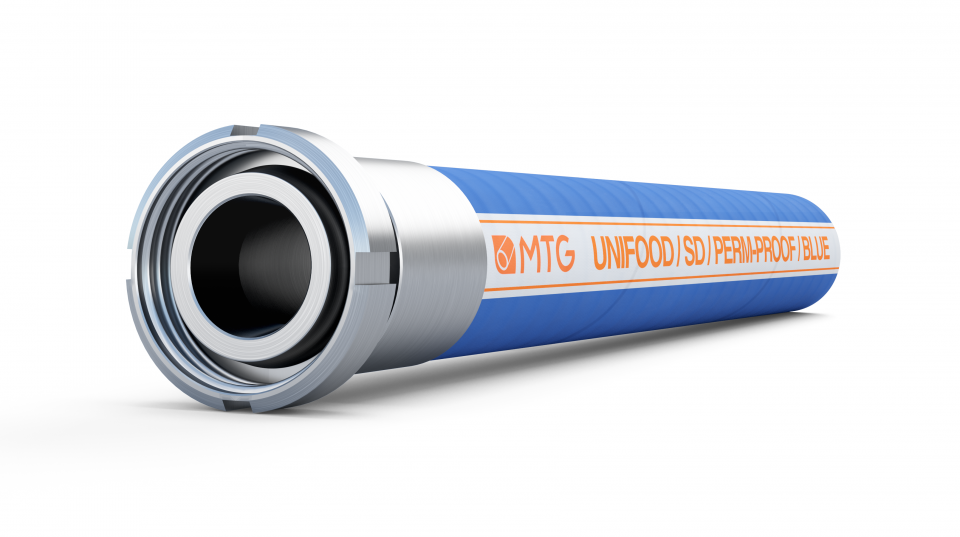

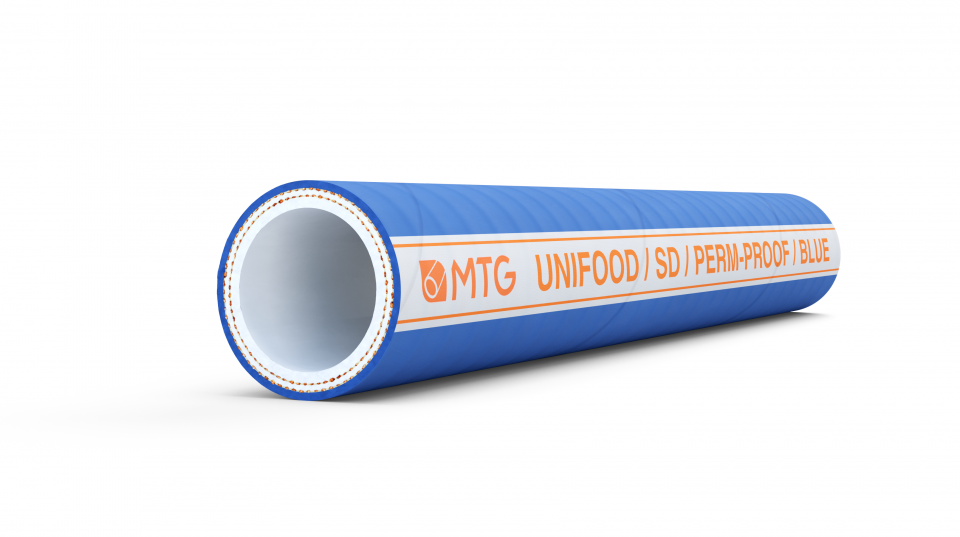

UNIFOOD/SD/PERM-PROOF/BLUE
Food hose of latest generation, specifically designed to meet the demanding requirements of the beer processing industry.

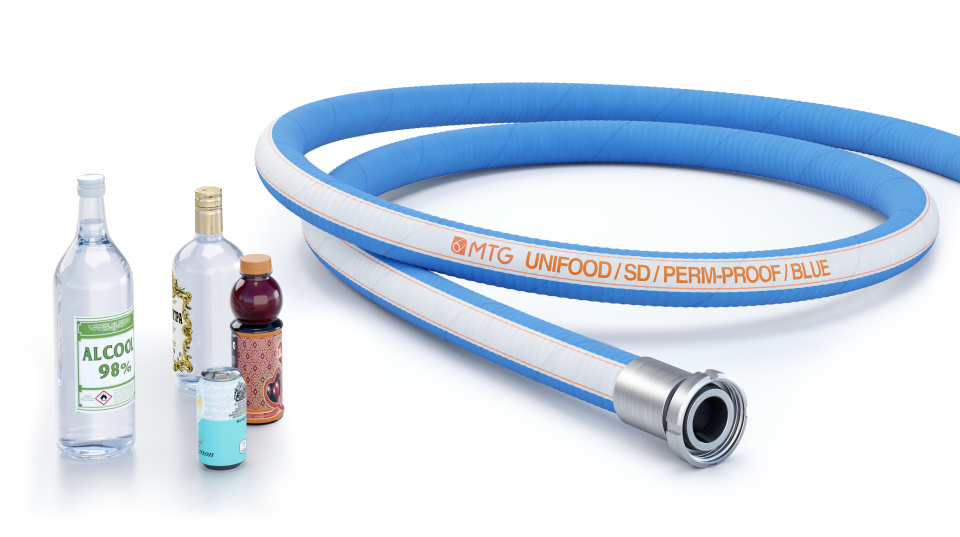

Suitable for conveying raw, pasteurized and organic beer, high quality alcoholic beverages and soft drinks such as wine, spirits and pure alcohol up to 98%.
UNIFOOD/SD/PERM-PROOF/BLUE is also suitable for fatty liquid foodstuffs.
Suction and delivery hose.
Main benefits
- The improved chemical composition of the new tube, made of odourless and tasteless modified polyethylene, ensures contamination-free transport of the product conveyed, thus preserving the original organoleptic properties.
- The special modified polyethylene tube ensures utmost resistance to heavy-duty cleaning processes, including the use of chemicals and high temperatures.
- The reinforced structure makes the hose strong and resistant to heavy-duty applications.
- UNIFOOD/SD/PERM-PROOF/BLUE complies with the Regulations EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to the current European Regulation EC 1907/2006 (REACH).

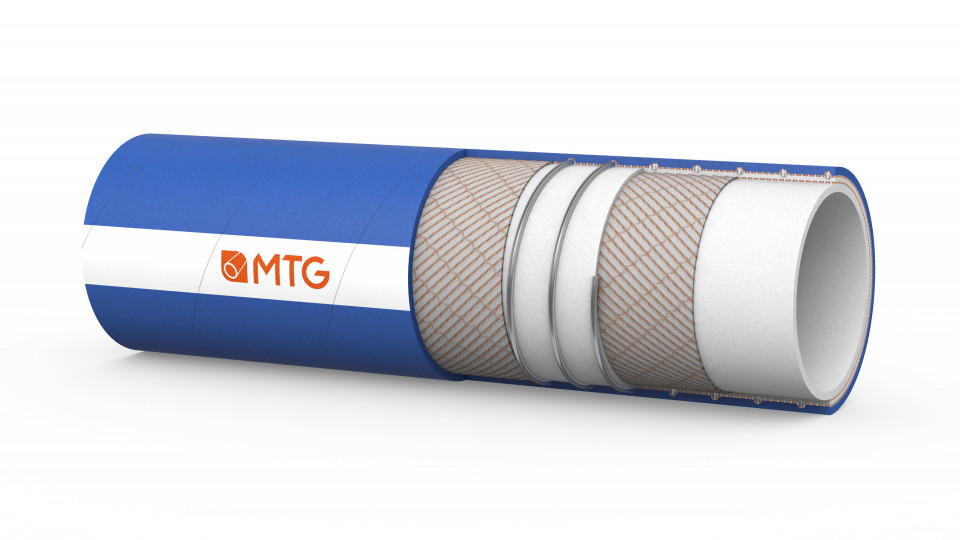

Construcion
TUBE
- Modified polyethylene, light colour, odourless and tasteless, mirror-smooth.
- Complying with FDA Standards, Regulation EU 10/2011, D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
- If required, a “CR” version with built-in copper wires is available. (version: UNIFOOD/SD/PERM-PROOF/cr).
COVER
- Synthetic rubber, blue colour, smooth, cloth finish.
- Resistant to abrasion, weather and short contact with edible oils and fatty foodstuffs.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -35°C up to +110°C depending on conveyed media.
- Peaks at +140°C for sterilizations for a maximum time of 30 minutes.
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 25 | 38 | 6,5 | 15 | 45 | 150 | -0,9 | 0,95 | 40 |
| 32 | 45 | 6,5 | 15 | 45 | 210 | -0,9 | 1,15 | 40 |
| 38 | 52 | 7 | 15 | 45 | 250 | -0,9 | 1,49 | 40 |
| 40 | 54 | 7 | 15 | 45 | 250 | -0,9 | 1,56 | 40 |
| 50 | 66 | 8 | 15 | 45 | 400 | -0,9 | 2,12 | 40 |
| 51 | 67 | 8 | 15 | 45 | 400 | -0,9 | 2,15 | 40 |
| 63,5 | 82 | 9,25 | 15 | 45 | 520 | -0,9 | 3,1 | 40 |
| 75 | 94 | 9,5 | 15 | 45 | 600 | -0,9 | 3,75 | 40 |
| 76 | 95 | 9,5 | 15 | 45 | 600 | -0,9 | 3,78 | 40 |
| 100 | 123 | 11,5 | 15 | 45 | 800 | -0,9 | 6,2 | 40 |
| 102 | 125 | 11,5 | 15 | 45 | 800 | -0,9 | 6,25 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1 | 1.5 | 225 | 675 | 5.91 | -0.9 | 0.64 | 131.2 |
| 1,25 | 1.77 | 225 | 675 | 8.27 | -0.9 | 0.77 | 131.2 |
| 1,5 | 2.05 | 225 | 675 | 9.84 | -0.9 | 1 | 131.2 |
| 1,578125 | 2.13 | 225 | 675 | 9.84 | -0.9 | 1.05 | 131.2 |
| 1,96875 | 2.6 | 225 | 675 | 15.75 | -0.9 | 1.42 | 131.2 |
| 2 | 2.64 | 225 | 675 | 15.75 | -0.9 | 1.44 | 131.2 |
| 2,5 | 3.23 | 225 | 675 | 20.47 | -0.9 | 2.08 | 131.2 |
| 2,953125 | 3.7 | 225 | 675 | 23625 | -0.9 | 2.52 | 131.2 |
| 3 | 3.74 | 225 | 675 | 23.62 | -0.9 | 2.54 | 131.2 |
| 3,9375 | 4.84 | 225 | 675 | 31.5 | -0.9 | 4.16 | 131.2 |
| 4 | 4.92 | 225 | 675 | 31.5 | -0.9 | 4.19 | 131.2 |
Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
