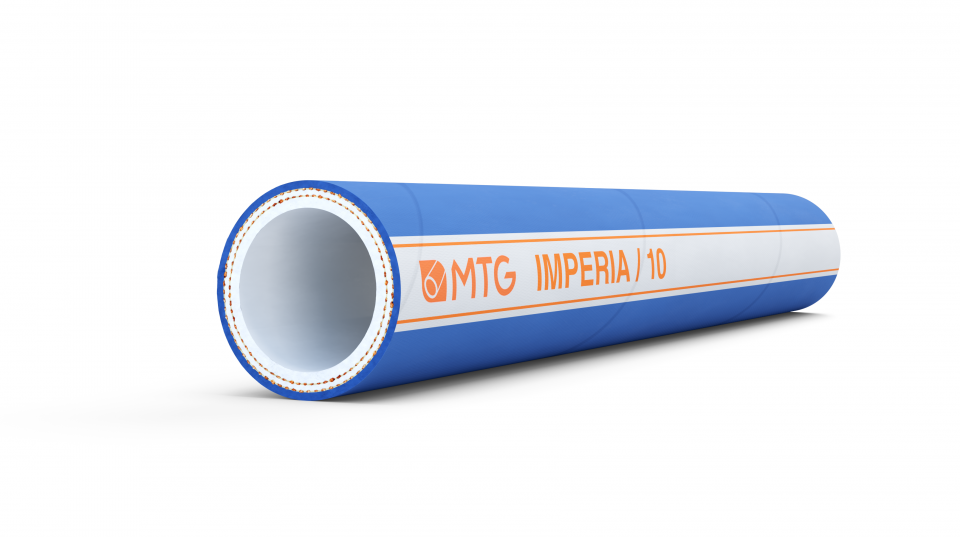

IMPERIA/10

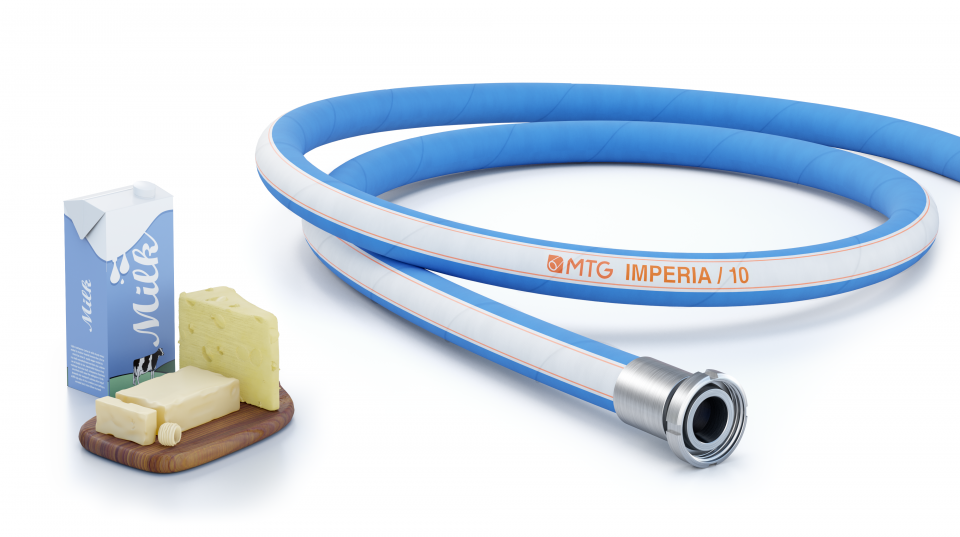

Rubber hose specifically designed to convey milk and milk products, milk whey and fatty foodstuffs in general.
Normally used in dairies, edible oil mills and food processing industries.
Delivery hose. Suitable for light suction.

More details
Contact us
Data sheet

Main benefits

  • The high-strength structure makes it perfect for unloading operations of milk and milk products, as well as for heavy-duty applications.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
  • The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
  • Non-plasticized hose

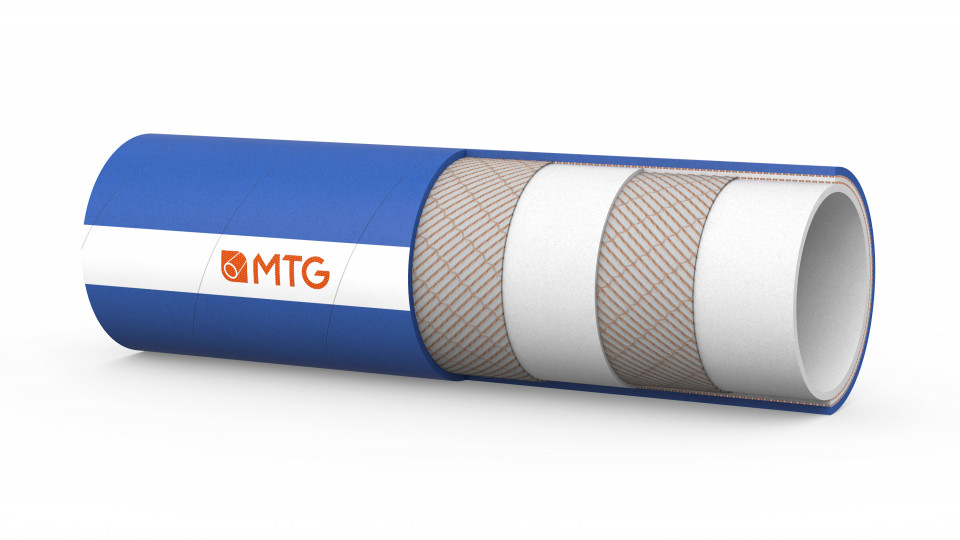

Construcion

TUBE

  • NBR rubber (code NAB 90), light colour, food quality, odourless and tasteless, mirror-smooth.
  • Compliance. FDA Standards, 3-A Sanitary Standards n.18-03-Class II, BfR Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments.

REINFORCEMENT

  • Plies of synthetic cord.

COVER

  • CR rubber, blue colour, abrasion and weather resistant, smooth, cloth finish.
  • The composition of the cover provides a good resistance to ageing and short contact with animal and vegetable fats.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -20°C to +90°C depending on the product conveyed and on use.

Sterilization

Fitting

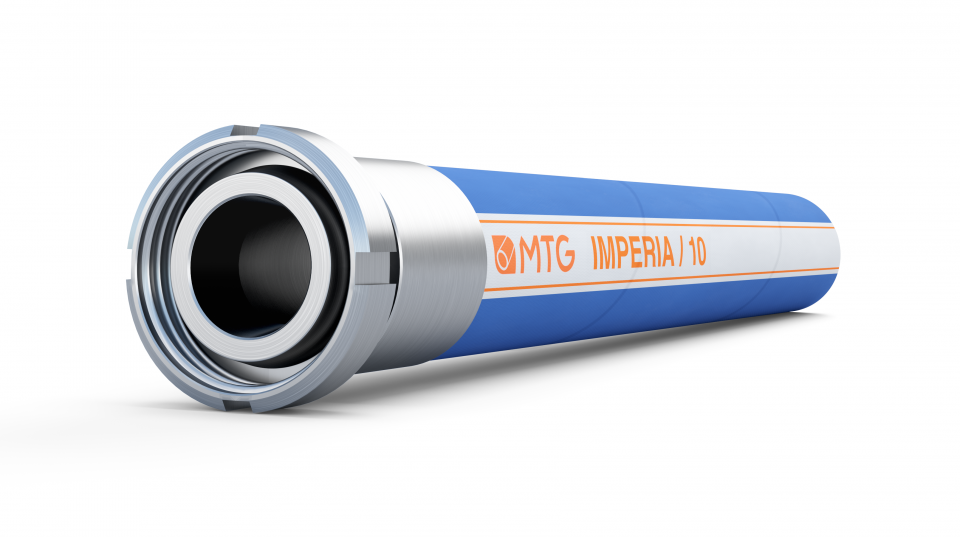

  • The hose may be supplied in application lengths, assembled with any kind of couplings (CLAMP, DIN 11851, etc.).

Marking

Dimensional tollerance

Diametro interno: ISO 1307 – Spessore parete: DIN 7715 T4 S2 – Lunghezz: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
13 23 5 10 30 80 -0,8 0,35 40
19 29 5 10 30 120 -0,65 0,47 40
25 37 6 10 30 150 -0,65 0,77 40
32 48 8 10 30 200 -0,8 1,42 40
35 53 9 10 30 210 -0,8 1,77 40
38 56 9 10 30 230 -0,8 1,93 40
40 60 10 10 30 240 -0,8 2,4 40
45 65 10 10 30 270 -0,8 2,69 40
50 70 10 10 30 300 -0,65 2,79 40
52 74 11 10 30 310 -0,65 3,19 40
60 84 12 10 30 420 -0,65 3,89 40
65 89 12 10 30 460 -0,5 4,16 40
70 98 14 10 30 500 -0,5 5,35 40
75 105 15 10 30 530 -0,5 5,95 40
80 110 15 10 30 560 -0,5 6,18 40
100 132 16 10 30 700 -0,5 8,16 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
1/2 0,91 150 450 3,15 -23,62 0,23 131,2
3/4 1,14 150 450 4,72 -19,19 0,32 131,2
1 1,46 150 450 5,91 -19,19 0,52 131,2
1 1/4 1,89 150 450 7,87 -23,62 0,95 131,2
1 3/8 2,09 150 450 8,27 -23,62 1,19 131,2
1 1/2 2,2 150 450 9,06 -23,62 1,29 131,2
1 37/54 2,36 150 450 9,45 -23,62 1,61 131,2
1 49/64 2,56 150 450 10,63 -23,62 1,8 131,2
1 31/32 2,76 150 450 11,81 -19,19 1,87 131,2
2 3/64 2,91 150 450 12,2 -19,19 2,14 131,2
2 3/8 3,31 150 450 16,54 -19,19 2,61 131,2
2 9/16 3,5 150 450 18,11 -14,76 2,79 131,2
2 3/4 3,86 150 450 19,69 -14,76 3,59 131,2
2 61/54 4,13 150 450 20,87 -14,76 3,99 131,2
3 5/32 4,33 150 450 22,05 -14,76 4,15 131,2
3 15/16 5,20 150 450 27,56 -14,76 5,47 131,2

Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
