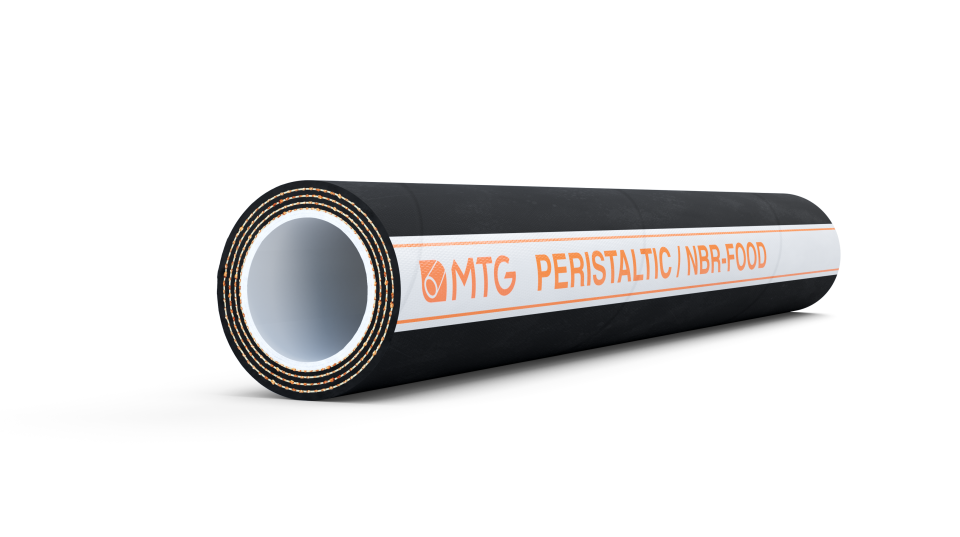

PERISTALTIC/NBR-FOOD

PERISTALTIC/NBR-Food is a NBR rubber hose specifically engineered for application on peristaltic pumps.

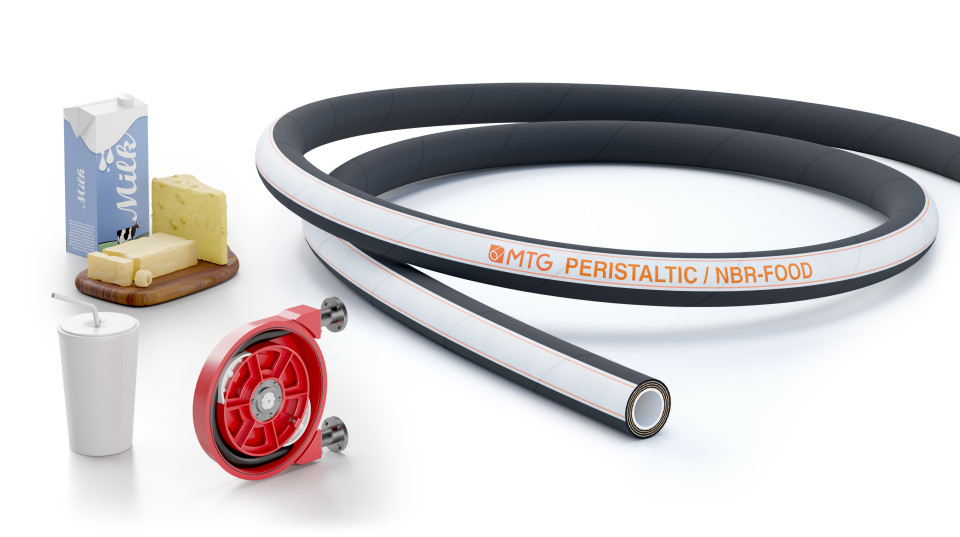

Specifically designed for transferring animal and vegetable products, fatty and oily foodstuffs.

More details

Main benefits

  • Inner tube complying with FDA Standards, 3-A Sanitary Standards n.18-03-Class II, BfR Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments and RAL registration for food quality.
  • The hose complies with the Regulations EC 1935/2004 and 2023/2006/EC (GMP).
  • The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to
    restrictions according to the current European Regulation EC 1907/2006 (REACH).
  • Non-plasticized inner tube.

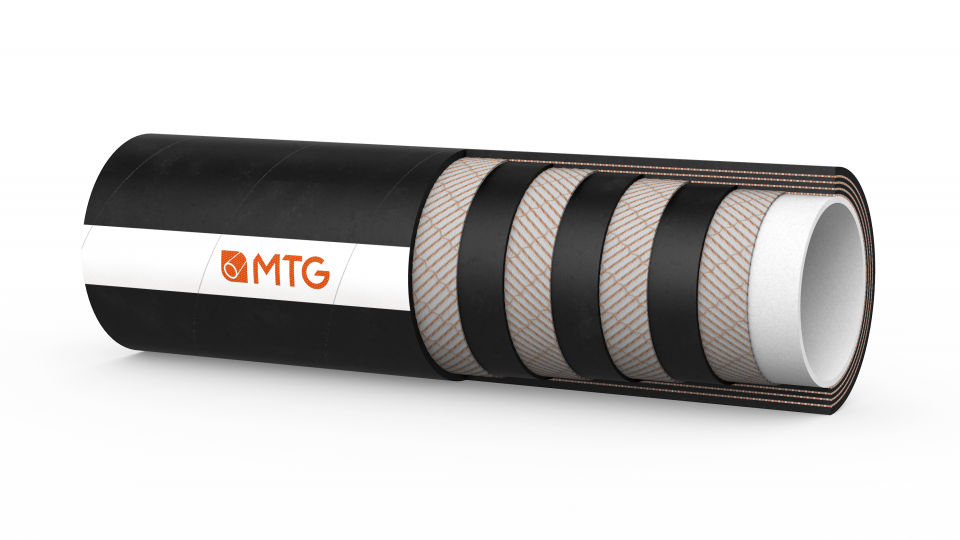

Construcion

TUBE

  • NBR rubber (code NAB90), light colour, food quality, odourless and tasteless, mirror-smooth.
  • Compliance: FDA Standards, 3-A Sanitary Standards n.18-03-Class II, BfR Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments.

REINFORCEMENT

  • Plies of synthetic cord.

COVER

  • NBR rubber, black colour, smooth, cloth finish.
  • Version available with ground cover: MTG-PERISTALTIC/NBR-Food/Ret.

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • From -10°C to +90°C depending on medium.

Note

  • For any further information concerning technical features, hoses producted from other types of synthetic rubber, hose solutions available and chemical compatibility with the products conveyed, please contact MTG Sales Department.
  • Normally supplied in service lengths.
  • Inner diameter, wall thickness and length are defined by the peristaltic pump manufacturer.
  • Without any marking or marking on demand.
  • Without any marking for the version with ground cover.

Working pressure

  • 10 bar.

Dimensional tollerance

For sizes and colours available, please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
