PERISTALTIC/EPDM

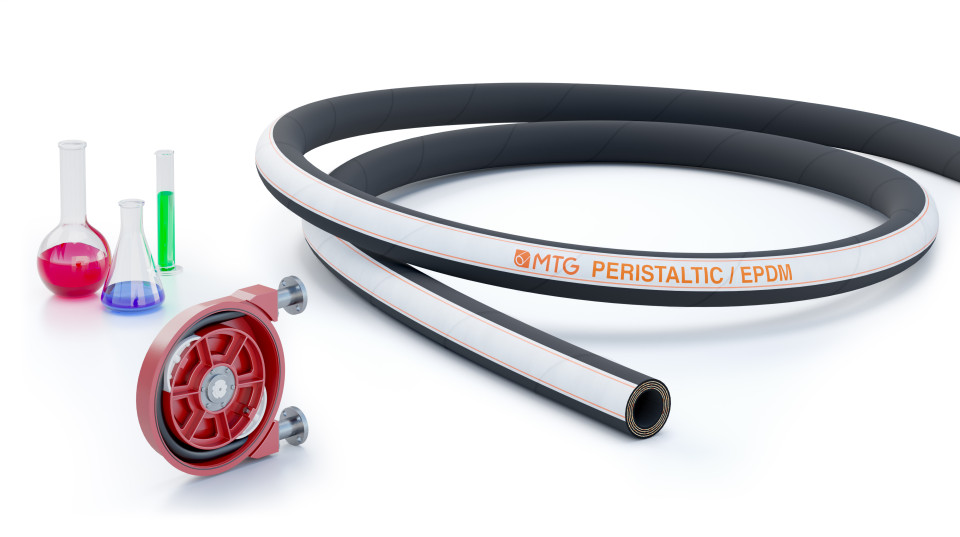

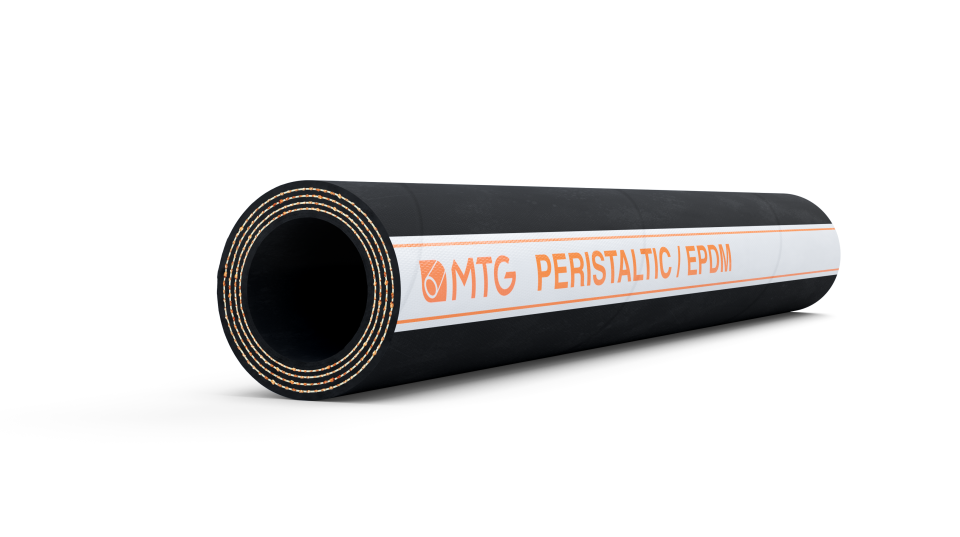

PERISTALTIC/EPDM is a EPDM rubber hose specifically engineered for application on peristaltic pumps.

Excellent for conveying a wide range of chemicals* and corrosive liquids.

(*) Please contact the MTG Technical Sales Department to check the chemical compatibility with the products.

More details

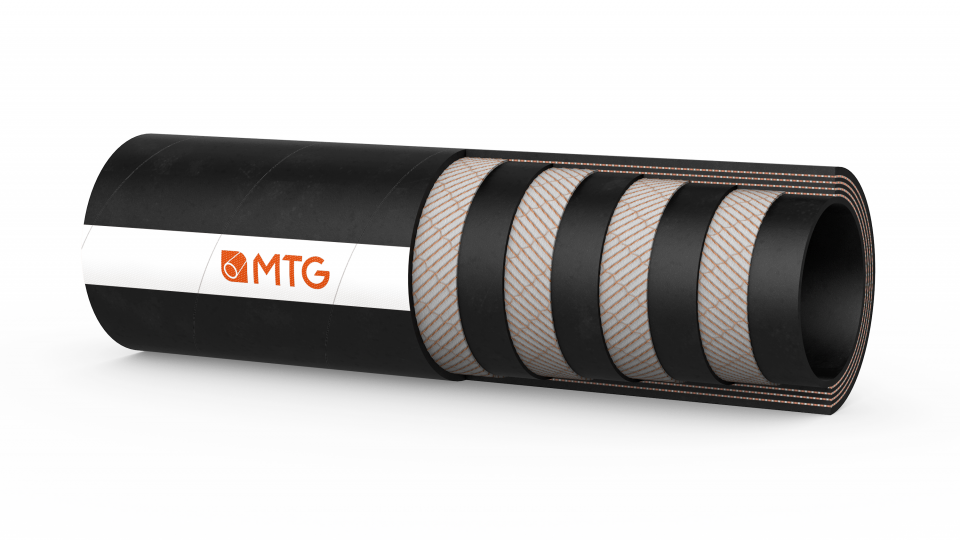

Construcion

TUBE

  • EPDM rubber, black colour, smooth.

REINFORCEMENT

  • Plies of synthetic cord.

COVER

  • EPDM rubber, black colour, smooth, cloth finish.
  • Version available with ground cover: MTG-PERISTALTIC/EPDM/Ret.

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • From -10°C to +100°C depending on medium.

Note

  • For any further information concerning technical features, hoses producted from other types of synthetic rubber, hose solutions available and chemical compatibility with the products conveyed, please contact MTG Sales Department.
  • Normally supplied in service lengths.
  • Inner diameter, wall thickness and length are defined by the peristaltic pump manufacturer.
  • Without any marking or marking on demand.
  • Without any marking for the version with ground cover.

Working pressure

  • 10 bar.

Dimensional tollerance

For sizes and colours available, please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
