PERISTALTIC/NR

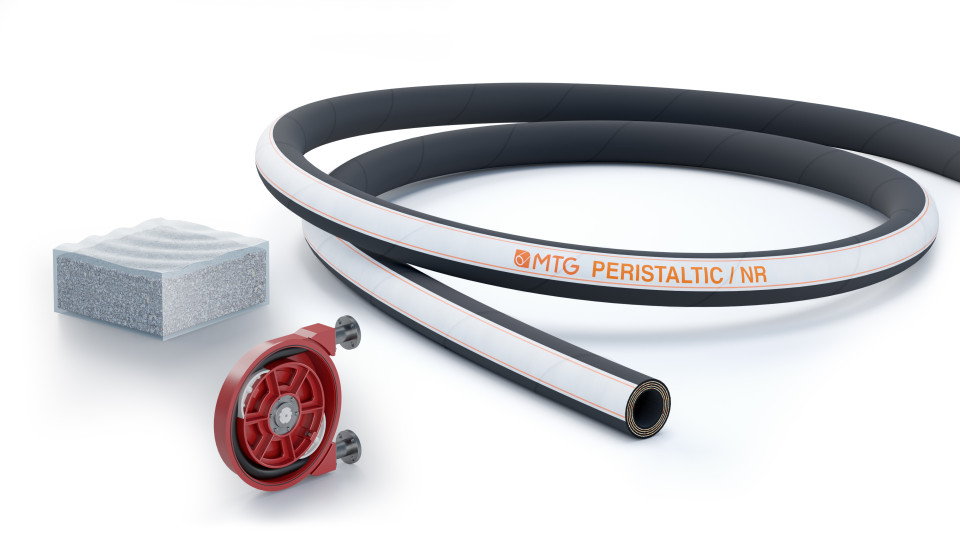

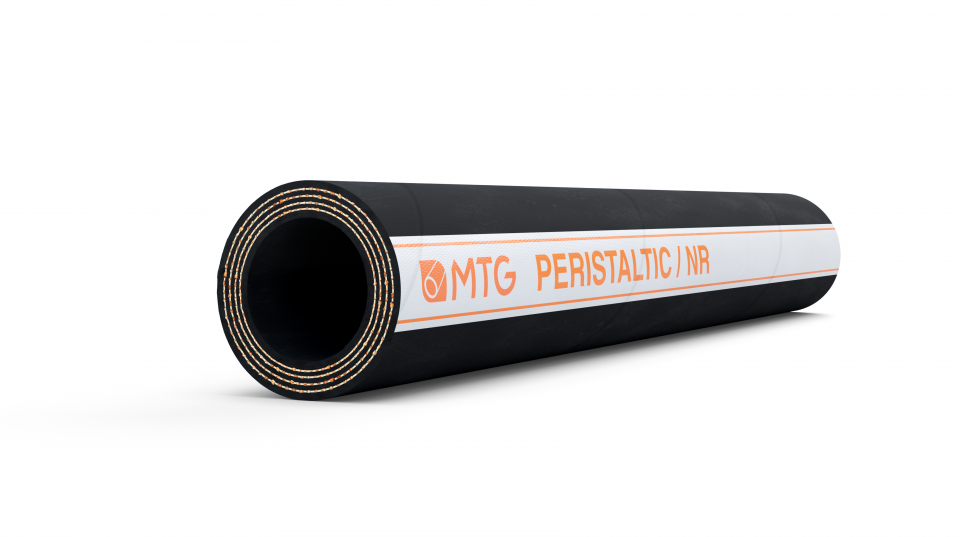

PERISTALTIC/NR is a NR rubber hose specifically engineered for application on peristaltic pumps.

Excellent for conveying abrasive, non aggressive fluids and liquids with suspended solids.

Used for most applications and especially in the construction sector.

More details
Contact us
Data sheet

Main benefits

  • Excellent mechanical performance.

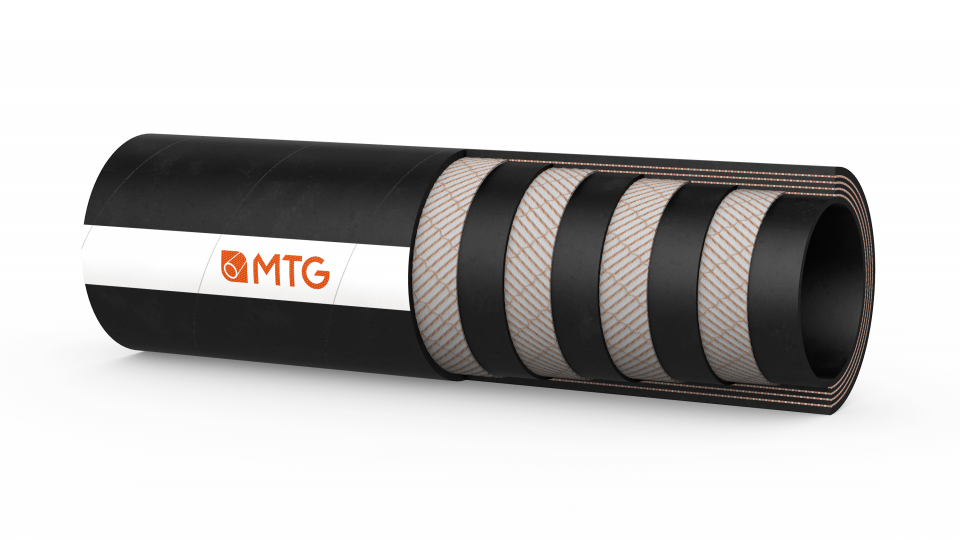

Construcion

TUBE

  • NR rubber, black colour, smooth.

REINFORCEMENT

  • Plies of synthetic cord.

COVER

  • NR rubber, black colour, smooth, cloth finish.
  • Version available with ground cover: MTG-PERISTALTIC/NR/Ret.

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • From -10°C to +80°C depending on medium.

Note

  • For any further information concerning technical features, hoses producted from other types of synthetic rubber, hose solutions available and chemical compatibility with the products conveyed, please contact MTG Sales Department.
  • Normally supplied in service lengths.
  • Inner diameter, wall thickness and length are defined by the peristaltic pump manufacturer.
  • Without any marking or marking on demand.
  • Without any marking for the version with ground cover.

Working pressure

  • 10 bar.

Dimensional tollerance

For sizes and colours available, please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
