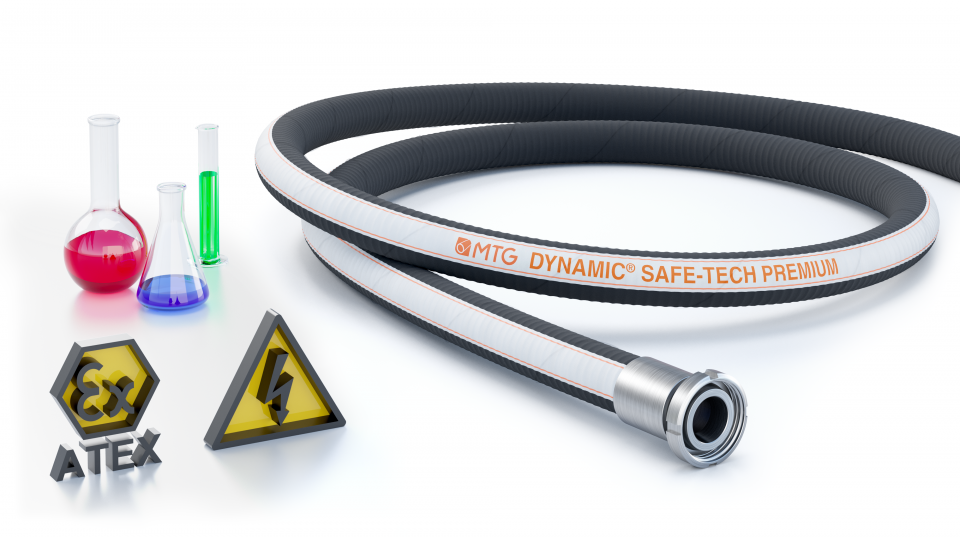

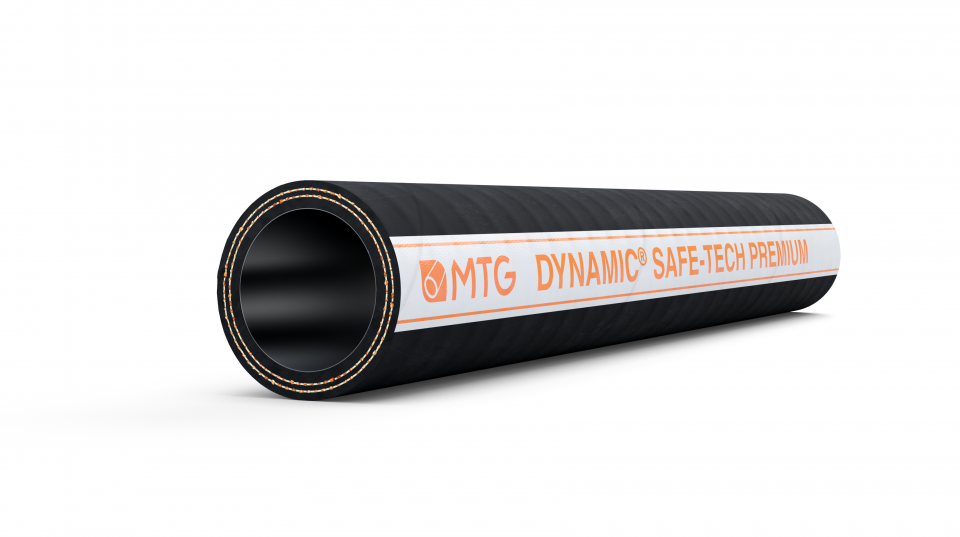

MTG DYNAMIC® SAFE-TECH PREMIUM
MTG DYNAMIC® SAFE-TECH PREMIUM is a flexible multipurpose hose “Full Ohm” for working areas requiring utmost safety.
Perfect technical solution for handling cosmetic, pharmaceutical and highly flammable chemical products.
Execution complying with EN 12115: 2011.
Engineered to ensure dissipation of electrostatic charges not only on the surfaces (tube and cover R< 10^6 Ω) but also through the hose wall (R< 10^9 Ω).
PATENT: E.P. 1450092
Main benefits
- The fluorinated inner liner ensures utmost chemical and temperature resistance, excellent impermeability and contamination-free transport of the fluid conveyed.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to EC 1907/2006 (REACH).
- Non-plasticized inner tube.

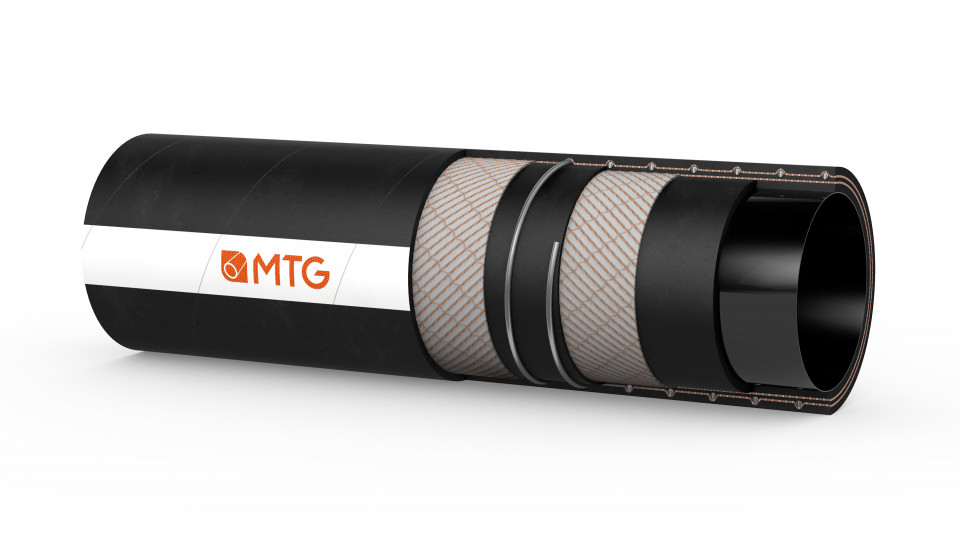

Construcion
TUBE
- PFA (Perfluoralcoxy), fully fluorinated, mirror-smooth, black colour, antistatic (R< 10^6 Ω), patented.
- Compliance: USP Class VI, FDA Standards, Regulation EU n. 10/2011, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Copper wires on request.
COVER
- Synthetic rubber, black colour, resistant to abrasion and ageing, antistatic (R< 10^6 Ω); smooth, cloth finish.
Safety factors
- ≥ 4 times working pressure.
Temperatures
- In accordance with EN 12115: 2011.
- Steam disinfection with peaks up to +164°C for max. 20 minutes.
Note
- We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.
- Not autoclavable.
Electric properties
- Electrical resistance through the hose wall: R < 10^9 Ω.
- Identification symbol:
– Ω/T for version without copper wires;
– M/T for version with copper wires.
Marking
Dimensional tollerance
I.D.: EN 12115 – Wall thickness: EN 12115 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 13 | 25 | 6 | 10 | 40 | 135 | -0,9 | 0,51 | 20 |
| 19 | 31 | 6 | 10 | 40 | 188 | -0,9 | 0,67 | 30 |
| 25 | 37 | 6 | 10 | 40 | 225 | -0,9 | 0,88 | 30 |
| 32 | 45 | 6,5 | 10 | 40 | 262 | -0,9 | 1,16 | 30 |
| 38 | 51 | 6,5 | 10 | 40 | 338 | -0,9 | 1,43 | 30 |
| 51 | 65,5 | 7,25 | 10 | 40 | 412 | -0,9 | 1,95 | 30 |
| 63,5 | 79,5 | 8 | 10 | 40 | 450 | -0,9 | 2,75 | 20 |
| 76 | 92 | 8 | 10 | 40 | 525 | -0,9 | 3,2 | 20 |
| 100 | 117 | 8,5 | 10 | 40 | 700 | -0.9 | 4,6 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1/2 | 0,98 | 150 | 600 | 5,31 | -26,57 | 0,34 | 65,6 |
| 3/4 | 1,22 | 150 | 600 | 7,4 | -26,57 | 0,45 | 98,4 |
| 1 | 1,46 | 150 | 600 | 8,86 | -26,57 | 0,59 | 98,4 |
| 1 1/4 | 1,77 | 150 | 600 | 10,31 | -26,57 | 0,78 | 98,4 |
| 1 1/2 | 2,01 | 150 | 600 | 13,31 | -26,57 | 0,96 | 98,4 |
| 2 | 2,58 | 150 | 600 | 16,22 | -26,57 | 1,31 | 98,4 |
| 2 1/2 | 3,13 | 150 | 600 | 17,72 | -26,57 | 1,84 | 65,6 |
| 3 | 3,62 | 150 | 600 | 20,67 | -26,57 | 2,15 | 65,6 |
| 3 15/16 | 4,61 | 150 | 600 | 27,56 | -26,57 | 3,09 | 65,6 |
(*) In case of dynamic application please contact our Technical Dept.
Above technical data are referring to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
