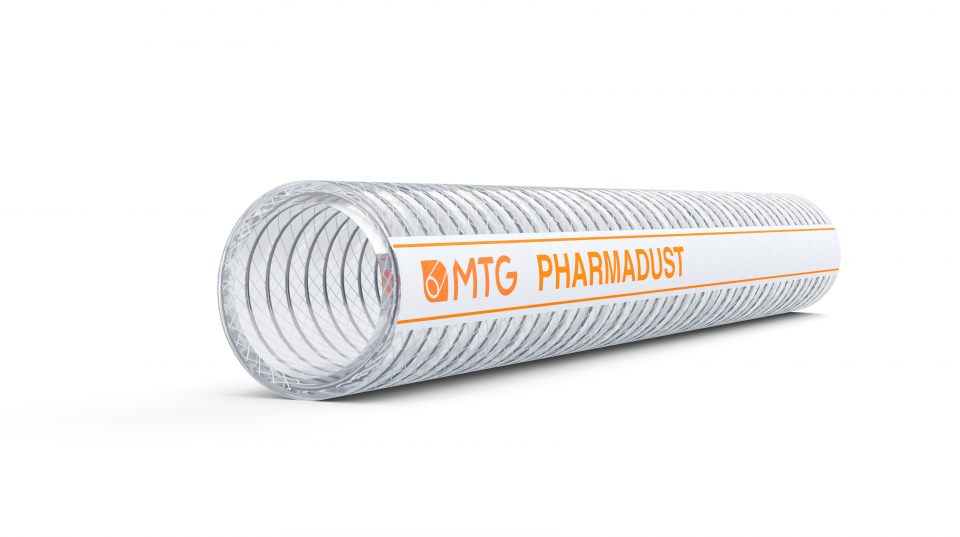

MTG PHARMADUST

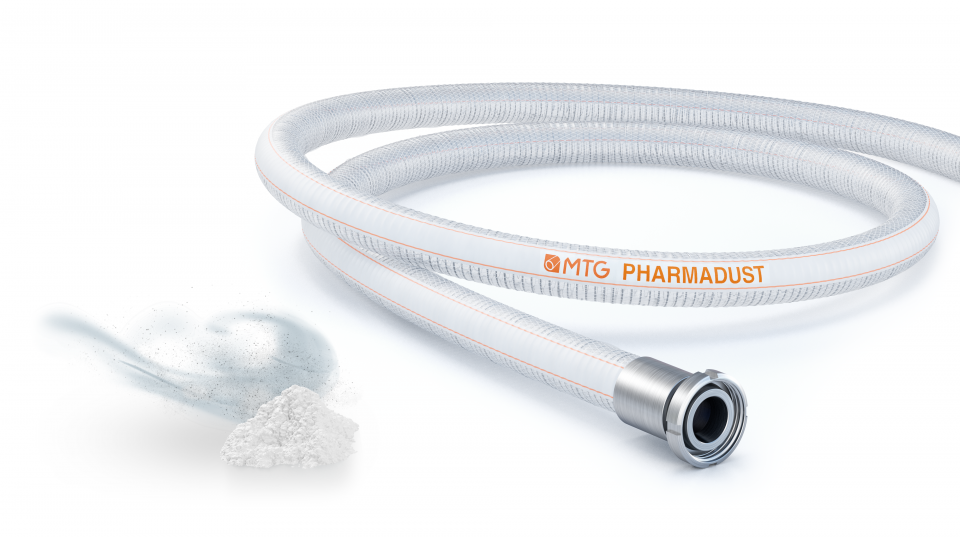

Suction and delivery hose, specifically designed for conveying air mixed with powders.
Normally used in the pharmaceutical and food industry.
Main benefits
- The inner surface of the hose, smooth and compact, makes easy the flow of the products conveyed and the cleaning operations.
- Excellent resistance to abrasion.
- See-through construction for easy visual inspection of the media conveyed.
- Light and easy to handle.
- Hose in accordance with the Regulations EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG productive cycle does not employ phthalates, plasticizers, animal derived ingredients, and nitrosamines, thus reducing the risk of bacterial growth and contamination of the product conveyed.
- Non-plasticized hose.
- Tube and cover: USP Class VI, Regulation EU n. 10/2011, FDA, D.M. 21/03/73 and following amendments, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5.

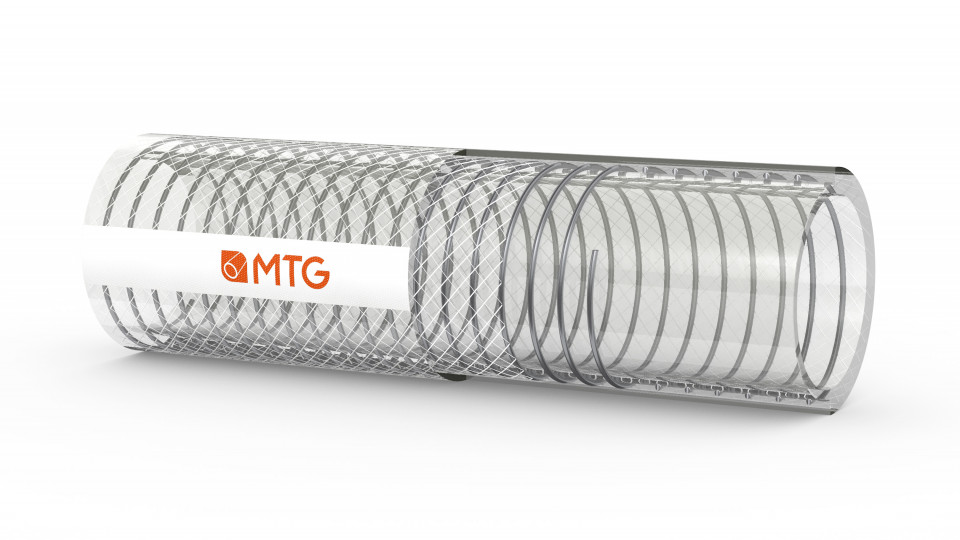

Construcion
TUBE
- Technopolymer (code 3G26AU), fully see-through, odourless and tasteless, mirror-smooth.
- Abrasion loss: < 36 mm3 according to DIN 53516.
REINFORCEMENT
- High strength plies of synthetic cord.
- Stainless steel helix wire INOX AISI 302.
COVER
- Technopolymer (code 3G26AU), see-through, odourless and tasteless, smooth, glossy finish.
- Resistant to abrasion and ozone.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -10°C to +85°C.
- Cleaning with water (up to +100°C without pressure) mixed with a normal mild cleaning product.
Fitting

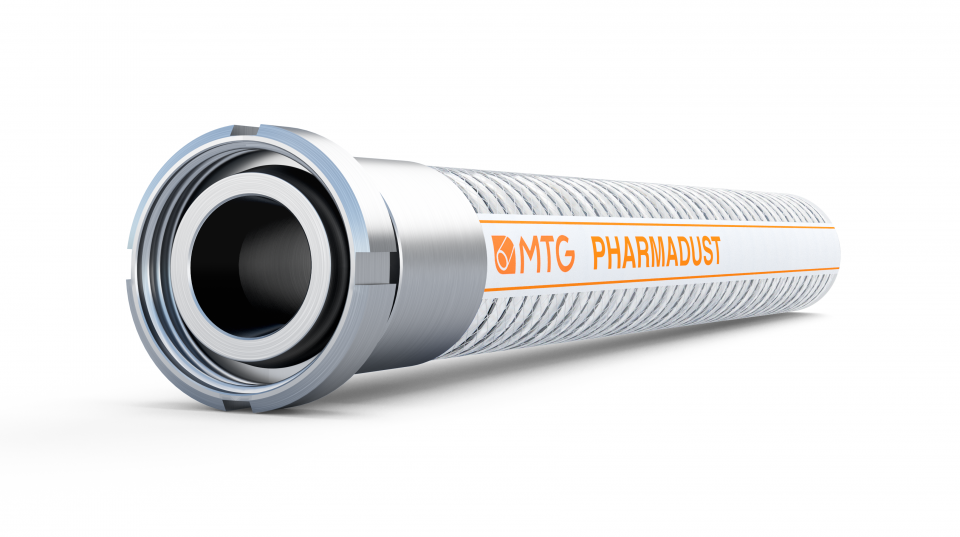

- The hose may be supplied in application lengths, assembled with any kind of couplings (CLAMP, DIN 11851, etc.).
- Only for hose assemblies: test of electrical continuity between the couplings (R<102 Ω) according to EN 8031.
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 25 | 33 | 4 | 6 | 18 | 150 | -0,9 | 0,38 | 20 |
| 38 | 46 | 4 | 6 | 18 | 230 | -0,9 | 0,54 | 20 |
| 50 | 58,5 | 4,25 | 5 | 15 | 300 | -0,9 | 0,98 | 20 |
| 63,5 | 72 | 4,25 | 4 | 12 | 400 | -0,9 | 1,24 | 10 |
| 76 | 85 | 4,5 | 4 | 12 | 490 | -0,8 | 1,63 | 10 |
| 100 | 112 | 6 | 3 | 9 | 700 | -0,8 | 2,48 | 10 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius. inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1 | 1,3 | 90 | 270 | 5,91 | -26,57 | 0,25 | 65,6 |
| 1 1/2 | 1,81 | 90 | 270 | 9,06 | -26,57 | 0,36 | 65,6 |
| 1 31/32 | 2,3 | 75 | 225 | 11,81 | -26,57 | 0,66 | 65,6 |
| 2 1/2 | 2,83 | 60 | 180 | 15,75 | -26,57 | 0,83 | 32,8 |
| 3 | 3,35 | 60 | 180 | 19,29 | -23,62 | 1,09 | 32,8 |
| 3 15/16 | 4,41 | 45 | 135 | 27,56 | -23,62 | 1,66 | 32,8 |
Other sizes and colours are available upon request. Please contact our Sales Dept. Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
