CORD/46N-AB

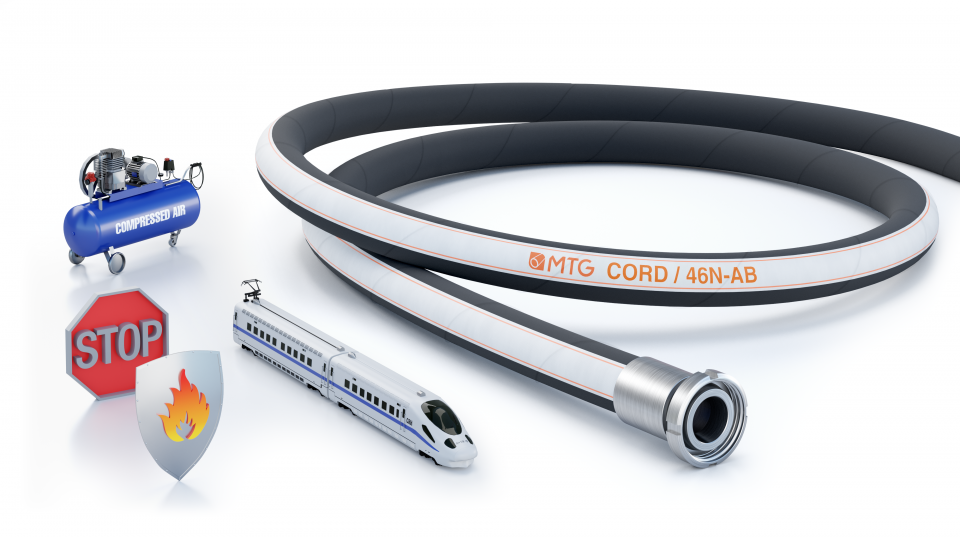

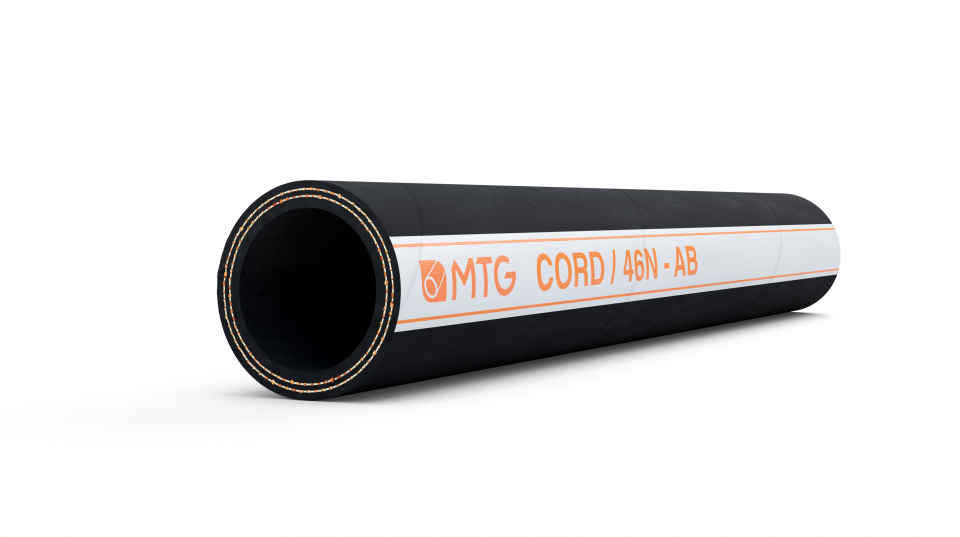

CORD/46N-AB is a rubber hose for coupling or connecting continuous pneumatic brake lines of railway or tramway vehicles.

More details
Contact us

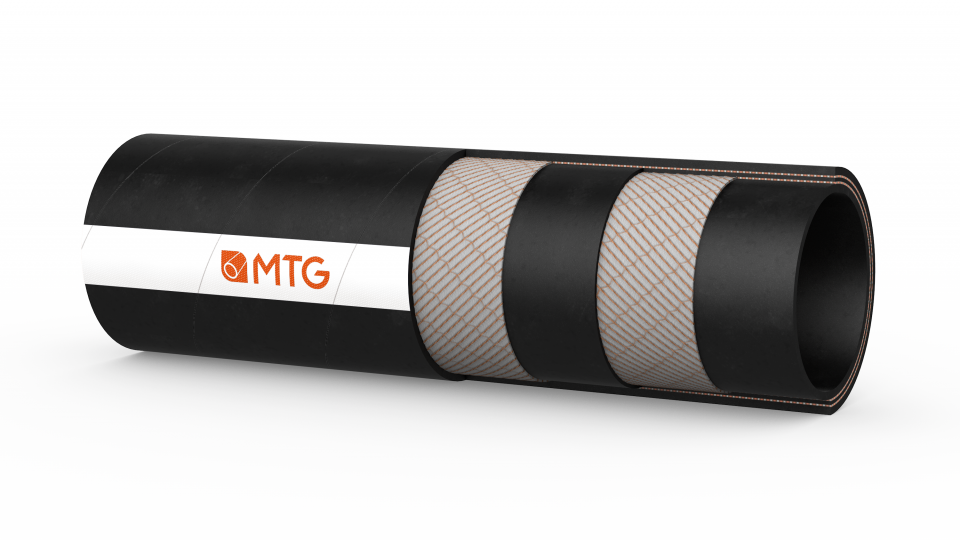

Construcion

Hose manufactured with MTG rubber code 46N.

TUBE

  • Synthetic rubber, self-extinguishing, smooth, black colour, resistant to contact with fats and mineral oils.

REINFORCEMENT

  • Polyester plies.

COVER

  • Synthetic rubber, self-extinguishing, smooth, cloth finish, black colour, resistant to ozone, weather and contact with fats and mineral oils.

Temperatures

  • From -30°C up to +100°C.

Note

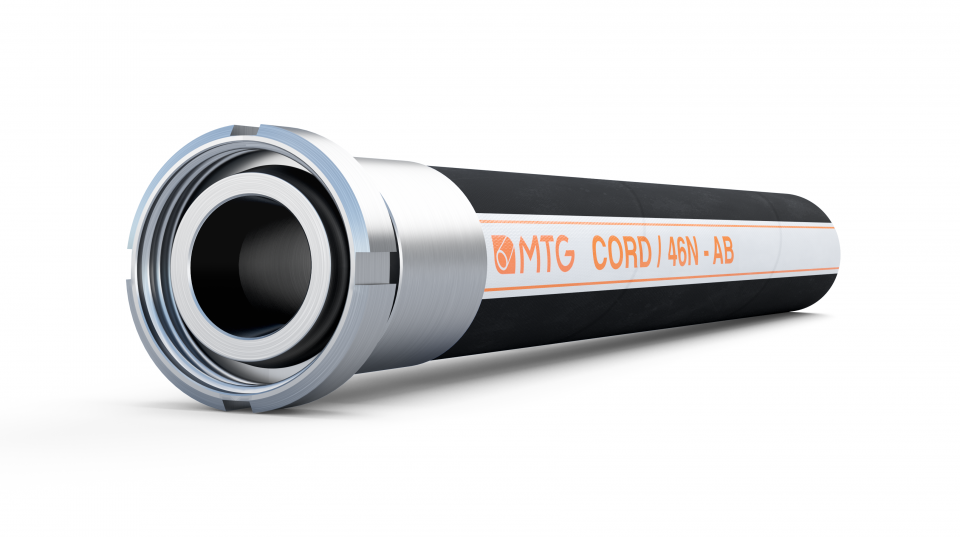

  • The hoses may also be supplied in service lengths (see lengths here below) with flared ends or assembled according to the customer’s request.

Norms compliance and Certifications

  • UNI EN 45545-2:2015 (fire testing of materials and components for trains): HL2 for internal (R22) and external (R23) e HL3 for external (R23).
  • Italian Railway Standards S.T. FS 373407.6.
  • UNI 4645.
  • UNI CEI 11170-3/05 (Reaction to fire): complies with all risk levels up to LR4 included.
  • ASTM C 542 and CEI 20-35 (Reaction to fire).
  • NF X 10-702 – 1 and 2 (Low opacity of fumes).
  • NF X 70-100 – 1 and 2 (Low toxicity of gases).
  • EN 11925-2/2002 (fire reaction with a single ignition source).
  • EN ISO 15540 as mentioned by EN 50553/A1 2016 par. 6.3.2.3 (running capability).
  • Certificate “LAPI No. 412.1IS0040/18 dated 12/03/2018”, test method: EN 45545-2:2015.

Dimensional tollerance

Come indicato nella S.T. FS 373407.6.

Chemical resistance acc. to MTG Chemical Resistance Chart.
Sizes and colours are available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
