CORD/CAVI/SIL-NA/8

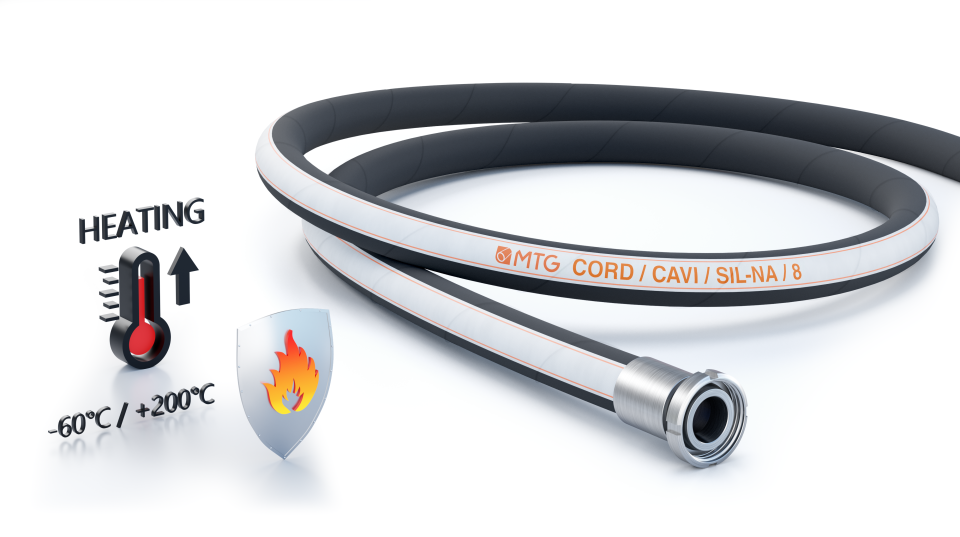

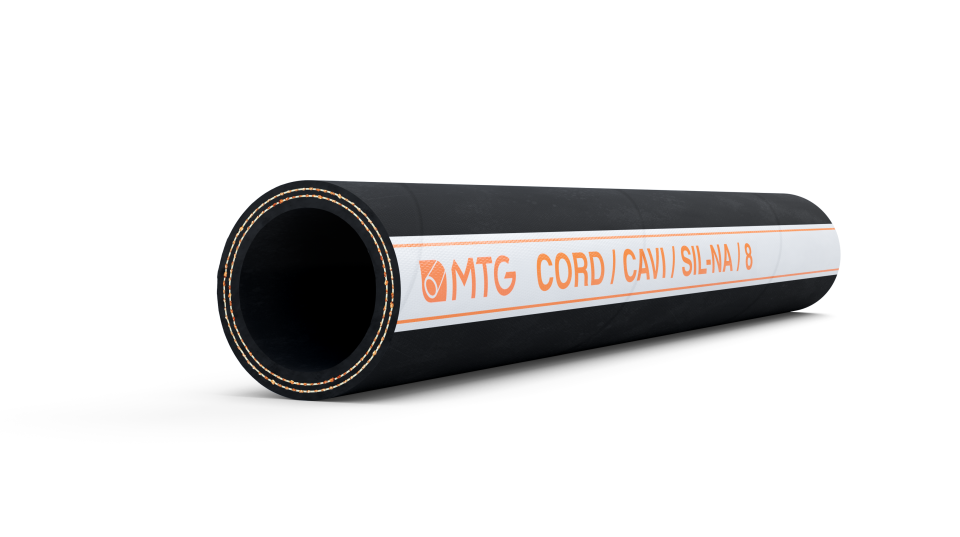

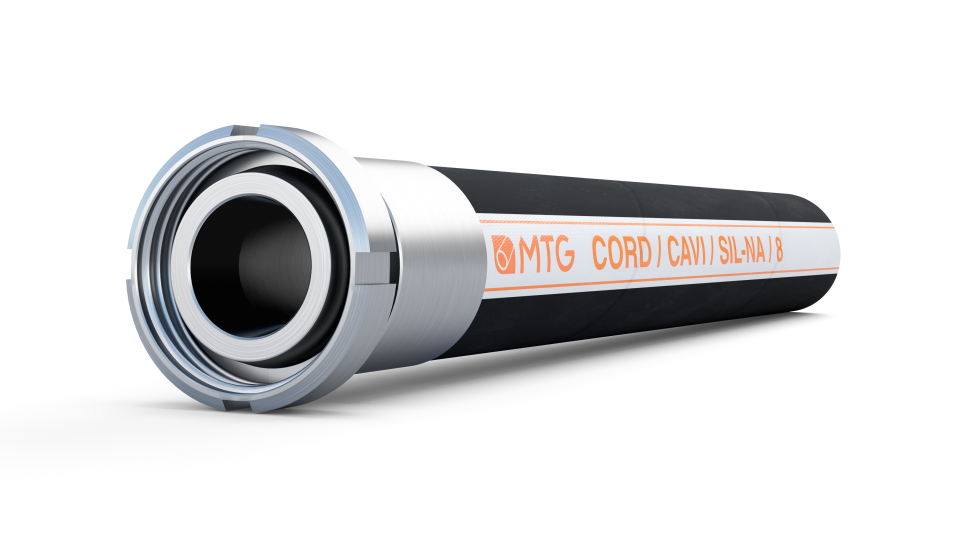

CORD/CAVI/SIL-NA/8 is a rubber hose for cooling water circulation in the engines.

Designed for the heating of cabs and wagons of railcars, water inlet and discharge from the engine to the boiler, three-way-piping, transport of cooling water to the gearbox system.

Good resistance to mineral oil mist.

More details

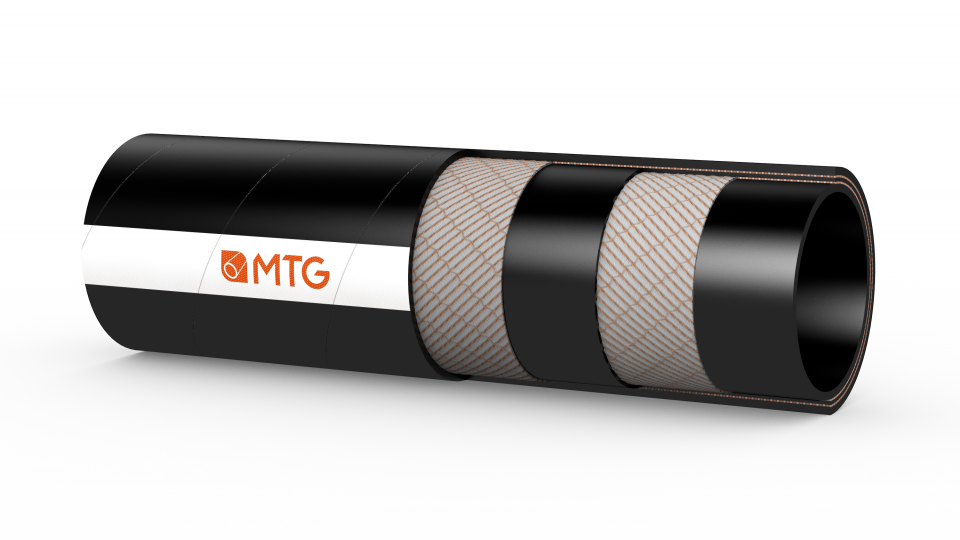

Construcion

TUBE

Silicone rubber, self-extinguishing, black colour, smooth.

REINFORCEMENT

Tear resistant plies of synthetic cord.

COVER

Silicone rubber, black, smooth, self-extinguishing, cloth finish.

Temperatures

From -60°C up to +200°C.

Note

DIELECTRIC STRENGTH

≥ 5000 V/mm.

Norms Compliance

  • UNI EN 45545-2:2015 (fire testing of materials and components for trains): HL2 for R22 and HL3 for R23.
  • Italian Railway Standards ST 374208.0.
  • Fire reaction according to UNI CEI 11170-3/05.
  • Flame retardant according to ASTM C 542 and CEI 20-35.
  • Low opacity of fumes according to NF X 10-702-1 and 2.
  • Low toxicity of gases according to NF X 70-100-1 and 2.
  • EN 11925-2/05 “Test of fire reaction with a single ignition source”.

Dimensional tollerance

Diametro interno: ISO 1307 – Spessore parete: DIN 7715 T4 S2 – Lunghezza: ISO 1307

Chemical resistance acc. to MTG Chemical Resistance Chart. Sizes and colours are available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
