MANICHEM/SD-EPM

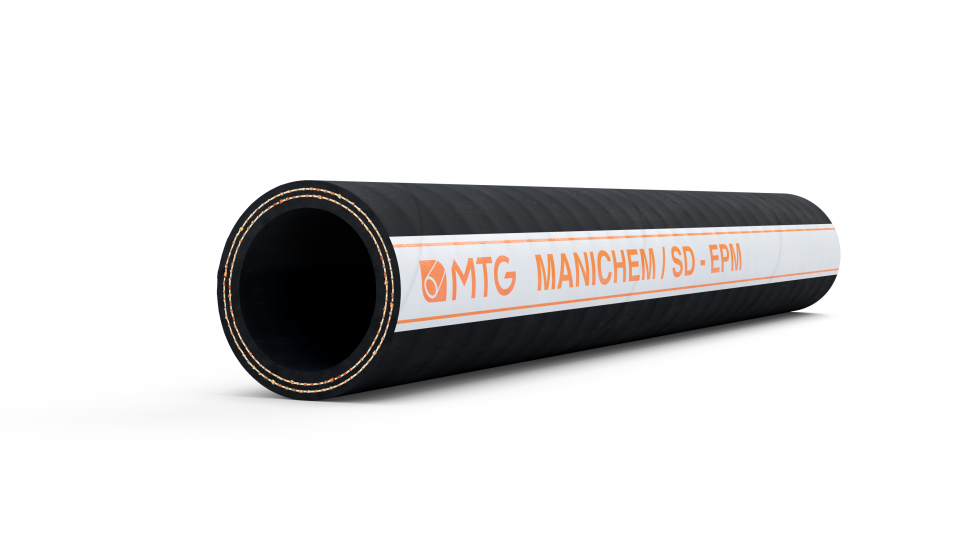

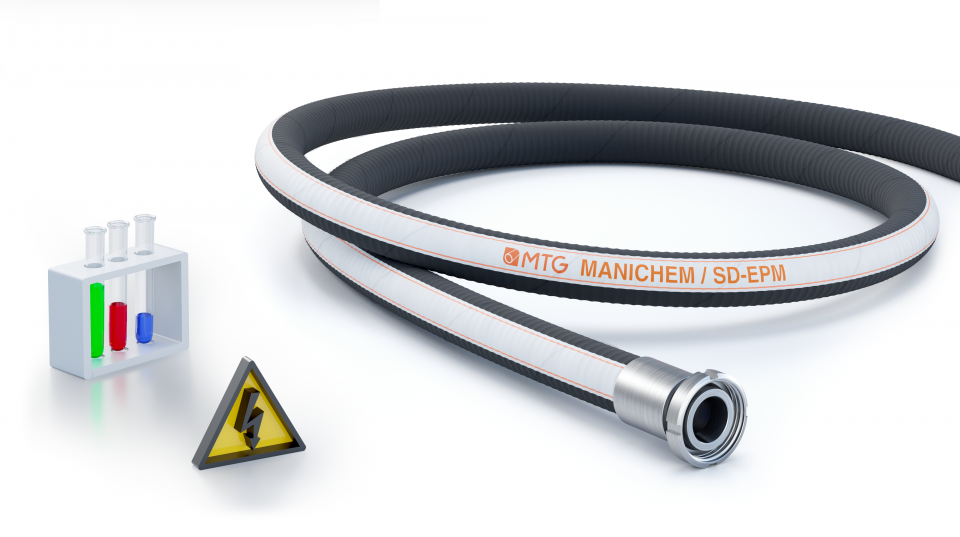

MANICHEM/SD-EPM is a suction and delivery hose for conveying chemicals with high concentration.

Execution in accordance with EN 12115:2011.

More details
Contact us
Data sheet

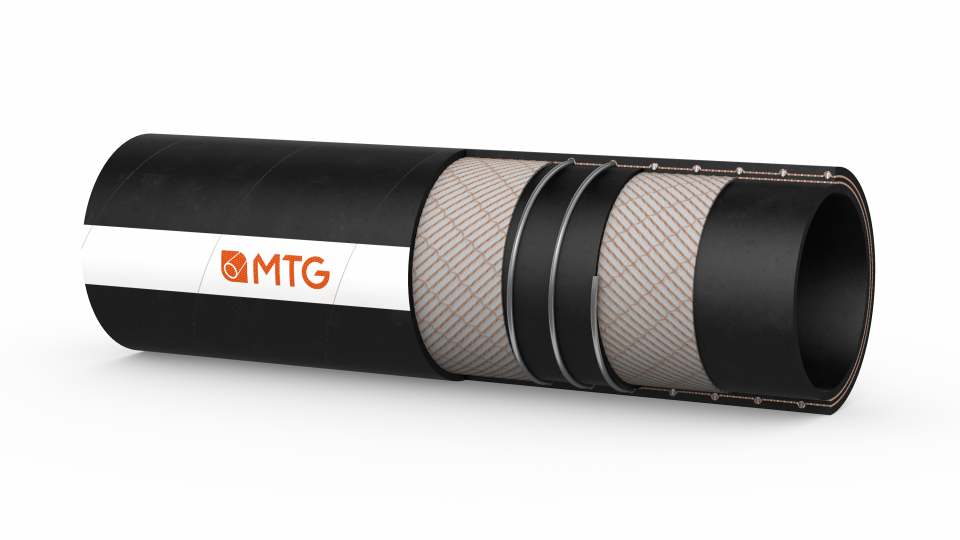

Construcion

TUBE

  • EPM rubber (code 660N), antistatic (R < 10^6 Ω), black colour, smooth, free from nitrosamines.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Built-in copper wires on request.

COVER

  • EPDM rubber (code 104N), black colour, antistatic (R < 10^6 Ω), resistant to abrasion, ozone and weather, smooth, cloth finish.

Safety factors

  • ≥ 4 times working pressure up to DN 75 mm.
  • ≥ 3 times working pressure over DN 75 mm.

Temperatures

  • In accordance with EN 12115:2011.
  • Resistance to steam up to +130°C for max. 30 minutes.

Note

Why should you prefer EPM to EPDM?

  • EPM provides higher resistance to oxidizing acids.
  • EPM provides a better chemical resistance to high temperatures: when conveying acetone, alcohol, ester and acids, it is more resistant to the fluids thanks to its impermeable inner tube and compact structure.
  • EPM offers better compression set values, thus making the assembly with fittings safer for chemical applications.

Electrical properties

  • Identification symbol:
    – Ω/T for version without copper wires.
    – M/T for version with copper wires.

Marking

Dimensional tollerance

I.D.: EN 12115 – Ext.D.: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6 16 64 125 -0,9 0,7 40
25 37 6 16 64 150 -0,9 0,8 40
32 44 6 16 64 175 -0,9 1 40
38 51 6,5 16 64 225 -0,9 1,26 40
50 66 8 16 64 275 -0,9 2,1 40
51 67 8 16 64 275 -0,9 2,15 40
63,5 79,5 8 16 64 300 -0,9 2,6 40
75 91 8 16 64 350 -0,8 3,05 40
76 92 8 16 48 350 -0,8 3,1 40
100 118 9 16 48 450 -0,8 4,95 40
102 120 9 16 48 450 -0,8 5 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
3/4 1,22 240 960 4,92 -26,57 0,47 131,2
1 1,46 240 960 5,91 -26,57 0,54 131,2
1 1/4 1,73 240 960 6,89 -26,57 0,67 131,2
1 1/2 2,01 240 960 8,86 -26,57 0,85 131,2
1 31/32 2,6 240 960 10,83 -26,57 1,41 131,2
2 2,64 240 960 10,83 -26,57 1,44 131,2
2 1/2 3,13 240 960 11,81 -26,57 1,74 131,2
2 61/64 3,58 240 960 13,78 -23,62 2,05 131,2
3 3,62 240 720 13,78 -23,62 2,08 131,2
3 15/16 4,65 240 720 17,72 -23,62 3,32 131,2
4 4,72 240 720 17,72 -23,62 3,35 131,2

Resistance: according to MTG Chemical Resistance Chart.
Above technical data are based on application at room temperature (+20°C). Other sizes and colours are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
