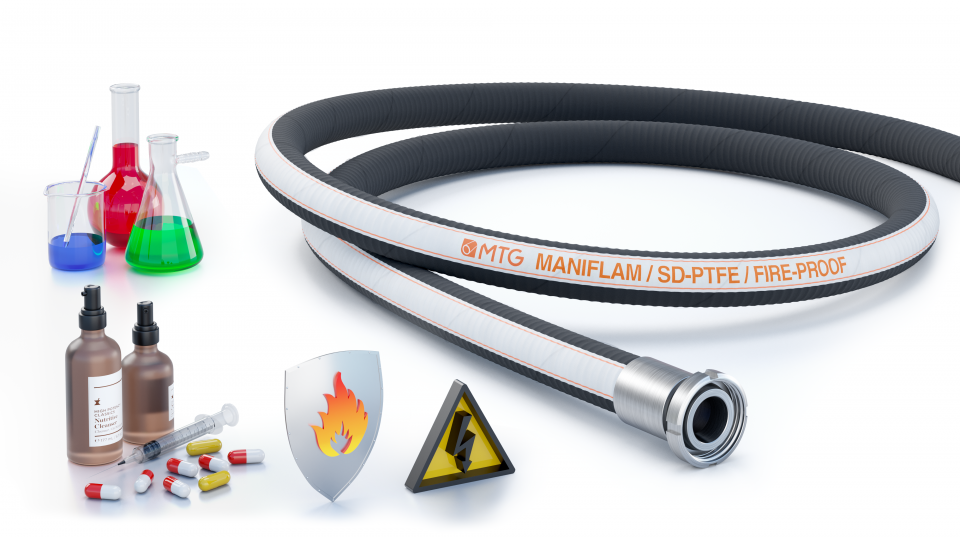

MANIFLAM/SD-PTFE/FIRE-PROOF

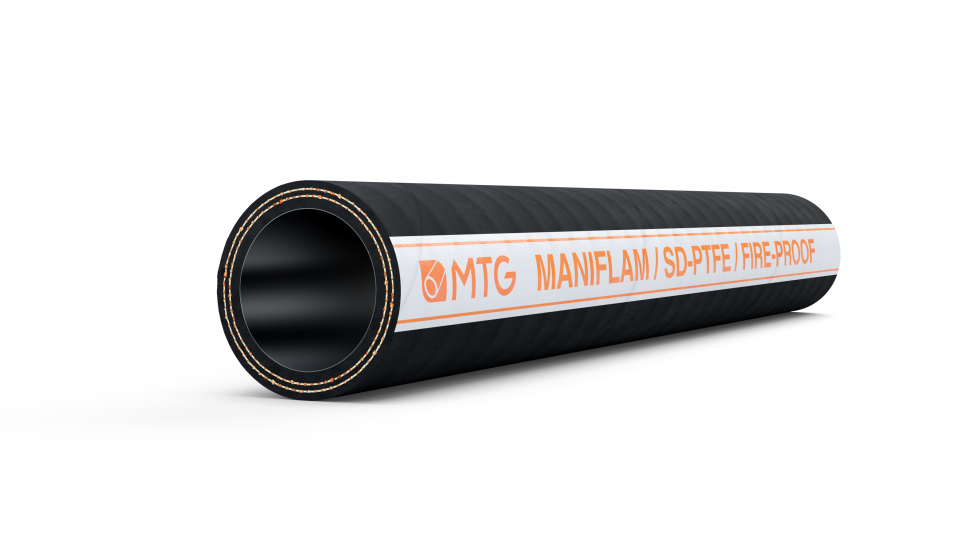

Flexible multipurpose hose “Full Ohm” designed to handle pharmaceutical products and highly flammable chemicals in working areas requiring utmost safety.

Execution in accordance with EN 12115: 2011 and TRbF 131/2.

MANIFLAM complies with the requirements of UL 94 V0, EN 45545-2:2013 for Hazard Levels HL1 requirement set R22 and HL1 – HL2 requirement set R23.

Engineered to ensure dissipation of electrostatic charges not only on the surfaces (tube and cover R<106 Ω) but also through the hose wall (R<10^9 Ω).

Suitable to work in potentially explosive areas (Ex-zones).

More details
Contact us
Data sheet

Main benefits

  • The inner liner ensures utmost chemical and temperature resistance, excellent impermeability, as well as contamination-free transport of the fluid conveyed.
  • Hose in accordance with 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

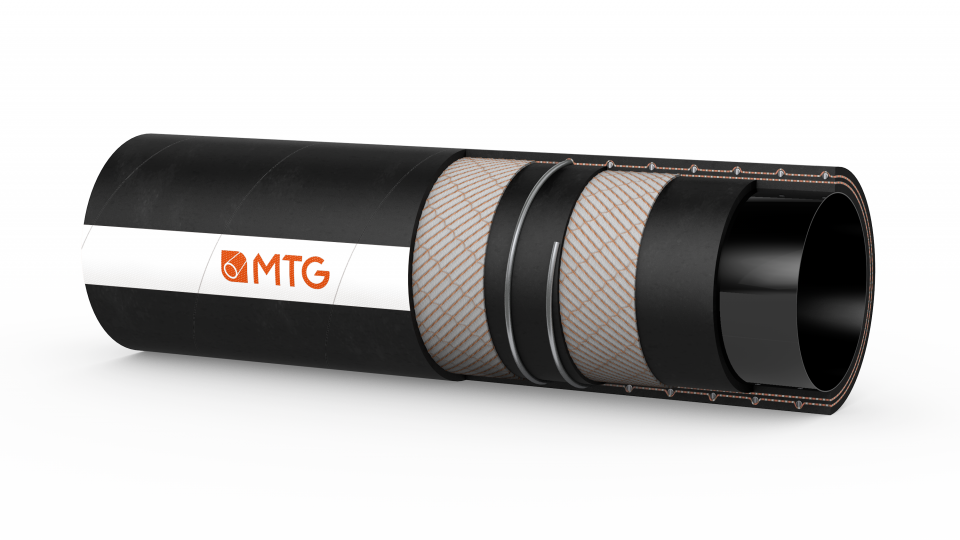

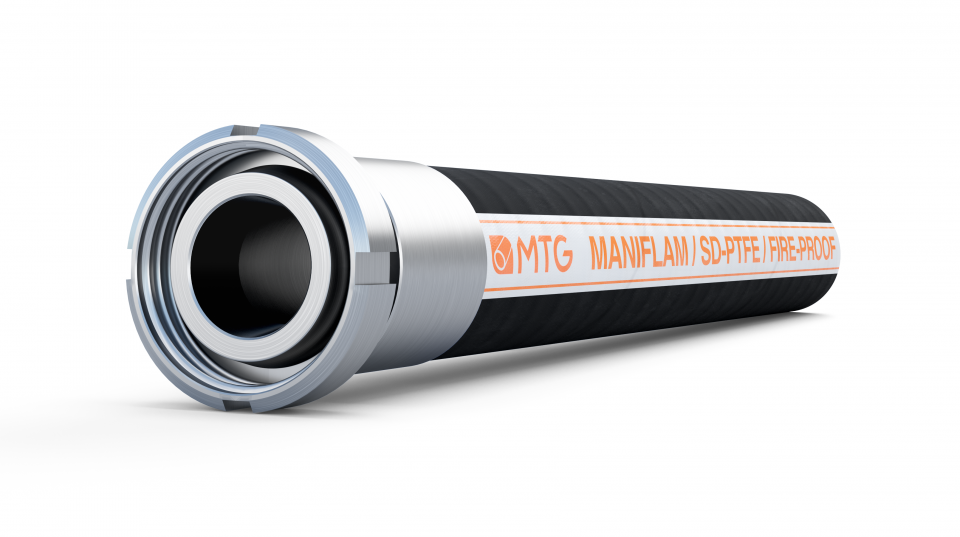

Construcion

TUBE

  • PTFE liner (Polytetrafluoroethylene, code PTFE BC) liner, black colour, antistatic.
  • Complying with FDA, USP Class VI, ISO 10993-4, non-cytotoxic according to ISO 10993-Part 5.

REINFORCEMENT

  • Plies of synthetic cord and embedded steel helix wire.

COVER

  • Silicone rubber, black colour, antistatic (R<106 Ohm), resistant to abrasion and ageing, smooth, cloth finish.

REACTION TO FIRE (COVER)

  • Flame retardant in accordance with the standard EN ISO 4589-2: HL 3 with ref. to EN 45545-2:2013.
  • Low opacity of fumes in accordance with the standard EN ISO 5659-2: HL 1 with ref. to EN 45545-2:2013.
  • Low toxicity of gases in accordance with the standard NF X 70-100-1/-2: HL 3 with ref. to EN 45545-2:2013.
  • Flame resistance according to EN 12115.
  • The flame resistance is exceeding the requirements of the EN 12115 – Annex E (at least 5 times the testing time required by the Norm).

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • In accordance with EN 12115: 2011.
  • Sterilization with steam up to +150°C for max. 30 minutes.

Note

CERTIFICATIONS

Certificate “LAPI n°316.1IS0040/15 dated 20/03/2015” with the following compliance requirements concerning fire and fumes:

  • EN ISO 4589-2: HL 3 with ref. to EN 45545-2:2013.
  • EN ISO 5659-2: HL 1 with ref. to EN 45545-2:2013.
  • NF X 70-100-1/-2: HL 3 with ref. to EN 45545-2:2013.

Electrical properties

  • Electrical resistance through the hose wall: R < 10^9 Ω.
  • Identification symbol:
    – Ω/T for version without copper wires.
    – M/T for version with copper wires.

Marking

Dimensional tollerance

I.D.: EN 12115 – Ext.D.: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
9 31 6 16 64 188 -0,9 0,8 30
25 37 6 16 64 225 -0,9 1 30
32 44 6 16 64 262 -0,9 1,2 30
38 51 6,5 16 64 338 -0,9 1,47 30
50 66 8 16 64 410 -0,9 2,35 30
51 67 8 16 64 412 -0,9 2,38 30
63,5 79,5 8 16 64 450 -0,9 3,2 20
75 91 8 16 64 520 -0,9 3,75 20
76 92 8 16 64 525 -0,9 3,8 20
100 117 8,5 16 64 690 -0,9 5,2 20
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
3/4 1,22 240 960 7,4 -26,57 0,54 98,4
1 1,46 240 960 8,86 -26,57 0,67 98,4
1 1/4 1,73 240 960 10,31 -26,57 0,8 98,4
1 1/2 2,01 240 960 13,31 -26,57 0,99 98,4
1 31/32 2,6 240 960 16,14 -26,57 1,58 98,4
2 2,64 240 960 16,22 -26,57 1,6 98,4
2 1/2 3,13 240 960 17,72 -26,57 2,15 65,6
2 61/64 3,58 240 960 20,47 -26,57 2,52 65,6
3 3,62 240 960 20,67 -26,57 2,55 65,6
3 15/16 4,61 240 960 27,17 -26,57 3,49 65,6

(*) In case of dynamic application please contact our Technical Dept.
Above technical data are referring to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department.
