MANICHEM/SD-UPE

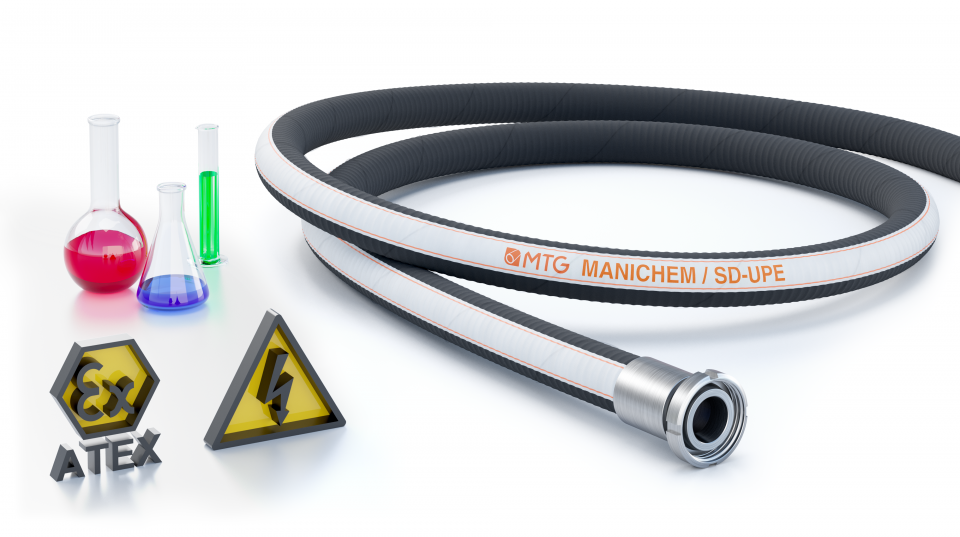

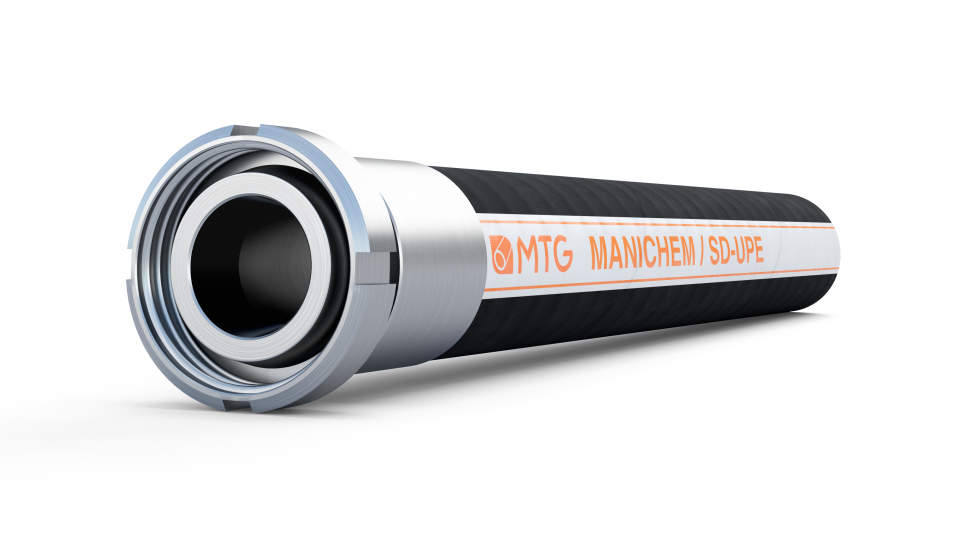

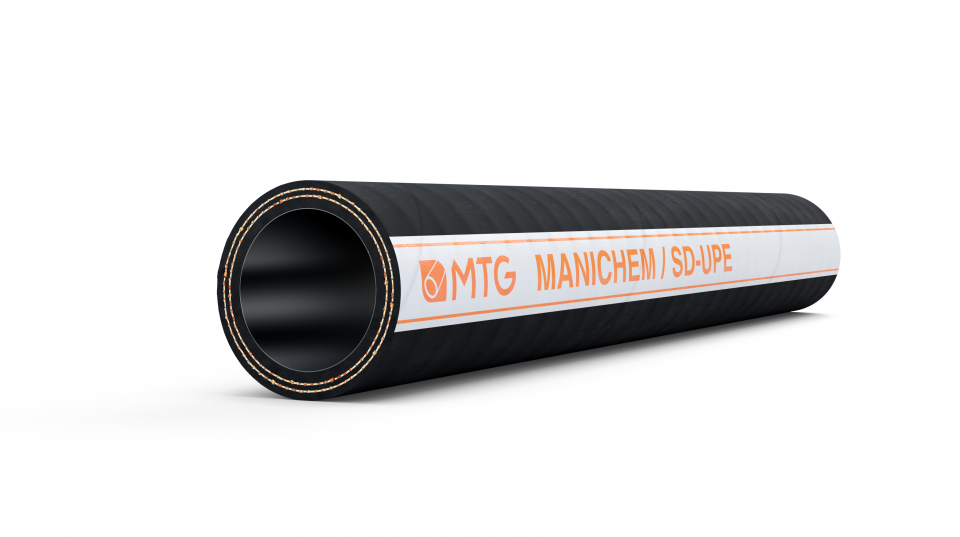

MANICHEM/SD-UPE is a multipurpose suction and delivery hose for conveying a wide range of aggressive chemicals.

Execution in accordance with EN 12115: 2011.

Engineered to ensure dissipation of electrostatic charges not only on the surface, but also through the hose wall (Electrical resistance: R< 109 Ω).

Hose approved by the Institute Ineris, attestation nr. INERIS-16-AM-339, for use in Atex areas.

More details
Contact us
Data sheet

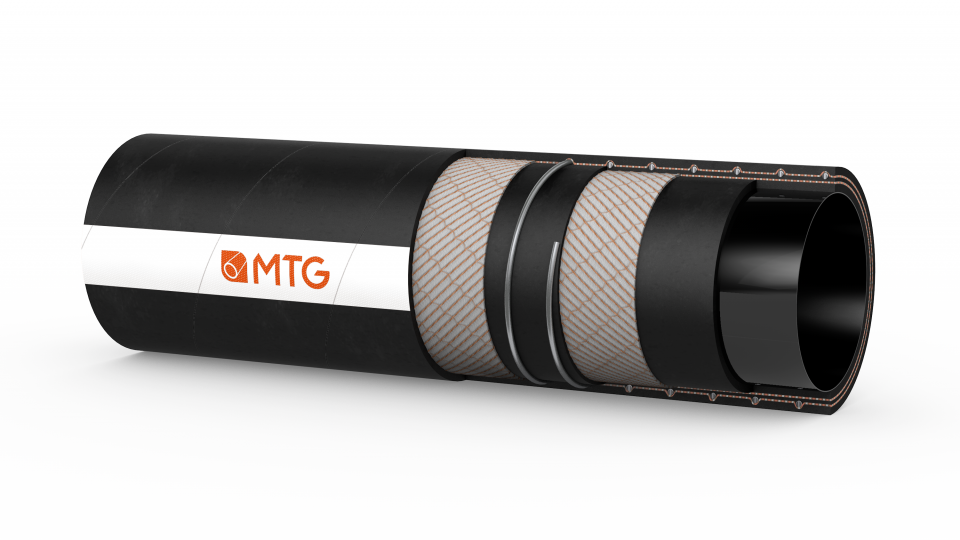

Construcion

TUBE

  • UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), antistatic (R<106 Ω), black, smooth.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Copper wires on request.

COVER

  • EPDM rubber (code 104N), black, antistatic (R<106 Ω), smooth, cloth finish, resistant to abrasion, ozone and weather.

Safety factors

  • ≥ 4 times working pressure up to DN 75 mm.
  • ≥ 3 times working pressure over DN 75 mm.

Temperatures

  • In accordance with EN 12115: 2011.
  • Resistance to steam up to +130°C for max. 30 minutes.

Note

Marking

Dimensional tollerance

I.D.: EN 12115 – Ext.D.: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6 16 64 125 -0,9 0,6 40
25 37 6 16 64 150 -0,9 0,8 40
32 44 6 16 64 175 -0,9 1 40
38 51 6,5 16 64 225 -0,9 1,3 40
50 66 8 16 64 275 -0,9 2 40
51 67 8 16 64 275 -0,9 2,05 40
63,5 79,5 8 16 64 300 -0,9 2,7 40
75 91 8 16 64 350 -0,8 3 40
76 92 8 16 48 350 -0,8 3,05 40
100 118 9 16 48 450 -0,8 4,9 40
102 120 9 16 48 450 -0,8 5 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
3/4 1,22 240 960 4,92 -26,57 0,44 131,2
1 1,46 240 960 5,91 -26,57 0,54 131,2
1 1/4 1,73 240 960 6,89 -26,57 0,67 131,2
1 1/2 2,01 240 960 8,86 -26,57 0,87 131,2
1 31/32 2,6 240 960 10,83 -26,57 1,44 131,2
2 2,64 240 960 10,83 -26,57 1,48 131,2
2 1/2 3,13 240 960 11,81 -26,57 1,74 131,2
2 61/64 3,58 240 960 13,78 -23,62 2,11 131,2
3 3,62 240 720 13,78 -23,62 2,15 131,2
3 15/16 4,65 240 720 17,72 -23,62 3,29 131,2
4 4,72 240 720 17,72 -23,62 3,35 131,2

Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C).

Other sizes are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
