MANICHEM/D-UPE

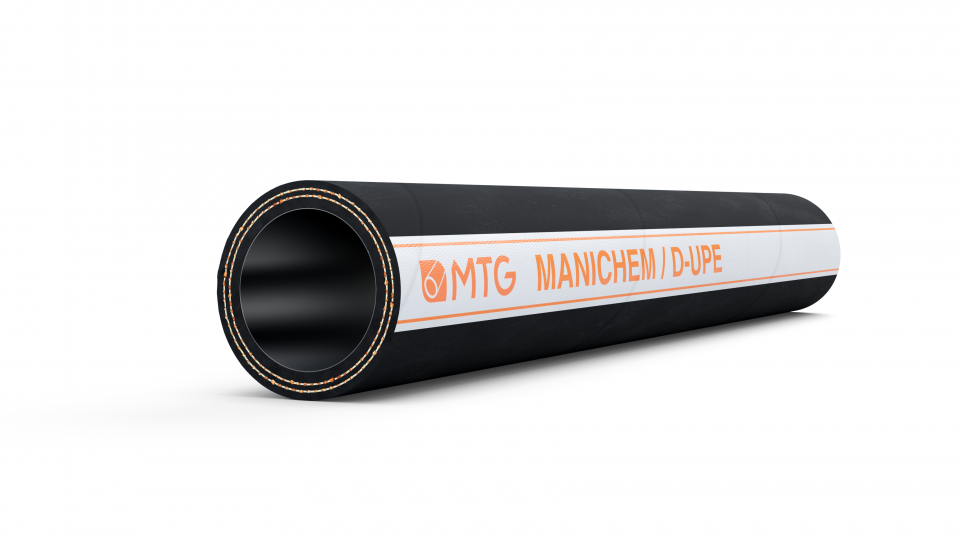

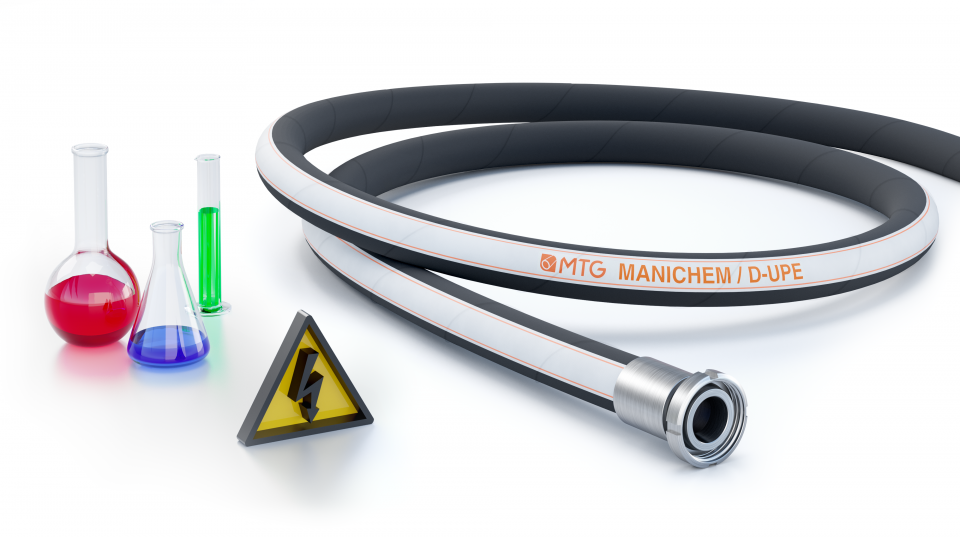

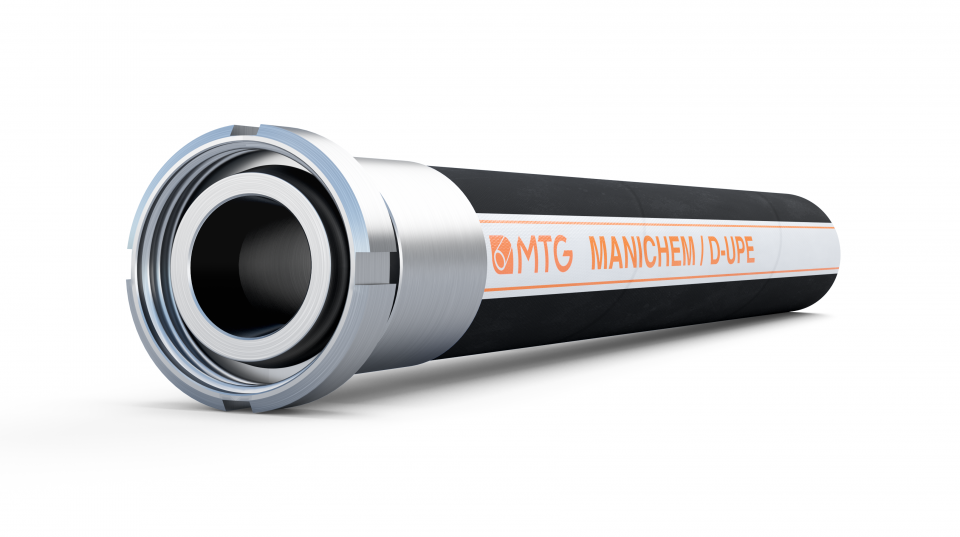

MANICHEM/D-UPE is a multipurpose delivery hose for conveying a wide range of aggressive chemicals.

Execution in accordance with EN 12115:2011.

Engineered to ensure dissipation of electrostatic charges not only on the surface, but also through the hose wall (Electrical resistance: R< 10^9 Ω).

More details
Contact us
Data sheet

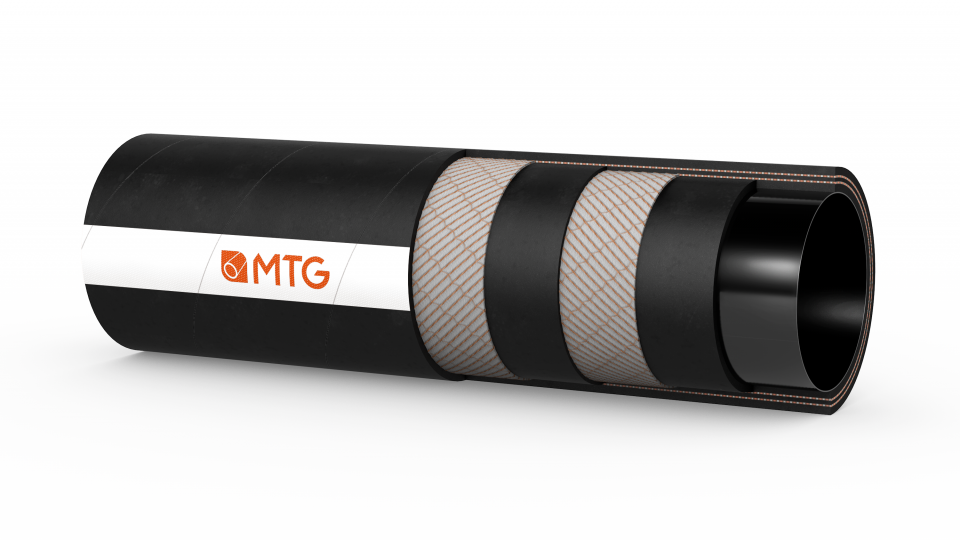

Construcion

TUBE

  • UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), antistatic (R< 10^6 Ω), black, smooth.

   REINFORCEMENT

  • High strength plies of synthetic cord.
  • Copper wires on request.

COVER

  • EPDM rubber (code 104N), black, antistatic (R <10^6 Ω), smooth, cloth finish, resistant to abrasion, ozone and weather.

Safety factors

  • ≥ 4 times working pressure

Temperatures

  • In accordance with EN 12115:2011.
  • Resistance to steam up to +130°C for max. 30 minutes.

Sterilization

NOTE

  • Disponibile versione con spirale metallica omologata dall’Istituto Ineris per utilizzo in zone Atex: MANICHEM/SD-UPE.

Electrical properties

  • Electrical resistance through the hose wall: R <10^9 Ω.
  • Identification symbol:
    – Ω/T for version without copper wires.
    – M/T for version with copper wires.

Marking

Dimensional tollerance

I.D.: EN 12115 – Ext.D.: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness.
mm		 Working pressure.
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
13 23 5 16 64 90 -0,5 0,35 40
19 31 6 16 64 125 -0,5 0,55 40
25 37 6 16 64 150 -0,4 0,7 40
32 44 6 16 64 175 -0,4 0,85 40
38 51 6,5 16 64 225 -0,4 1 40
50 66 8 16 64 275 -0,3 1,7 40
51 67 8 16 64 275 -0,3 1,75 40
63,5 79,5 8 16 64 300 — 2,1 40
75 91 8 16 64 350* — 2,5 40
76 92 8 16 64 350* — 2,55 40
100 116 8 16 64 450* — 3,2 40
102 118 8 16 64 450* — 3,3 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
1/2 0,91 240 960 3,54 -14,76 0,23 131,2
3/4 1,22 240 960 4,92 -14,76 0,37 131,2
1 1,46 240 960 5,91 -11,81 0,47 131,2
1 1/4 1,73 240 960 6,89 -11,81 0,57 131,2
1 1/2 2,01 240 960 8,86 -11,81 0,67 131,2
1 31/32 2,6 240 960 10,83 -8,85 1,14 131,2
2 2,64 240 960 10,83 -8,85 1,17 131,2
2 1/2 3,13 240 960 11,81 — 1,41 131,2
2 61/64 3,58 240 960 13,78* — 1,68 131,2
3 3,62 240 960 13,78* — 1,71 131,2
3 15/16 4,57 240 960 17,72* — 2,15 131,2
4 4,65 240 960 17,72* — 2,21 131,2

(*) The bending radius can be reached at a pressure of ≥ 1 bar.
Other sizes are available on request. Above technical data are based on application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative

针对客户对软管的不同需求，我们可提供专门的设计/定制和生产。

我们可为您提供专门的咨询、设计和定制等解决方案，以满足您对产品规格的需求。

我们可为您提供专门的咨询、设计和定制等解决方案，以满足您对产品规格的需求。

获取更多信息
