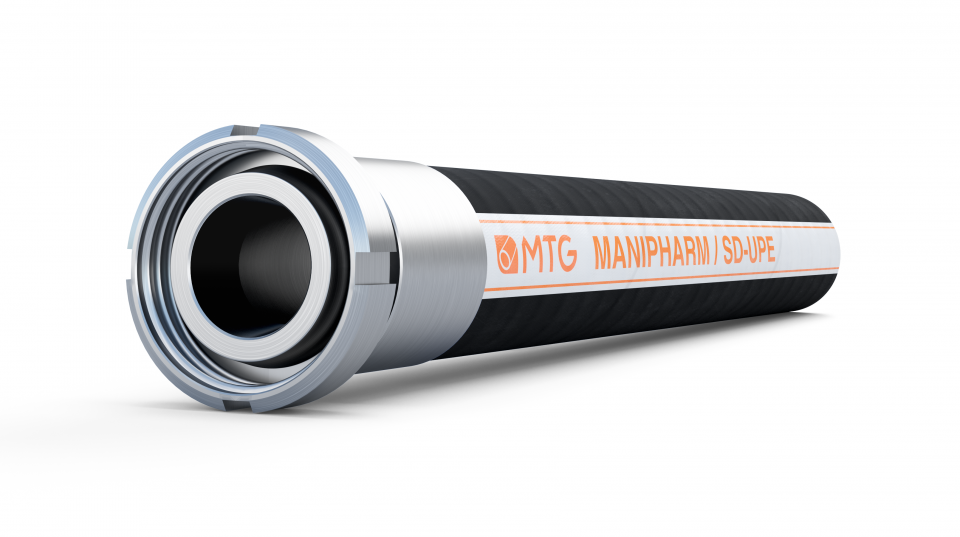

MANIPHARM/SD-UPE

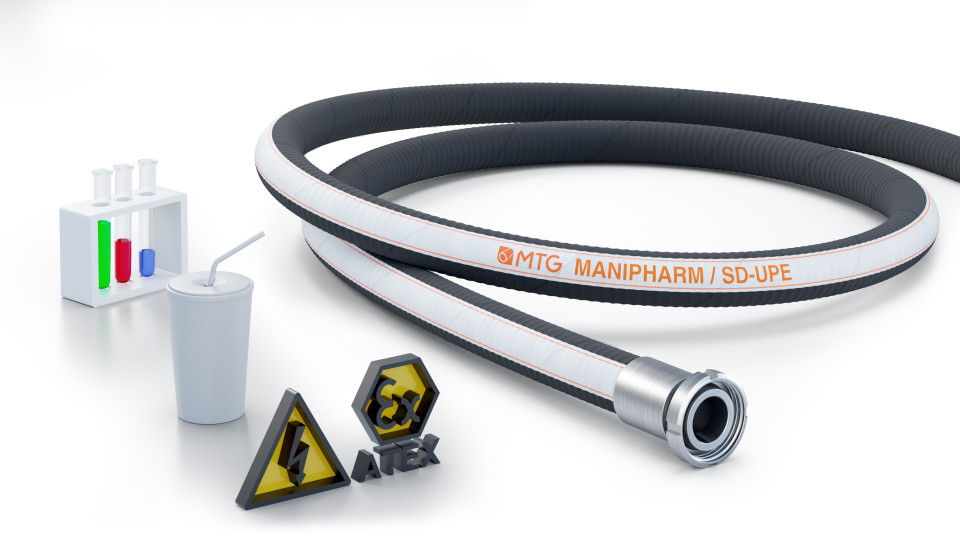

MANIPHARM/SD-UPE is a multipurpose suction and delivery hose for conveying a wide range of chemicals and food products.

Execution acc. to EN 12115:2011.

Hose approved by the Institute Ineris, attestation nr. INERIS-16-AM-341, for use in Atex areas.

More details
Contact us
Data sheet

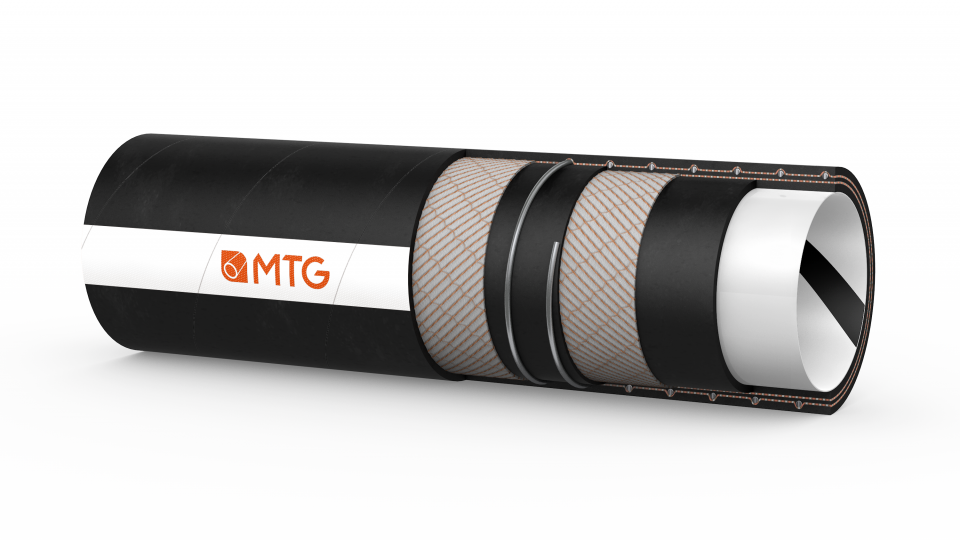

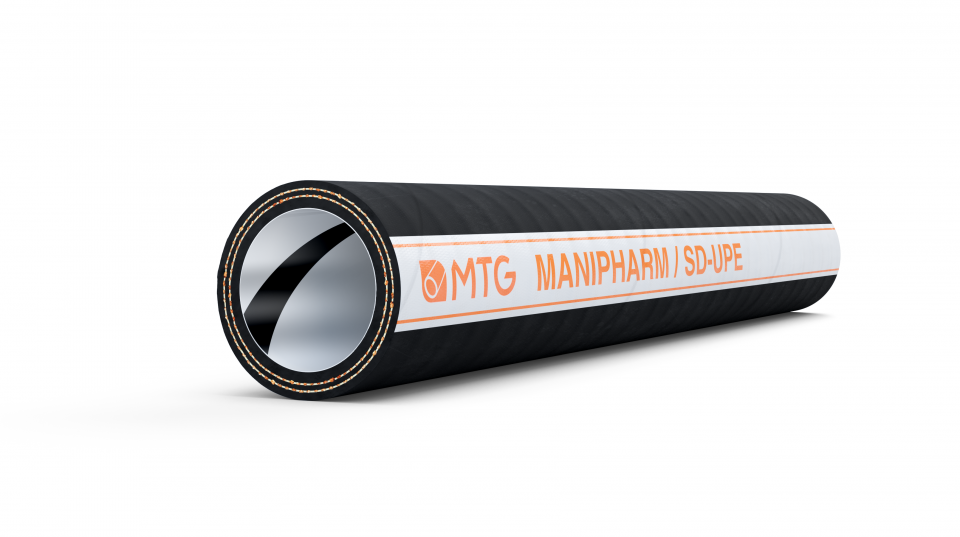

Construction

INNER TUBE

  • UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), light colour, smooth, with black antistatic (R ≤ 10^6Ω) helical UHMWPE stripe.
  • Compliance: FDA Standards, D.M. 21.03.73 and following amendments, Regulation EU n. 10/2011.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Built-in copper wires on request.

COVER

  • EPDM rubber (code 104N), black, antistatic (R ≤ 10^6Ω), smooth, cloth finish, resistant to abrasion, ozone and weather.

Safety factors

  • ≥ 4 times working pressure up to DN 75 mm.
  • ≥ 3 times working pressure over DN 75 mm.

Temperatures

  • In accordance with EN 12115:2011.
  • Resistance to steam up to +130°C for max. 30 minutes.

Electrical properties

  • Electrical resistance through the hose wall: R <10^9 Ω.
  • Identification symbol::
    – Ω/T for version without copper wires.
    – M/T for version with copper wires.

Marking

Dimensional tollerance

Inner diameter: EN 12115 – Outer diameter: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6 16 64 125 -0,9 0,65 40
25 37 6 16 64 150 -0,9 0,75 40
32 44 6 16 64 175 -0,9 1 40
38 51 6,5 16 64 225 -0,9 1,3 40
50 66 8 16 64 275 -0,9 2,1 40
51 67 8 16 64 275 -0,9 2,15 40
63,5 79,5 8 16 64 300 -0,9 2,6 40
75 91 8 16 64 350 -0,9 3,1 40
76 92 8 16 48 350 -0,9 3,15 40
100 118 8 16 48 450 -0,9 4,9 40
102 120 9 16 48 450 -0,9 5 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
45019 1,22 240 960 4,92 -26,57 0,44 131,2
1 1,46 240 960 5,91 -26,57 0,5 131,2
1,25 1,73 240 960 6,89 -26,57 0,67 131,2
1,5 2,01 240 960 8,86 -26,57 0,87 131,2
1,96875 2,6 240 960 10,83 -26,57 1,41 131,2
2 2,64 240 960 10,83 -26,57 1,44 131,2
2,5 3,13 240 960 11,81 -26,57 1,74 131,2
2,953125 3,58 240 960 13,78 -26,57 2,08 131,2
3 3,62 240 720 13,78 -26,57 2,11 131,2
3,9375 4,65 240 720 17,72 -26,57 3,29 131,2
4 4,72 240 720 17,72 -26,57 3,35 131,2

Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
