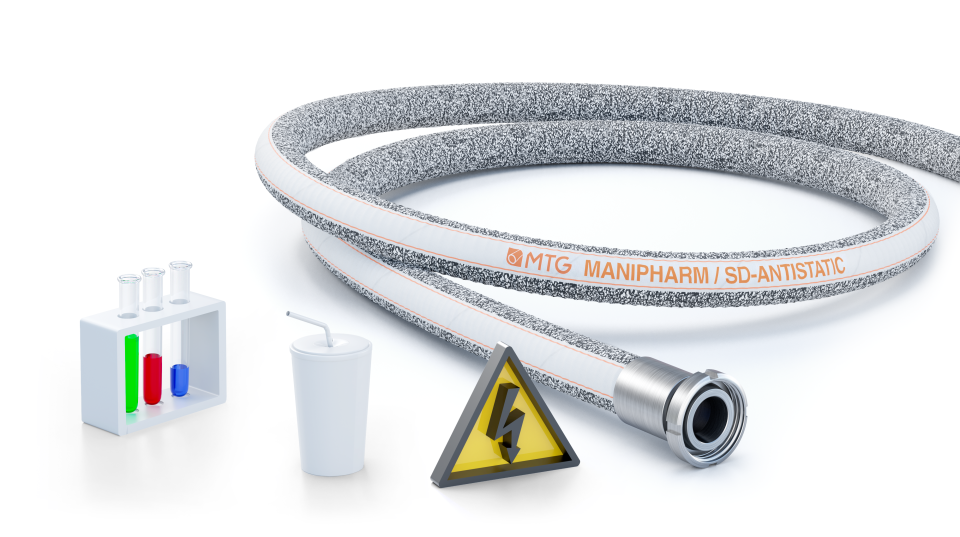

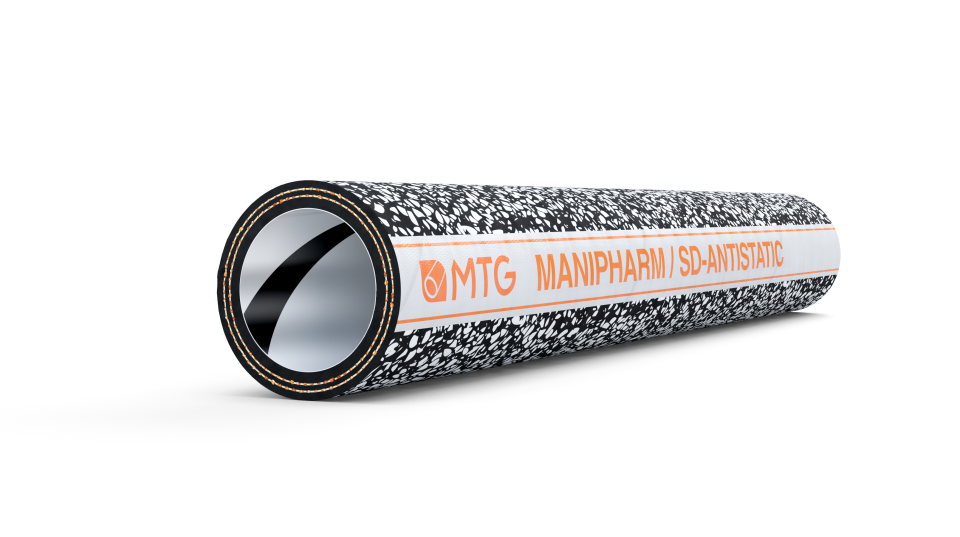

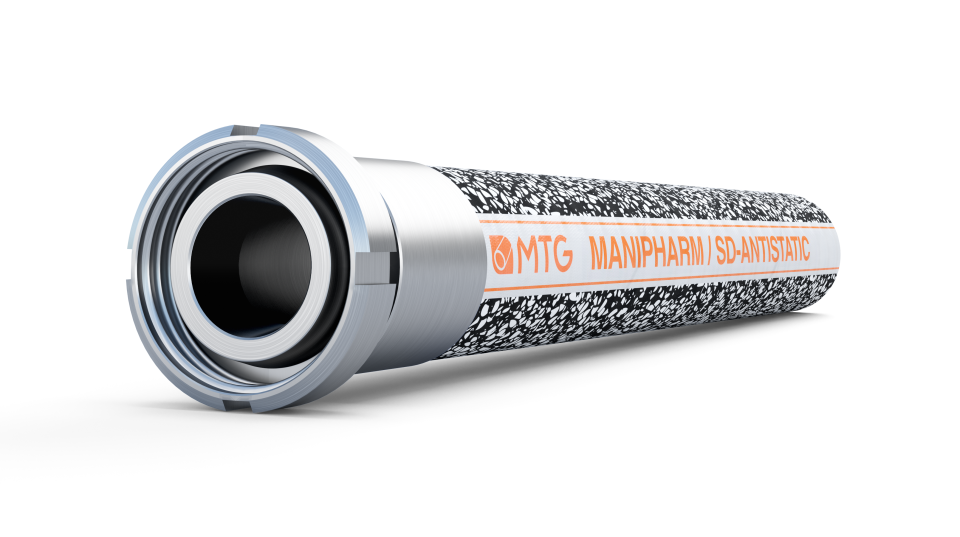

MANIPHARM/SD-ANTISTATIC
Multipurpose suction and delivery hose for conveying a wide range of chemicals and food products. Execution in accordance with EN 12115:2011.
More detailsMain benefits
- The marble finish, totally smooth and easily washable with most common cleaning products, withstands incidental contact even with aggressive chemicals conveyed in the hose.
- The special cover with a low coefficient of friction does not stain the contact surfaces; odourless and tasteless, it is suitable for application in pharma and food industries and generally in productions requiring the use of inert, contamination-free materials.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

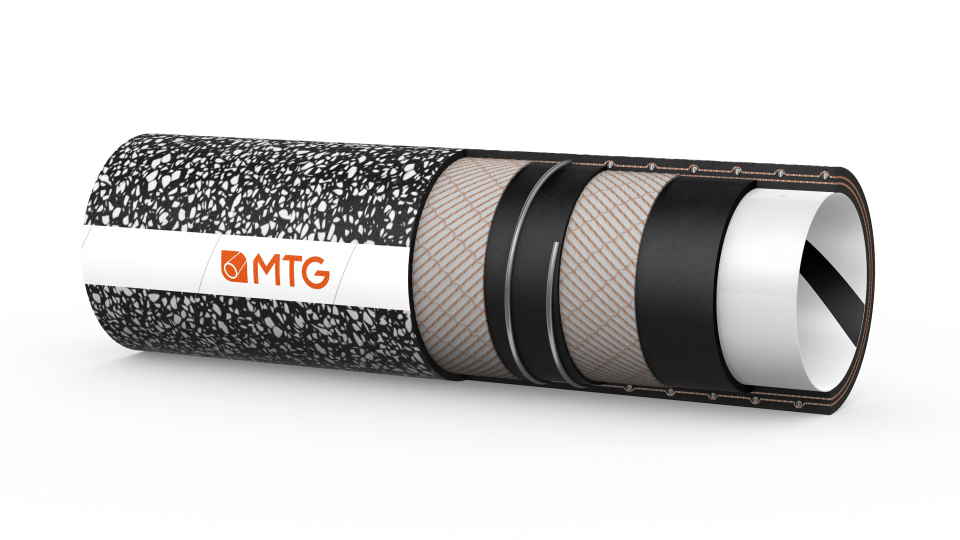

Construcion
TUBE
- UPE (Ultra High Molecular Weight Polyethylene), light colour, smooth, with black antistatic (R ≤ 10^6 Ω) helical UPE stripe.
- Compliance: FDA Standards, D.M. 21.03.73 and following amendments, Regulation EU n. 10/2011.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded steel helix wire.
- Built-in copper wires on request.
COVER
- Marble finish, black and white colour, patented, antistatic (R ≤ 10^6 Ω), smooth, resistant to abrasion, ozone and weather.
- Compliance: FDA Standards for food application.
Safety factors
- ≥ 4 times working pressure up to ID 75 mm.
- ≥ 3 times working pressure over ID 75 mm
Temperatures
- In accordance with EN 12115:2011.
- Resistant to steam up to +130°C for max. 30 minutes.
Note
Patent E.P. 1580475.
ELECTRICAL PROPERTIES
- Electrical resistance through the hose wall: R < 10^9 Ω.
- Identification symbol:
– Ω/T for version without copper wires;
– M/T for version with copper wires.
Marking
Dimensional tollerance
SIZE TOLERANCES: Inner diameter: EN 12115 – Outer diameter: EN 12115 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6.0 | 16 | 64 | 125 | -0.90 | 0.65 | 40 |
| 25 | 37 | 6.0 | 16 | 64 | 150 | -0.90 | 0.75 | 40 |
| 32 | 44 | 6.0 | 16 | 64 | 175 | -0.90 | 1.00 | 40 |
| 38 | 51 | 6.5 | 16 | 64 | 225 | -0.90 | 1.30 | 40 |
| 50 | 66 | 8.0 | 16 | 64 | 275 | -0.90 | 2.10 | 40 |
| 51 | 67 | 8.0 | 16 | 64 | 275 | -0.90 | 2.15 | 40 |
| 63.5 | 79.5 | 8.0 | 16 | 64 | 300 | -0.90 | 2.60 | 40 |
| 75 | 91 | 8.0 | 16 | 64 | 350 | -0.90 | 3.10 | 40 |
| 76 | 92 | 8.0 | 16 | 48 | 350 | -0.90 | 3.15 | 40 |
| 100 | 118 | 9.0 | 16 | 48 | 450 | -0.90 | 4.90 | 40 |
| 102 | 120 | 9.0 | 16 | 48 | 450 | -0.90 | 5.00 | 40 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
