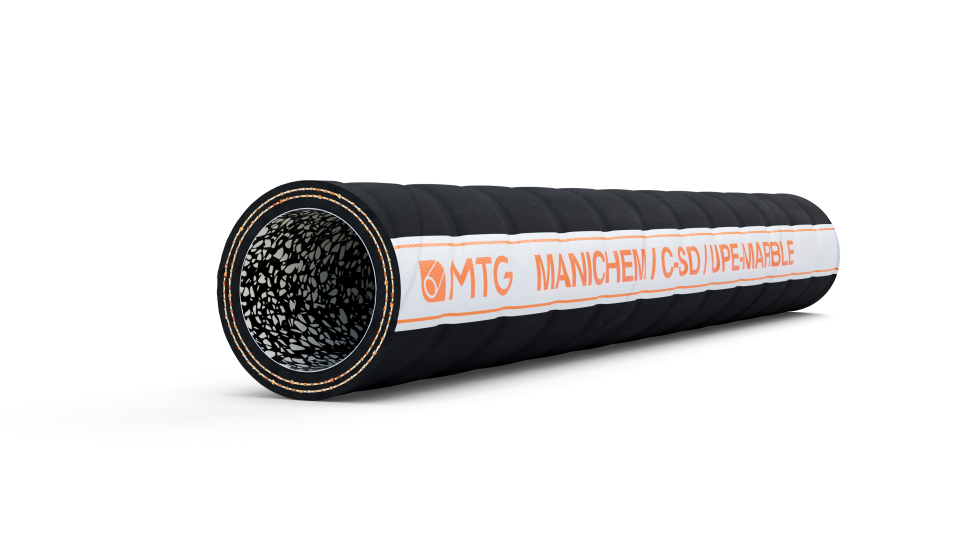

MANICHEM/C-SD/UPE-MARBLE

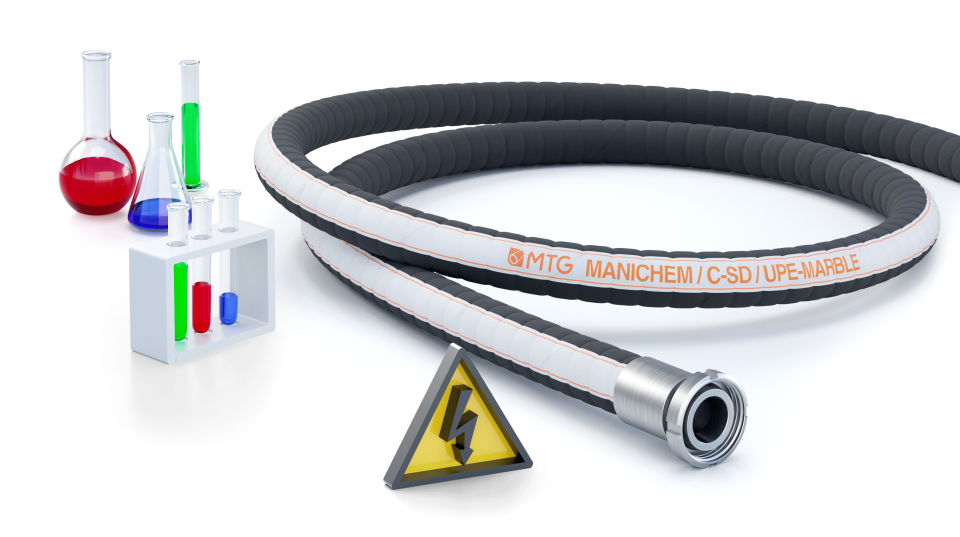

Multipurpose suction and delivery hose for conveying a wide range of aggressive chemicals.
Engineered to ensure dissipation of electrostatic charges not only on the surface, but also through the hose wall (Electrical resistance: R<10^9 Ω).

Execution in accordance with EN 12115:2011.

More details
Contact us
Data sheet

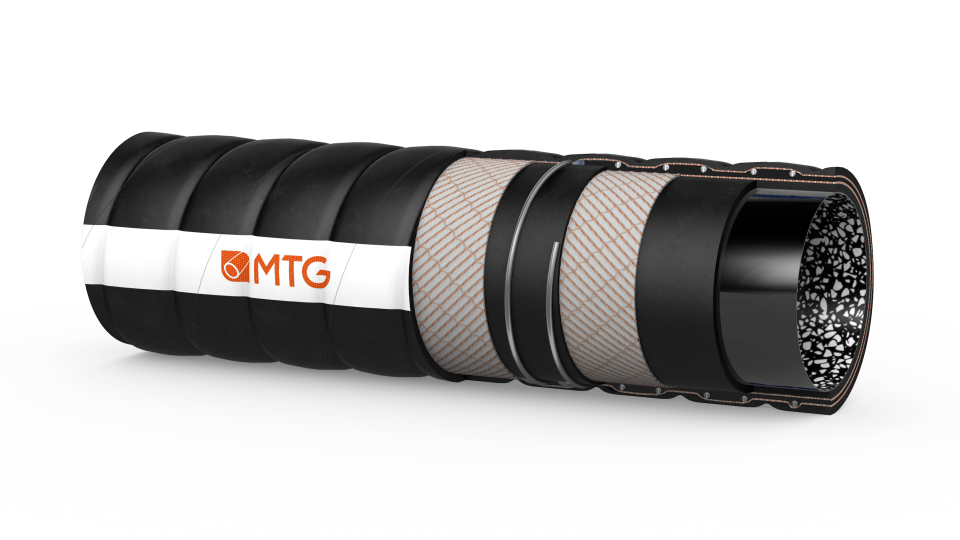

Construcion

TUBE

  • UPE (Ultra High Molecular Weight Polyethylene), antistatic (R<10^6 Ω), black and white, smooth.
  • Compliance: FDA Standards, Regulation EU n. 10/2011.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wires.
  • Copper wires on request.

COVER

  • EPDM rubber, black, antistatic (R < 10^6 Ω), resistant to abrasion, ozone and weather, wide corrugated, cloth finish.

Safety factors

≥ 4 times working pressure

Temperatures

  • In accordance with EN 12115:2011.
  • Resistant to steam up to +130°C for max. 30 minutes.

Note

The wide corrugation of the outer surface allows an easy and safe installation of the fittings (no cuffs needed).

ELECTRICAL PROPERTIES

  • Electrical resistance through the hose wall: R < 10^9 Ω.
  • Identification symbol:

    – Ω/T for version without copper wires;
     – M/T for version with copper wires.

Marking

Dimensional tollerance

SIZE TOLERANCES: Inner diameter: EN 12115 – Outer diameter: EN 12115 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6.0 10 40 125 -0.90 0.65 40
25 37 6.0 10 40 150 -0.90 0.80 40
32 44 6.0 10 40 175 -0.90 0.95 40
38 51 6.5 10 40 225 -0.90 1.20 40
50 66 8.0 10 40 275 -0.90 1.90 40
63.5 79.5 8.0 10 40 300 -0.90 2.60 40
75 91 8.0 10 40 350 -0.80 3.00 40
100 116 8.0 10 40 450 -0.80 4.10 40

Chemical resistance acc. to MTG Chemical Resistance Chart.  Above technical data are based on application at room temperature (+20°C).
Other sizes are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
