POLYSPIR/UPE-BN

POLYSPIR is a multipurpose hose for suction and delivery of a wide range of chemical, alcoholic and food products.

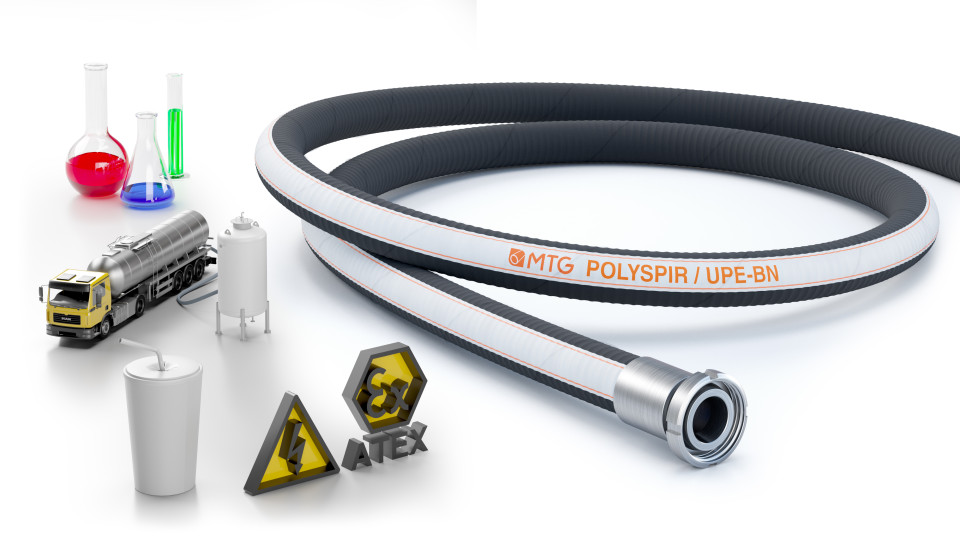

Normally installed on tank trucks, unloading platforms, chemical laboratories, stationary and mobile systems in food and chemical industries.

More details
Contact us
Data sheet

Main benefits

  • The inner tube of the hose POLYSPIR/UPE-BN is suitable for conveying alcohol with a concentration up to 98%.
  • It complies with the Reg. EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to Reg. EC 1907/2006 (REACH).

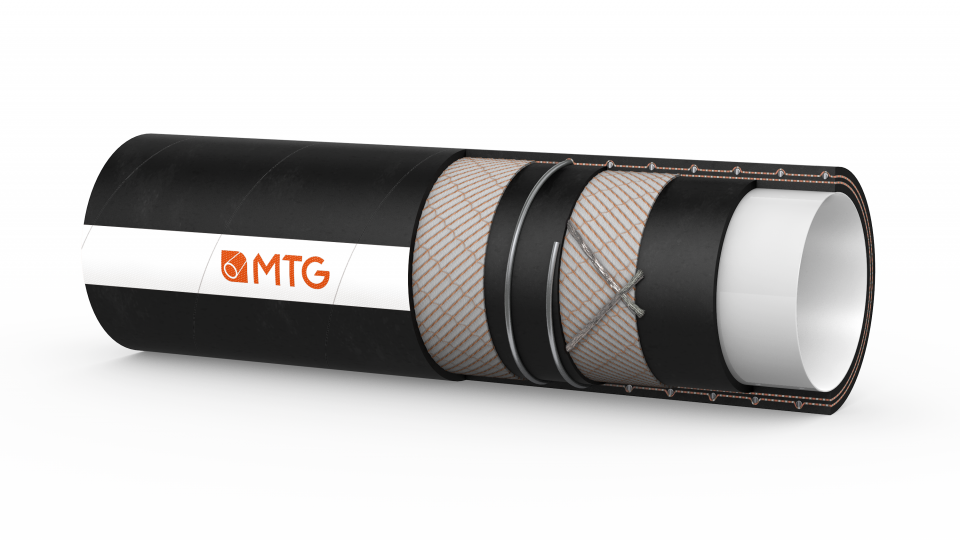

Construcion

INNER TUBE

  • UPE (UHMWPE – Ultra High Molecular Weight Polyethylene), light colour, mirror-smooth.
  • Compliance: FDA Standards, D.M. 21/03/73 and following amendments, and Regulation EU n. 10/2011.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Built-in copper wires.

COVER

  • EPDM rubber, black colour, antistatic (R < 10^6 Ω), resistant to abrasion, ozone and weather, smooth, cloth finish.

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • From -35°C to +100°C.
  • Resistant to steam up to +130°C for a maximum time of 30 minutes.

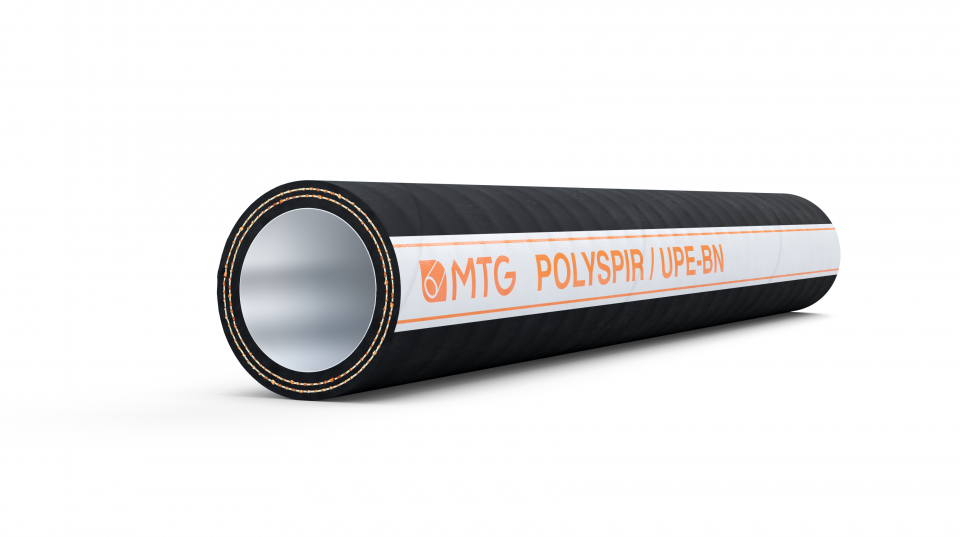

Marking

Dimensional tollerance

I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
13 24 5,5 10 40 80 -0,9 0,45 40
19 31 6 10 40 115 -0,9 0,65 40
25 37 6 10 40 150 -0,9 0,82 40
32 44 6 10 40 190 -0,9 0,98 40
35 47 6 10 40 210 -0,9 1,05 40
38 51 6,5 10 40 230 -0,9 1,25 40
40 53 6,5 10 40 240 -0,9 1,3 40
50 64 7 10 40 300 -0,9 1,84 40
50 66 8 10 40 300 -0,9 2 40
63,5 79,5 8 10 40 390 -0,9 2,55 40
70 86 8 10 40 420 -0,9 2,7 40
75 91 8 10 40 480 -0,9 3 40
80 96 8 10 40 480 -0,9 3,15 40
100 118 9 10 40 600 -0,9 4,9 40
102 120 9 10 40 600 -0,9 4,92 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
1/2 0,94 150 600 3,15 -26,57 0,3 131,2
3/4 1,22 150 600 4,53 -26,57 0,44 131,2
1 1,46 150 600 5,91 -26,57 0,55 131,2
1 1/4 1,73 150 600 7,48 -26,57 0,66 131,2
1 3/8 1,85 150 600 8,27 -26,57 0,7 131,2
1 1/2 2,01 150 600 9,06 -26,57 0,84 131,2
1 37/64 2,09 150 600 9,45 -26,57 0,87 131,2
1 31/32 2,52 150 600 11,81 -26,57 1,23 131,2
1 31/32 2,6 150 600 11,81 -26,57 1,34 131,2
2 1/2 3,13 150 600 15,35 -26,57 1,71 131,2
2 3/4 3,39 150 600 16,54 -26,57 1,81 131,2
2 61/64 3,58 150 600 18,9 -26,57 2,01 131,2
3 5/32 3,78 150 600 18,9 -26,57 2,11 131,2
3 15/16 4,65 150 600 23,62 -26,57 3,29 131,2
4 4,72 150 600 23,62 -26,57 3,3 131,2

Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes and colours are available upon request. Please contact our Sales Department

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
