PROCHIM/10

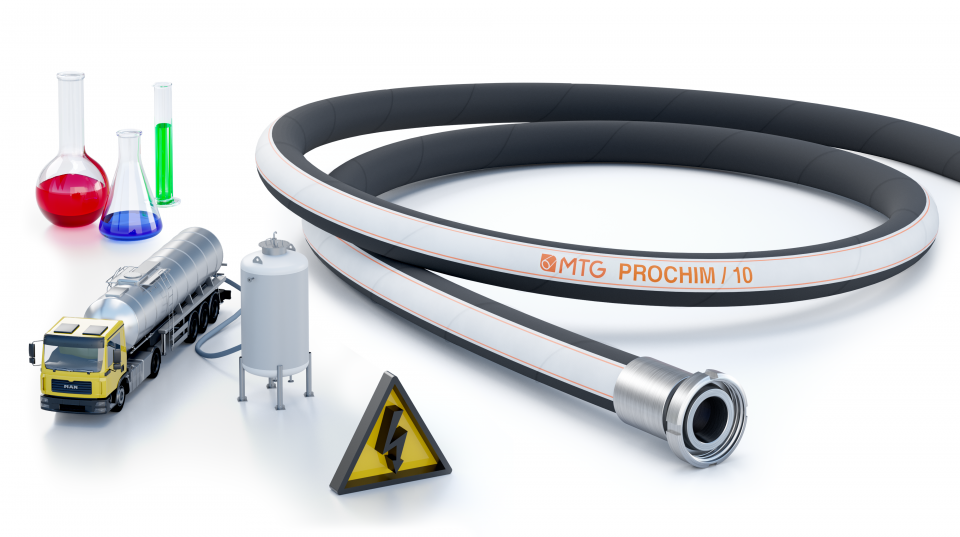

Multipurpose delivery hose for conveying a wide range of aggressive chemicals.

PROCHIM is normally installed on tank trucks and unloading platforms, recommended for applications in chemical laboratories and industries.

More details
Contact us
Data sheet

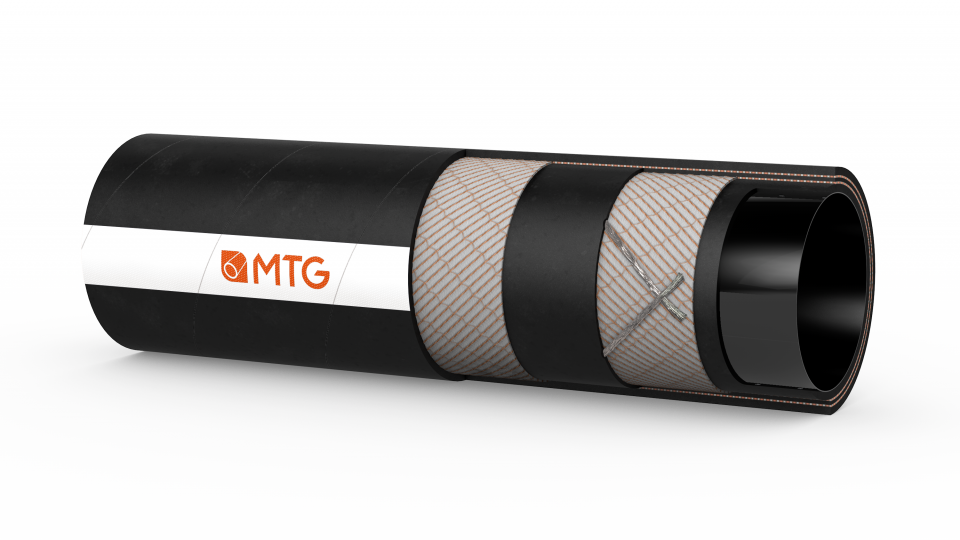

Construcion

TUBE

  • UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), neutral, smooth.
  • Resistance: according to MTG Chemical Resistance Chart.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Built-in copper wires.

COVER

  • EPDM rubber, black, smooth, antistatic (R < 10^6 Ω), resistant to abrasion, ageing and weather, cloth finish.

Safety factors

  • ≥ 3 volte la pressione di esercizio.

Temperatures

  • From -35°C to +100°C.
  • Resistant to steam up to +130°C for a maximum time of 30 minutes.

Note

  • A suction and delivery hose with steel helix wire, approved by the Institute Ineris for use in Atex areas, is available: PROCHIM/SPL/10.

Marking

Dimensional tollerance

I.D.: ISO 1307 – Wall Thickness: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Pressione di scoppio
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
10 19 4,5 10 30 60 -0,6 0,24 40
13 22 4,5 10 30 80 -0,6 0,29 40
16 25 4,5 10 30 100 -0,5 0,34 40
19 30 5,5 10 30 120 -0,5 0,49 40
25 37 6 10 30 150 -0,5 0,66 40
30 42 6 10 30 200 -0,4 0,77 40
32 44 6 10 30 200 -0,3 0,81 40
35 48 6,5 10 30 240 -0,3 0,98 40
38 52 7 10 30 240 -0,3 1,05 40
40 54 7 10 30 240 -0,3 1,1 40
45 59 7 10 30 280 -0,2 1,21 40
50 65 7,5 10 30 300 -0,2 1,47 40
60 76 8 10 30 360 — 1,84 40
63,5 79,5 8 10 30 390* — 1,93 40
75 91 8 10 30 450* — 2,20 40
80 96 8 10 30 480* — 2,30 40
90 106 8 10 30 540* — 2,60 40
100 116 8 10 30 600* — 2,82 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Pressione di scoppio
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
3/8 0,75 150 435 2,36 -17,71 0,16 131,2
1/2 0,87 150 435 3,15 -17,71 0,19 131,2
5/8 0,99 150 435 3,94 -14,76 0,23 131,2
3/4 1,18 150 435 4,72 -14,76 0,33 131,2
1 1,46 150 435 5,91 -14,76 0,44 131,2
1 11/64 1,65 150 435 7,87 -11,81 0,52 131,2
1 1/4 1,73 150 435 7,87 -8,85 0,54 131,2
1 3/8 1,89 150 435 9,45 -8,85 0,66 131,2
1 1/4 2,05 150 435 9,45 -8,85 0,7 131,2
1 37/64 2,13 150 435 9,45 -8,85 0,74 131,2
1 49/64 2,32 150 435 11,02 -5,9 0,81 131,2
1 31/32 2,56 150 435 11,81 -5,9 0,99 131,2
2 3/8 2,99 150 435 14,17 — 1,23 131,2
2 1/2 3,13 150 435 15,35* — 1,29 131,2
2 61/64 3,58 150 435 17,72* — 1,48 131,2
3 5/32 3,78 150 435 18,89* — 1,54 131,2
3 35/64 4,17 150 435 21,26* — 1,74 131,2
3 15//16 4,57 150 435 23,62* — 1,89 131,2

(*) Bending radius at a working pressure of ≥ 1 bar.

Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
