MANITANK/D-AVIO

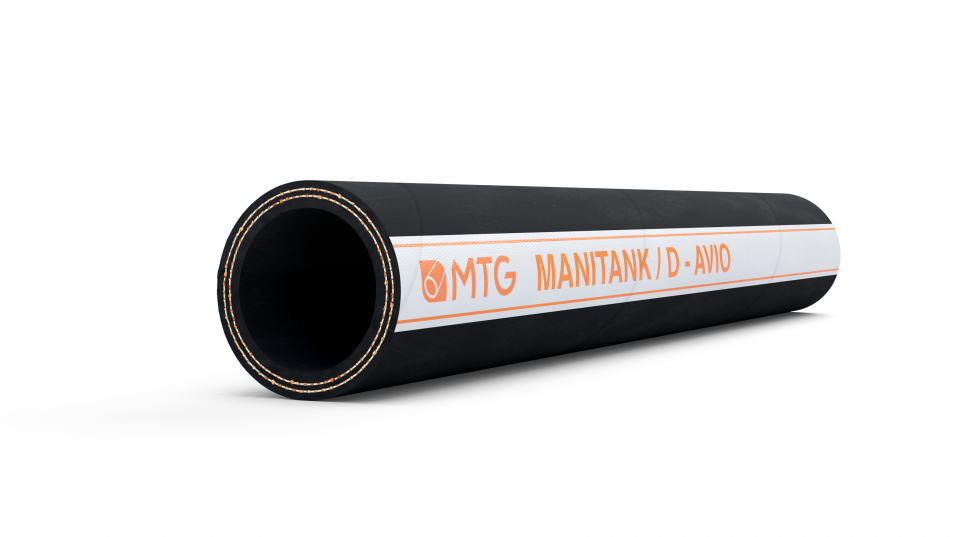

MANITANK/D-AVIO is a delivery hose for handling aviation fuels.

Specifically designed for conveying kerosene and hydrocarbons with an aromatic content up to 50%.

Suitable for use on tank truck reels.

Execution according to the aviation fuel Standards EN 1825, EN 1361, BS 3158, EI 1529.

More details
Contact us
Data sheet

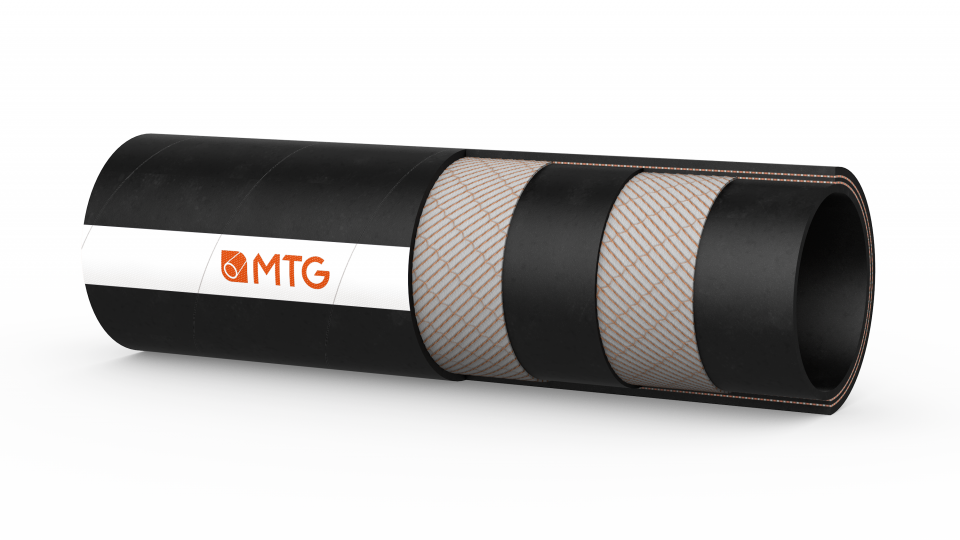

Construcion

TUBE

  • NBR rubber, black colour, antistatic, smooth.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Built-in copper wires only for type B.

COVER:

  • CR rubber, black colour, antistatic, self-extinguishing, resistant to abrasion, weather and contact with hydrocarbons, smooth, cloth finish.

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • Complying with EN 1825.
  • For other fluids please check the MTG Chemical Resistance Chart.

Electrical properties

  • Identification symbol:
    -Ω for Type C (Resistance : 10^3 < R < 10^6 Ω).
    -M for Type B (Resistance : R < 10^2 Ω).

Marking

Dimensional tollerance

I.D.: EN 1825 – Wall thickness: DIN 7715 T4 S2 – Length: EN 1825

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6 20 80 100 -0,5 0,7 40
25 38,5 6,75 20 80 125 -0,4 0,98 40
32 46 7 20 80 140 -0,4 1,2 40
38 52 7 20 80 180 -0,4 1,35 40
50 65 7,5 20 80 215 -0,3 1,8 40
51 66 7,5 20 80 215 — 1,85 40
63,5 81 8,75 20 80 230 — 2,75 40
75 93,5 9,25 20 80 230 — 3,4 40
76 94,5 9,25 20 80 230 — 3,45 40
100 122 11 20 80 345 — 4,4 40
102 124 11 20 80 345 — 4,5 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
3/4 1,22 300 1200 3,94 -14,76 0,47 131,2
1 1,52 300 1200 4,92 -11,81 0,66 131,2
1 1/4 1,81 300 1200 5,51 -11,81 0,8 131,2
1 1/2 2,05 300 1200 7,09 -11,81 0,91 131,2
1 31/32 2,56 300 1200 8,46 -8,85 1,21 131,2
2 2,6 300 1200 8,46 — 1,24 131,2
2 1/2 3,19 300 1200 9,06 — 1,84 131,2
2 61/64 3,68 300 1200 9,06 — 2,28 131,2
3 3,72 300 1200 9,06 — 2,31 131,2
3 15/16 4,8 300 1200 13,58 — 2,95 131,2
4 4,88 300 1200 13,58 — 3,02 131,2

Chemical resistance acc. to MTG Chemical Resistance Chart.
Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
