MANITANK/SD-AVIO

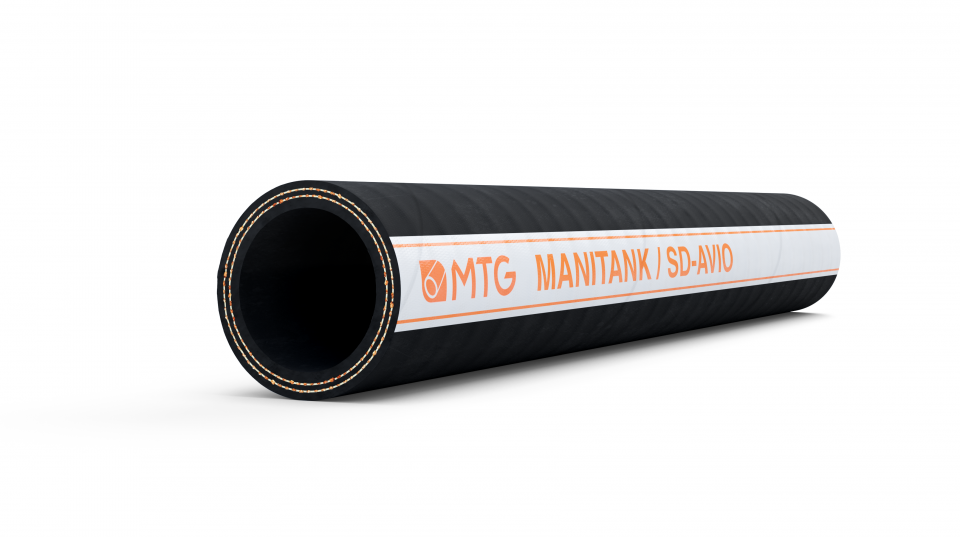

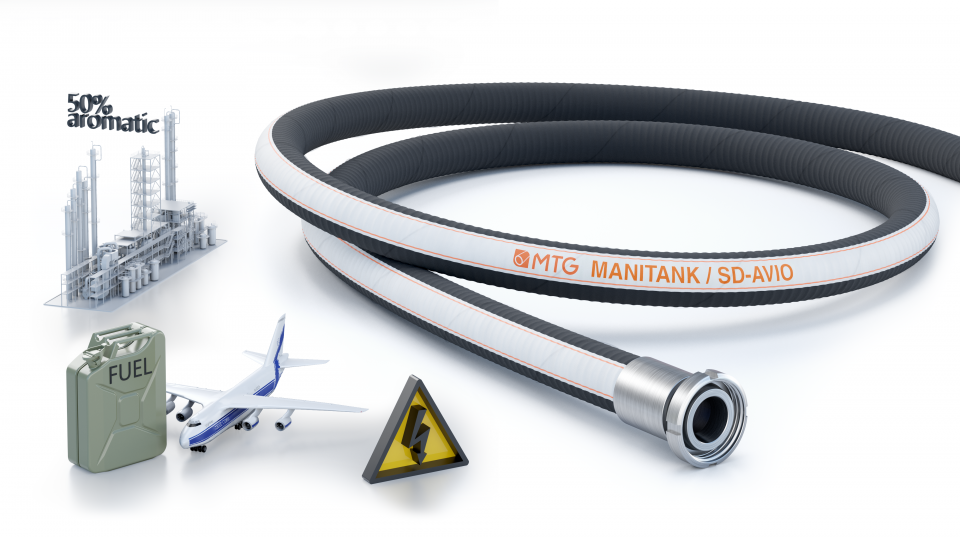

MANITANK/SD-AVIO is a suction and delivery hose for handling aviation fuel.

Specifically designed for conveying kerosene and hydrocarbons with an aromatic content up to 50%.

Suitable for use on tank truck reels.

Execution according to the aviation fuel handling Standards EN 1825 (Type E), EN 1361, BS 3158, EI 1529.

More details
Contact us
Data sheet

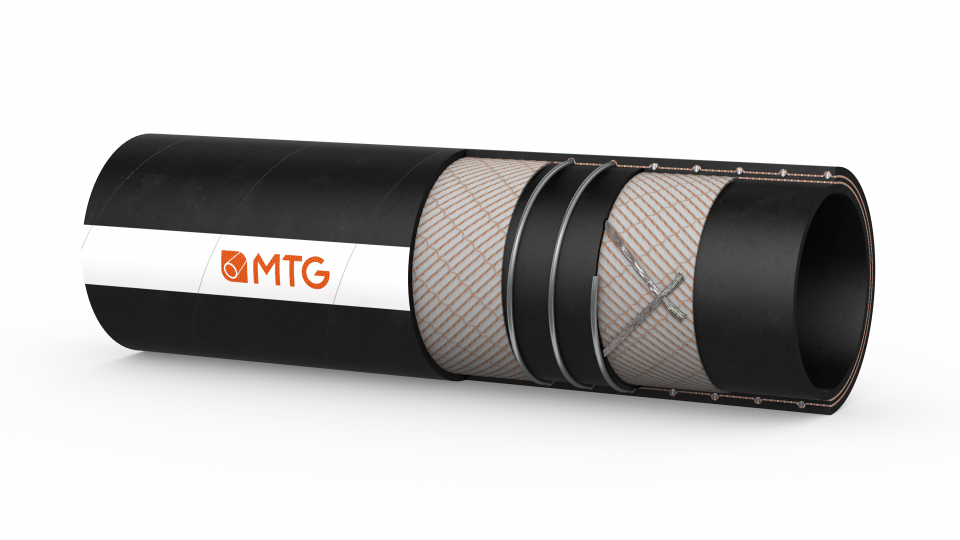

Construcion

TUBE

  • NBR rubber, black colour, conductive, smooth.

REINFORCEMENT

  • High strength plies of synthetic cord.
  • Embedded steel helix wire.
  • Built-in copper wires.

COVER

  • CR rubber, black colour, conductive, self-extinguishing, resistant to abrasion, weather and contact with hydrocarbons, smooth, cloth finish.

Safety factors

  • ≥ 4 times working pressure.

Temperatures

  • In accordance with EN 1825.
  • For other fluids please check the MTG Chemical Resistance Chart.

Note

  • If required, it may be supplied in service lengths with couplings at the ends and with hydrostatic test certificate.

Electrical properties

  • Identification symbol:
    -M (Resistance : R< 10^2 Ω).

Marking

Dimensional tollerance

I.D.: EN 1825 – Wall thickness: DIN 7715 T4 S2 – Length: EN 1825

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
19 31 6 20 80 100 -0,9 0,8 40
25 38,5 6,75 20 80 125 -0,9 1 40
32 46 7 20 80 140 -0,9 1,45 40
38 52 7 20 80 180 -0,9 1,68 40
50 65 7,5 20 80 215 -0,9 2,05 40
51 66 7,5 20 80 215 -0,9 2,1 40
63,5 81,5 9 20 80 250 -0,9 3 40
75 93,5 9,25 20 80 250 -0,9 4,4 40
76 94,5 9,25 20 80 250 -0,9 4,45 40
100 120 10 20 80 350 -0,9 4,5 40
102 122 10 20 80 350 -0,9 4,6 40
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
3/4 1,22 300 1200 3,94 -26,57 0,54 131,2
1 1,52 300 1200 4,92 -26,57 0,67 131,2
1 1/4 1,81 300 1200 5,51 -26,57 0,97 131,2
1 1/2 2,05 300 1200 7,09 -26,57 1,13 131,2
1 31/32 2,56 300 1200 8,46 -26,57 1,38 131,2
2 2,6 300 1200 8,46 -26,57 1,41 131,2
2 1/2 3,21 300 1200 9,84 -26,57 2,01 131,2
2 61/64 3,68 300 1200 9,84 -26,57 2,95 131,2
3 3,72 300 1200 9,84 -26,57 2,98 131,2
3 15/16 4,72 300 1200 13,78 -26,57 3,02 131,2
4 4,8 300 1200 13,78 -26,57 3,09 131,2

Chemical resistance acc. to MTG Chemical Resistance Chart.
Above technical data are based on application at room temperature (+20°C). Other sizes are available on request.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative

针对客户对软管的不同需求，我们可提供专门的设计/定制和生产。

我们可为您提供专门的咨询、设计和定制等解决方案，以满足您对产品规格的需求。

我们可为您提供专门的咨询、设计和定制等解决方案，以满足您对产品规格的需求。

获取更多信息
