MTG PRIMEWINE/CLC-SP
MTG PRIMEWINE is a flexible and easy-to-handle rubber hose suitable for conveying high quality liquid foodstuffs such as wine, must, cider and spirits with an alcohol content up to 96%.
Mainly used in wineries for suction and delivery.
The structure is specifically designed to withstand frequent pressure changes and makes the hose perfect for conveying nitrogen and carbon dioxide during production processes and for transport of sparkling wine and champagne.

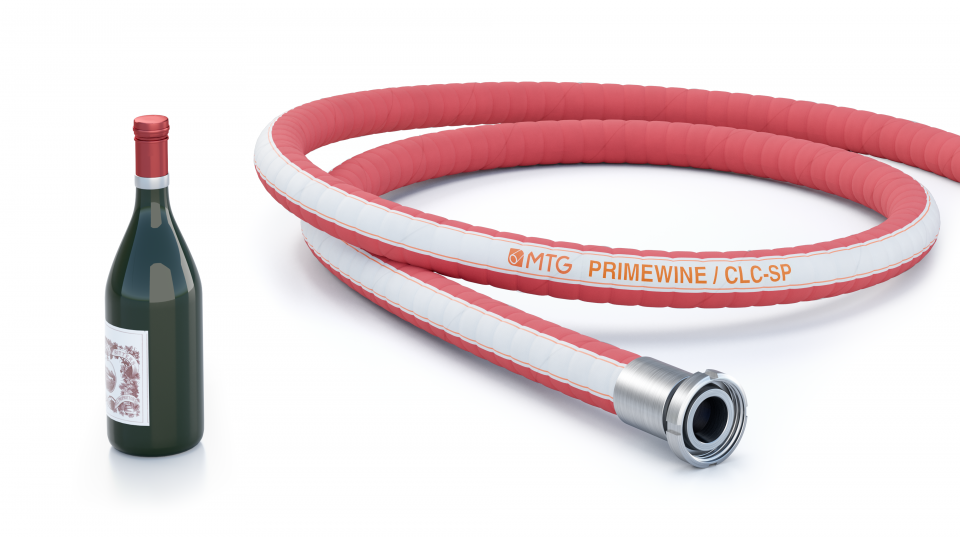

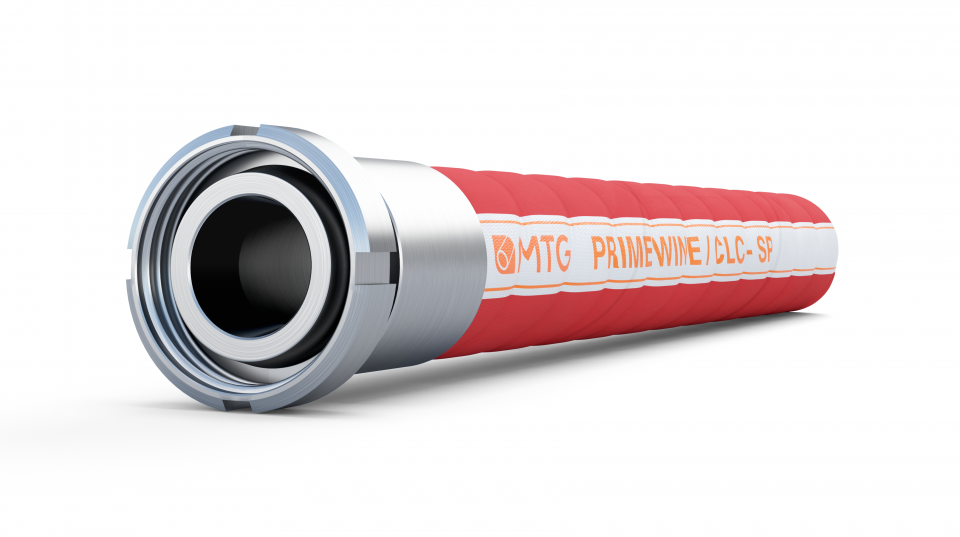

Normally supplied in service lengths with fittings at the ends.
Main benefits
- The special corrugated cover allows high flexibility and very easy handling.
- The special ANTIMYCOTIC cover, with a low coefficient of friction, allows an easy sliding over the working surfaces and makes the hose easy to handle. No risk of stains on the contact surfaces.
- The odourless and tasteless tube, specifically designed for conveying wine and high quality alcoholic products, ensures contamination-free transport of the fluid, thus preserving its original organoleptic properties.
- MTG Primewine ensures utmost safety during transport of fluids enriched with nitrogen and carbon dioxide, due to the special structure of the hose
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle does not use animal derivatives, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

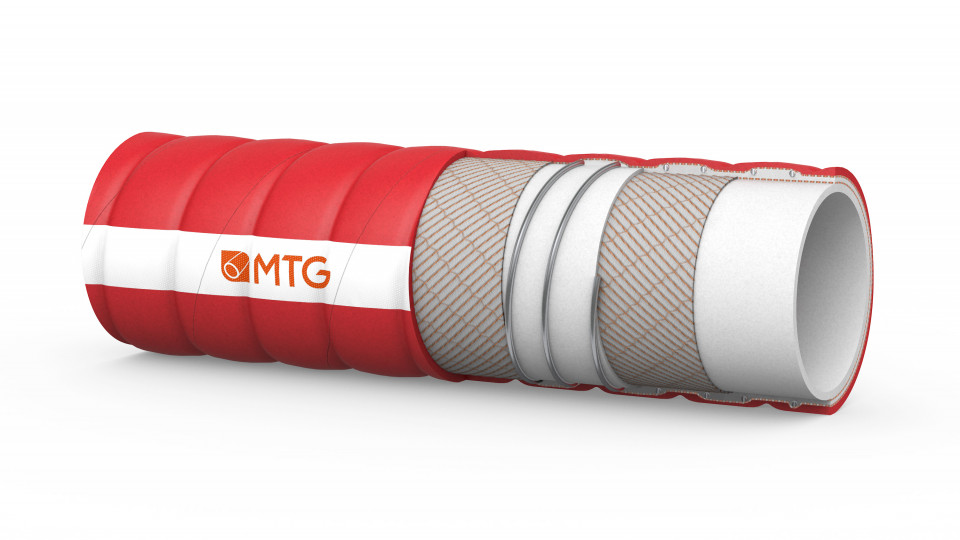

Construcion
TUBE
- Synthetic rubber (cod. 90FDA), clear colour, food quality, odourless and tasteless, smooth.
- Compliance: 3-A Sanitary Standards n.18-03-Class II, FDA Standards, D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
COVER
- Synthetic polymer, red colour, resistant to abrasion and weather, wide corrugation, cloth finish.
- Additional external coating. Low friction material, red colour.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -30°C to +80°C.
- Sterilization up to +120°C for max. 30 minutes.
Note
- Version with W.P. of 10 bar available on request.

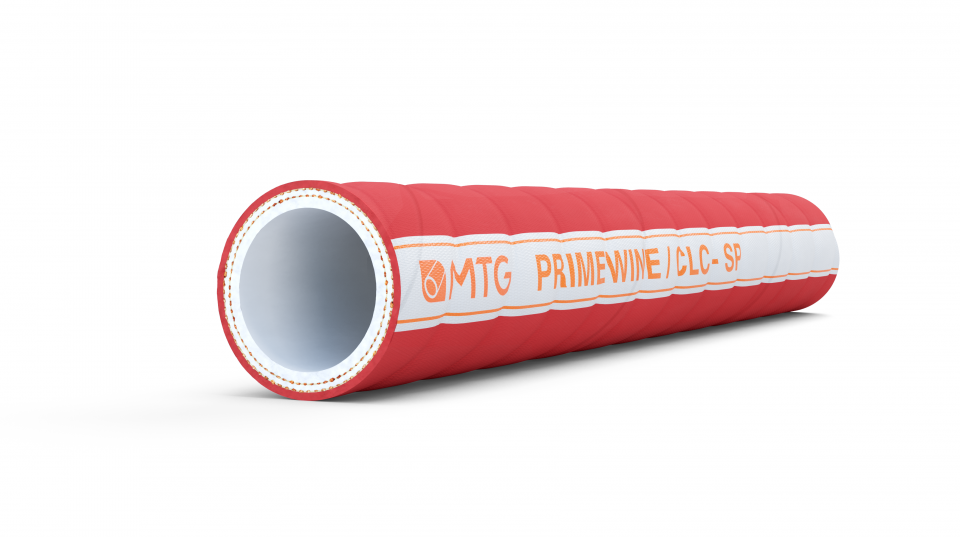

Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 32 | 43 | 5,5 | 12 | 36 | 95 | -0,9 | 0,85 | 40 |
| 38 | 49 | 5,5 | 10 | 30 | 115 | -0,9 | 0,92 | 40 |
| 40 | 51 | 5,5 | 10 | 30 | 120 | -0,9 | 0,97 | 40 |
| 50 | 62 | 6 | 8 | 24 | 160 | -0,9 | 1,43 | 40 |
| 60 | 73 | 6,5 | 7 | 21 | 210 | -0,9 | 1,7 | 40 |
| 70 | 83 | 6,5 | 7 | 21 | 245 | -0,9 | 1,95 | 40 |
| 80 | 93 | 6,5 | 6 | 18 | 300 | -0,9 | 2,6 | 40 |
| 100 | 114 | 7 | 5 | 15 | 400 | -0,9 | 3,5 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1 1/4 | 1,69 | 174 | 522,1 | 3,74 | -26,57 | 0,57 | 131,2 |
| 1 1/2 | 1,93 | 145 | 435,1 | 4,53 | -26,57 | 0,62 | 131,2 |
| 1 37/64 | 1,57 | 145 | 435,1 | 4,72 | -26,57 | 0,65 | 131,2 |
| 1 31/32 | 1,97 | 116 | 348,1 | 6,3 | -26,57 | 0,96 | 131,2 |
| 2 23/64 | 2,36 | 101,5 | 304,6 | 8,27 | -26,57 | 1,14 | 131,2 |
| 2 3/4 | 3,27 | 101,5 | 304,6 | 9,65 | -26,57 | 1,31 | 131,2 |
| 3 5/32 | 3,66 | 87 | 262,1 | 11,81 | -26,57 | 1,75 | 131,2 |
| 3 15/16 | 4,49 | 72,5 | 72,5 | 15,75 | -26,57 | 2,35 | 131,2 |
Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
