MTG PRIMEWINE

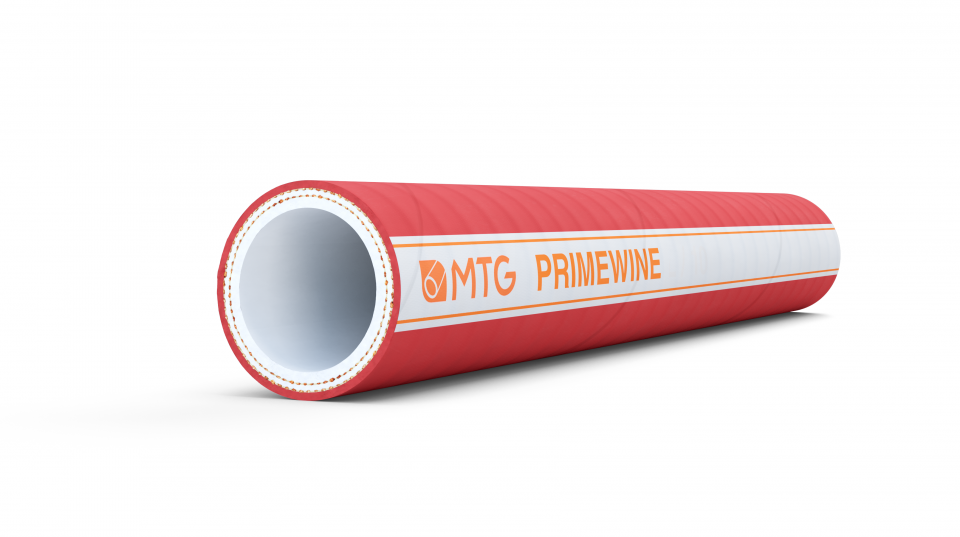

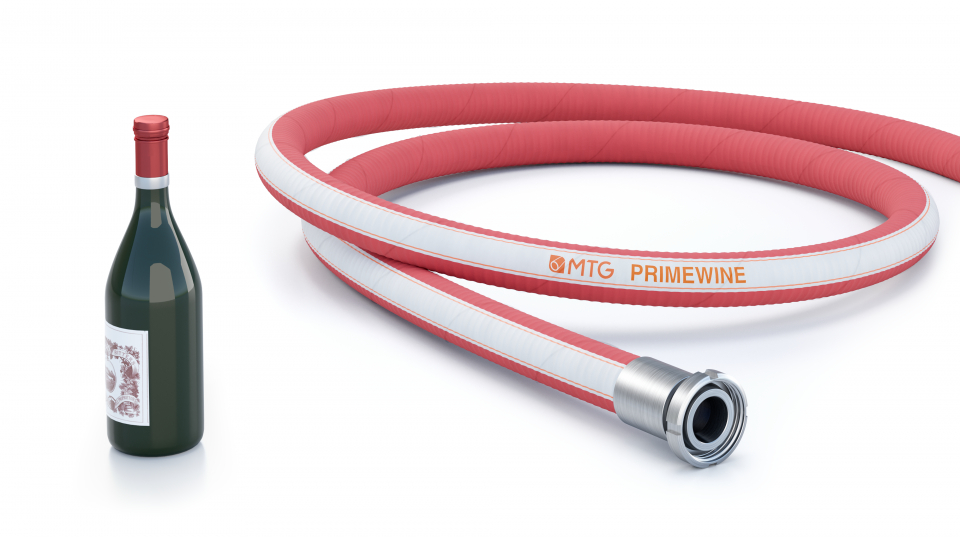

MTG PRIMEWINE is a flexible and easy-to-handle rubber hose suitable for conveying high quality liquid foodstuffs such as wine, must, cider and spirits with an alcohol content up to 96%.
Mainly used in wineries for suction and delivery.
The structure is specifically designed to withstand frequent pressure changes and makes the hose perfect for conveying nitrogen and carbon dioxide during production processes and for transport of sparkling wine and champagne.

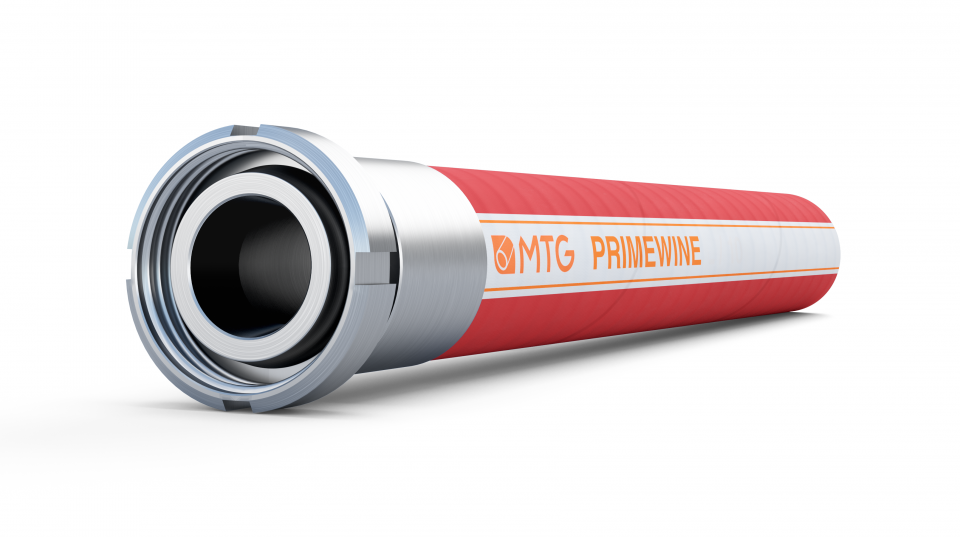

Normally supplied in service lengths with fittings at the ends.
Main benefits
- The tube, free from phthalates, plasticizers and animal derived ingredients, reduces the risk of bacterial growth and contamination of the product conveyed.
- The odourless and tasteless tube, specifically designed for conveying wine and high quality alcoholic products, ensures contamination-free transport of the fluid, thus maintaining its original organoleptic properties.
- MTG Primewine ensures utmost safety during transport of fluids enriched with nitrogen and carbon dioxide, due to the special structure of the hose.

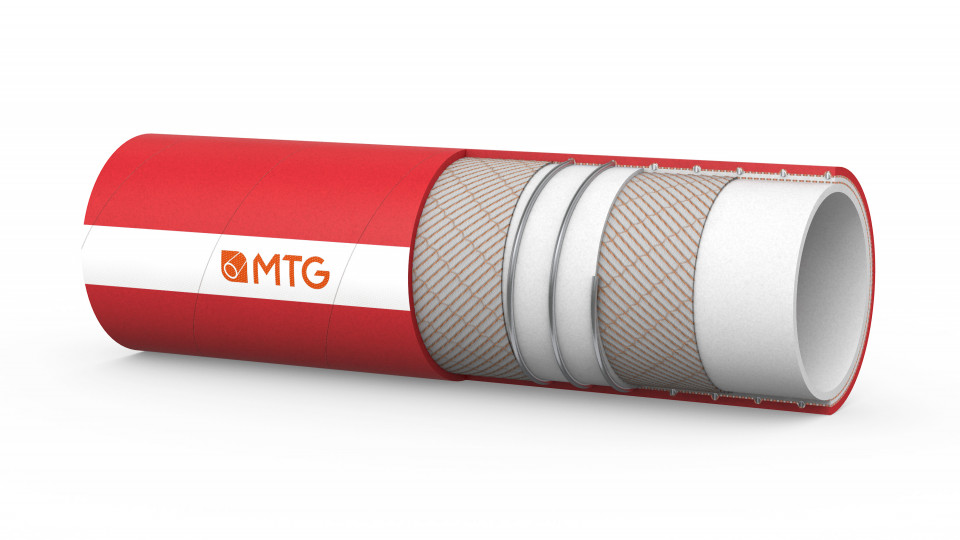

Construcion
TUBE
- Synthetic rubber (cod. 90FDA), clear colour, food quality, odourless and tasteless, smooth.
- CompliANCE: 3A, FDA and D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
COVER
- Synthetic polymer, red colour, abrasion and weather resistant, smooth, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -30°C to +80°C.
- Sterilization up to +120°C for max. 30 minutes.
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 32 | 42 | 5 | 12 | 36 | 135 | -0,9 | 0,83 | 40 |
| 35 | 45 | 5 | 10 | 30 | 150 | -0,9 | 0,89 | 40 |
| 38 | 48,5 | 5,25 | 10 | 30 | 170 | -0,9 | 1,12 | 40 |
| 40 | 50,5 | 5,25 | 10 | 30 | 180 | -0,9 | 1,17 | 40 |
| 45 | 55,5 | 5,25 | 8 | 24 | 200 | -0,9 | 1,3 | 40 |
| 51 | 61,5 | 5,25 | 8 | 24 | 225 | -0,9 | 1,48 | 40 |
| 53 | 64 | 5,5 | 8 | 24 | 250 | -0,9 | 1,58 | 40 |
| 60 | 71 | 5,5 | 7 | 21 | 280 | -0,9 | 1,85 | 40 |
| 70 | 82 | 6 | 7 | 21 | 340 | -0,9 | 2,35 | 40 |
| 80 | 92 | 6 | 6 | 18 | 390 | -0,9 | 2,8 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1 17/64 | 1,65 | 180 | 540 | 5,31 | -26,57 | 0,56 | 131,2 |
| 1 3/8 | 1,77 | 150 | 450 | 5,91 | -26,57 | 0,6 | 131,2 |
| 1 1/2 | 1,91 | 150 | 450 | 6,69 | -26,57 | 0,75 | 131,2 |
| 1 37/64 | 1,99 | 150 | 450 | 7,09 | -26,57 | 0,78 | 131,2 |
| 1 3/4 | 2,19 | 120 | 360 | 7,87 | -26,57 | 0,87 | 131,2 |
| 2 | 2,42 | 120 | 360 | 8,86 | -26,57 | 0,99 | 131,2 |
| 2 3/32 | 2,52 | 120 | 360 | 9,84 | -26,57 | 1,06 | 131,2 |
| 2 23/64 | 2,8 | 105 | 315 | 11,02 | -26,57 | 1,24 | 131,2 |
| 2 3/4 | 3,23 | 105 | 315 | 13,39 | -26,57 | 1,58 | 131,2 |
| 3 5/32 | 3,62 | 90 | 270 | 15,35 | -26,57 | 1,88 | 131,2 |
Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
