MTG BREWART-PLUS

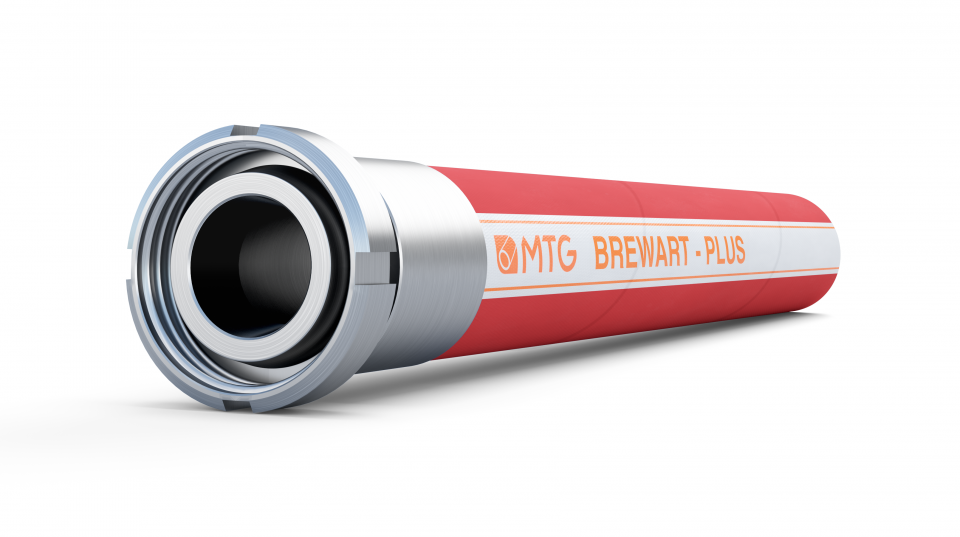

Food hose of latest generation, specifically designed to meet the demanding requirements of the beer processing industry.

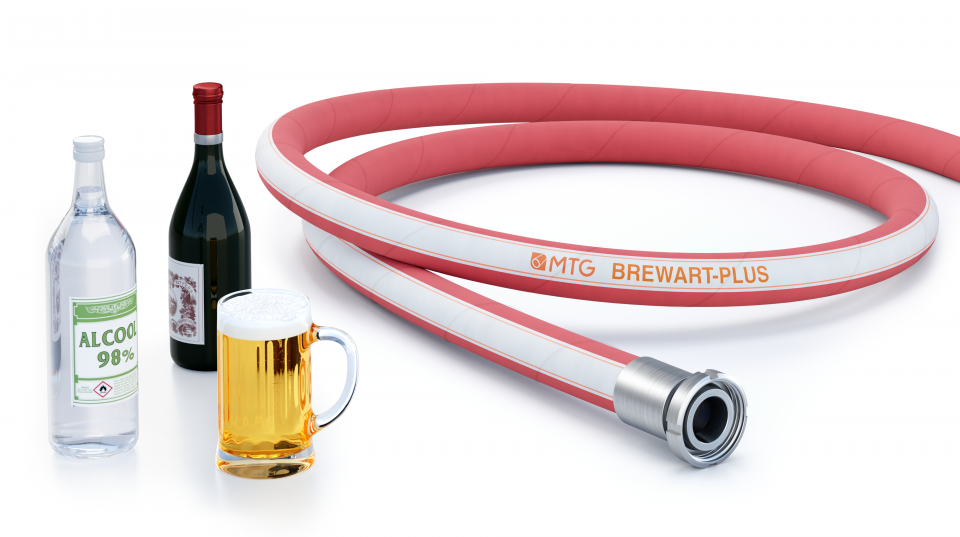

MTG BREWART-PLUS is suitable for conveying high quality raw, pasteurized and organic beer, alcoholic beverages (alcohol content limit at room temperature: 96%), soft drinks and wine.
Delivery and slight suction hose.
It is also suitable for conveying fatty liquid foodstuffs.
Main benefits
- The special structure is free from plasticizers, phthalates and animal derived ingredients, thus reducing the risk of bacterial growth and contamination of the product conveyed.
- The very strong structure makes it perfect for loading and unloading operations in breweries.
- The composition of the cover ensures utmost resistance to aging.
- Hose in accordance with Reg. EC 1935/2004 and Reg. EC 2023/2006 (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

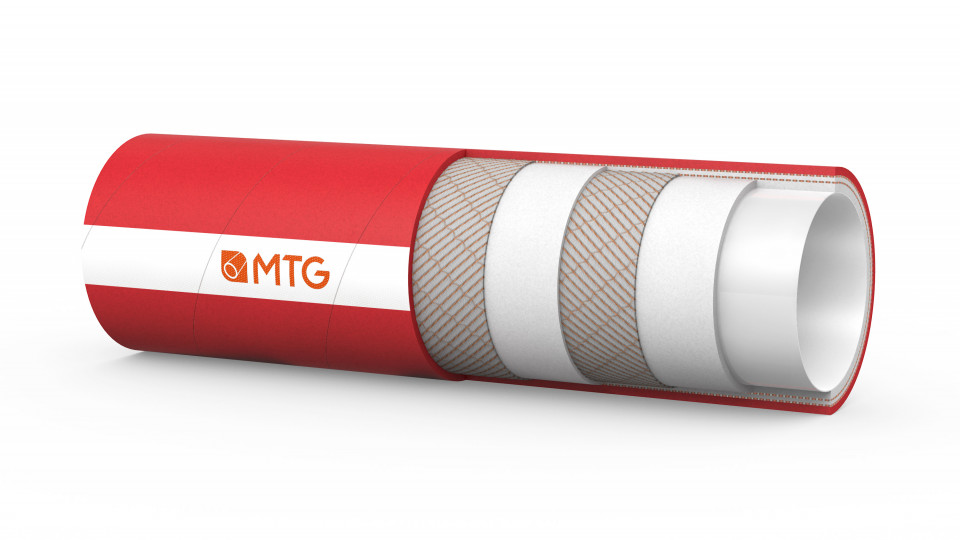

Construcion
TUBE
- UHMWPE (UPE – Ultra High Molecular Weight Polyethylene), light colour, food grade, odourless and tasteless, mirror smooth.
- It complies with FDA Standards, D.M. 21/03/73 and following amendments and Reg. EU 10/2011.
REINFORCEMENT
- Plies of synthetic cord.
COVER
- CR rubber, red colour, resistant to abrasion, ozone and weather, smooth, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -30°C to +90°C.
- Sterilization up to +130°C for max. 30 minutes.

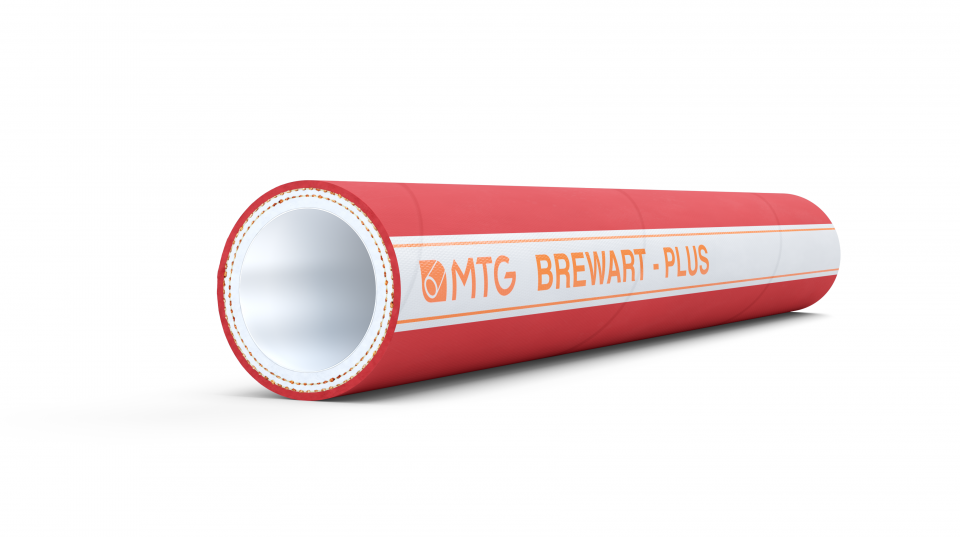

Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius (Static) mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 25 | 37 | 6,0 | 16 | 48 | 150 | -0,8 | 0,74 | 40 |
| 32 | 48 | 8,0 | 16 | 48 | 200 | -0,8 | 1,38 | 40 |
| 40 | 60 | 10,0 | 16 | 48 | 250 | -0,8 | 2,10 | 40 |
| 50 | 72 | 11,0 | 16 | 48 | 350 | -0,8 | 2,95 | 40 |
| 65 | 89 | 12,0 | 16 | 48 | 450 | -0,7 | 4,00 | 40 |
| 75 | 105 | 15,0 | 16 | 48 | 500 | -0,6 | 5,70 | 40 |
| 80 | 110 | 15,0 | 16 | 48 | 650 | -0,6 | 5,90 | 40 |
| 100 | 130 | 15,0 | 16 | 48 | 750 | -0,6 | 6,95 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure PSI |
Burst pressure PSI |
Min. bending radius inch |
Vacuum inHg |
Approx. weight lbs/ft |
Max. length inch |
|---|---|---|---|---|---|---|---|
| 1 | 1,46 | 240 | 720 | 5,91 | -23,62 | 0,50 | 131,2 |
| 1 1/4 | 1,89 | 240 | 720 | 7,87 | -23,62 | 0,93 | 131,2 |
| 1 37/64 | 2,36 | 240 | 720 | 9,84 | -23,62 | 1,41 | 131,2 |
| 1 31/32 | 2,83 | 240 | 720 | 13,78 | -23,62 | 1,98 | 131,2 |
| 2 9/16 | 3,50 | 240 | 720 | 17,72 | -20,67 | 2,68 | 131,2 |
| 2 61/64 | 4,13 | 240 | 720 | 19,69 | -17,71 | 3,82 | 131,2 |
| 3 5/32 | 4,33 | 240 | 720 | 25,59 | -17,71 | 3,96 | 131,2 |
| 3 15/16 | 5,12 | 240 | 720 | 29,53 | -17,71 | 4,66 | 131,2 |
Other diameters and colours of the cover are available upon request. Please contact our Sales Offices. The a.m. technical data are referring to room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
