MTG PURAWATER/ADT

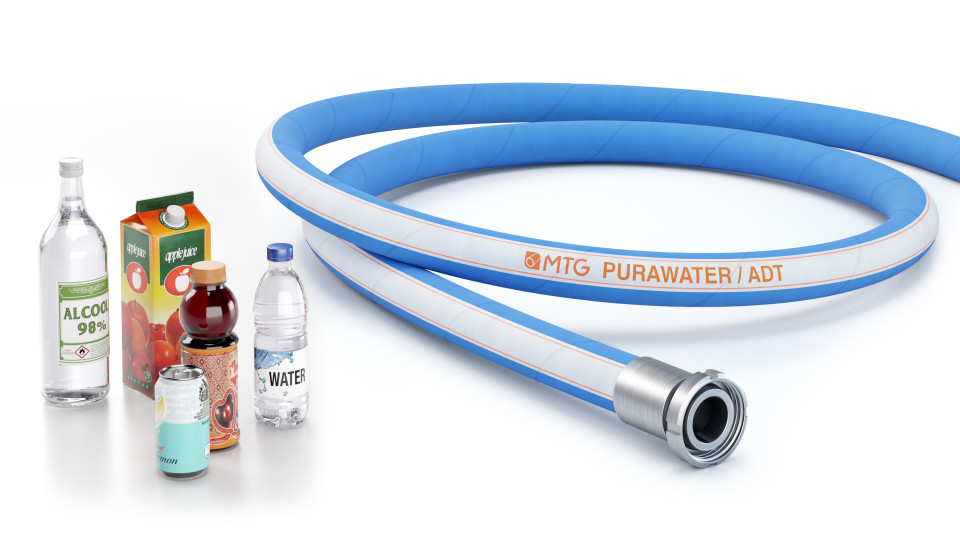

Rubber hose for the delivery of drinking water, alcoholic beverages up
to a concentration of 98%, fruit juices and soft drinks.

More details
Contact us
Data sheet

Main benefits

  • Hose approved by the Institute “Technische Universität München WEIHENSTEPHAN” to respect the organoleptic characteristics of beer, hose certified according to WRAS-BS 6920 Part 1:2014 for delivery of drinking water.
  • The hose complies with the Regulations EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions according to the current European Regulation EC 1907/2006 (REACH).

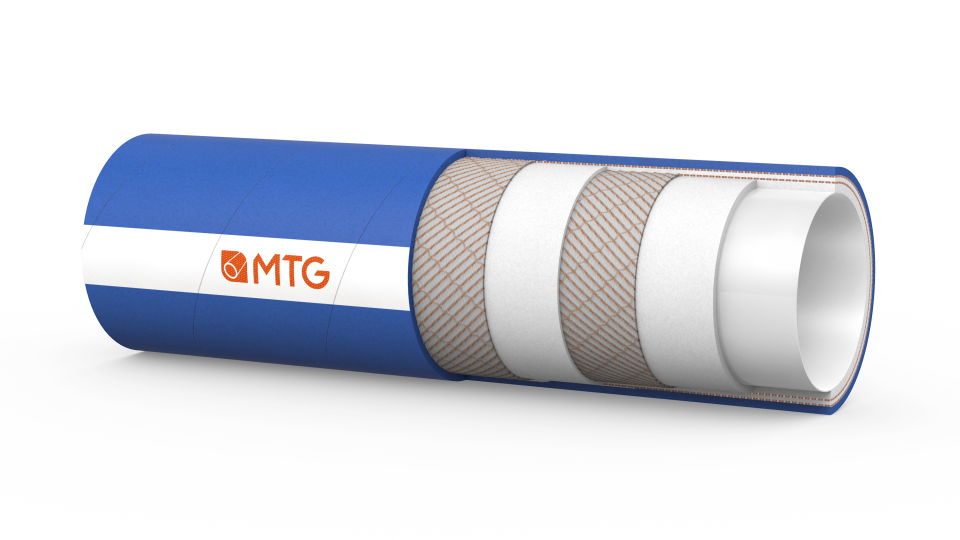

Construcion

TUBE

  • Technopolymer, neutral, mirror-like, smooth. No microbiological contamination.
  • Fully odourless and tasteless.
  • Food compliance in accordance with FDA Standards and Reg. EU 10/2011.

REINFORCEMENT

  • High strength textile plies.

COVER

  • Rubber compound resistant to abrasion, ageing, ozone and weather, blue, smooth, cloth finish.

Safety factors

≥ 3 times working pressure.

Temperatures

From -30°C to +90°C.

Sterilization

Sterilisation with steam up to +130°C for maximum 30 minutes or standard chlorine-based detergents (also concentrated). Hot water cleaning is allowed up to a max. temperature of +95°C for maximum 30 minutes.

Marking

Dimensional tollerance

Inner diameter: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Min. bending radius
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
10 3,5 25 50 – 0,15 40
13 3,5 20 70 – 0,20 40
13 5 20 70 – 0,22 40
16 3,5 16 90 – 0,24 40
19 4 16 120 – 0,33 40
19 6 16 1120 – 0,36 40
25 4,5 16 150 – 0,46 40
25 6 16 150 – 0,55 40
32 6 14 190 – 0,82 40
38 6,5 12 240 – 1,10 40
45 7 10 270 – 1,30 40
50 7 10 300 – 1,40 40
65 8 10 450 – 2 40
75 8 10 600 – 2,30 40
100 8 10 800 – 3,20 40

Chemical resistance acc. to MTG Chemical Resistance Chart. Other sizes are available upon request. Above technical data are based on application at room temperature (+20°C).

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
