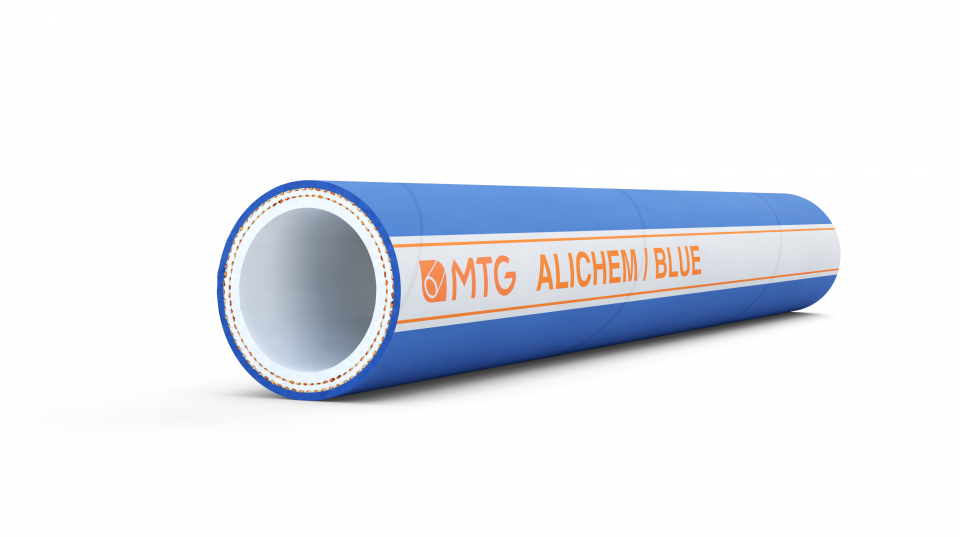

ALICHEM/BLUE

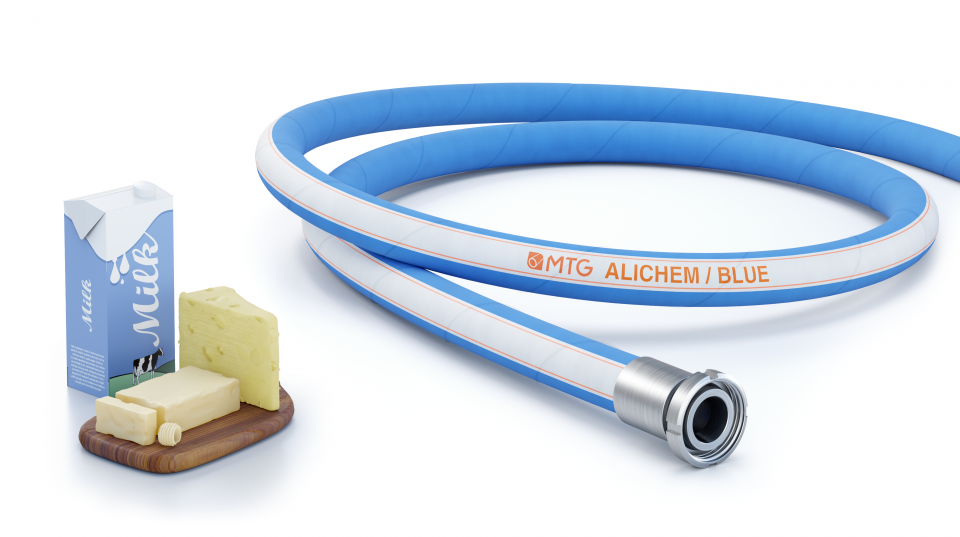

High quality rubber hose, perfect for handling beverages such as wine,
fruit juice, beer, drinking water.Also suitable for milk and milk products.Delivery hose.
Main benefits
- The composition of its inner liner makes it highly resistant to acids and bases with medium concentration.
- Perfect solution for applications requiring an excellent temperature resistance.
- ALICHEM/BLUE provides a high resistance to usual commercial cleaning and disinfection products used in food sanitation processes.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

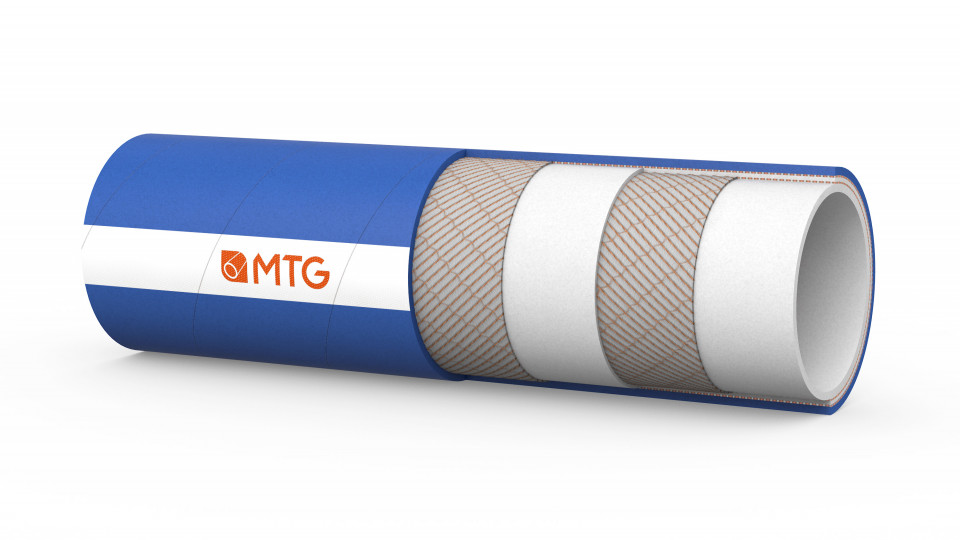

Construcion
TUBE
- EPDM rubber (code 58 BI), light colour, odourless and tasteless, mirror-smooth.
- Compliance: 3A, FDA Standards, D.M. 21/03/73 and following amendments, BfR recommendations (Cat. II).
REINFORCEMENT
- Plies of synthetic cord.
COVER
- Synthetic rubber, blue colour, smooth, abrasion and weather resistant, cloth finish.
Safety factors
- ≥ 3 times working pressure
Temperatures
- From -40°C to +120°C.
Sterilization
- Sterilization up to +140°C for max. 30 minutes.

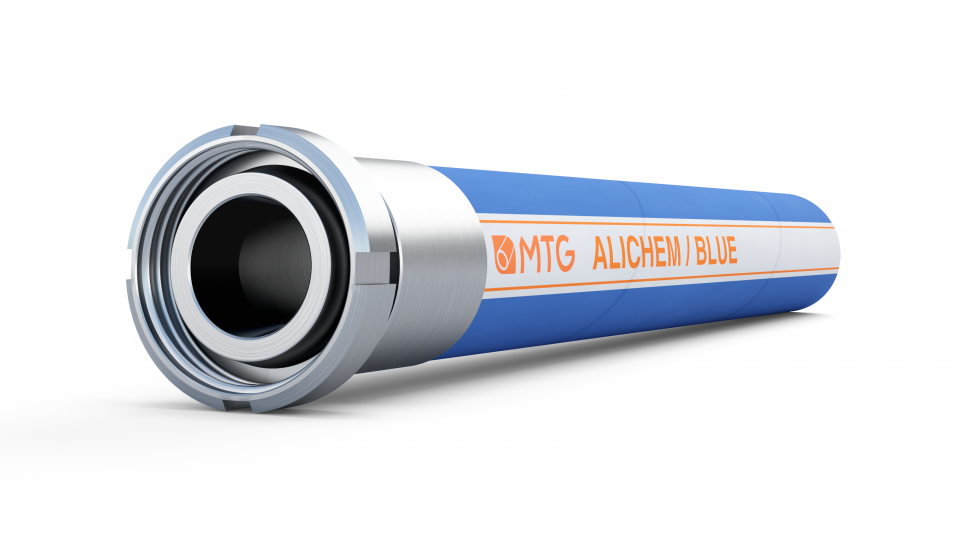

- In case of long lasting sterilizations we suggest to use the model with vulcanized couplings at the ends.
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6 | 15 | 45 | 120 | -0,5 | 0,57 | 40 |
| 25 | 37 | 6 | 15 | 45 | 150 | -0,5 | 0,71 | 40 |
| 32 | 48 | 8 | 15 | 45 | 250 | -0,5 | 1,16 | 40 |
| 40 | 60 | 10 | 15 | 45 | 290 | -0,4 | 1,81 | 40 |
| 50 | 70 | 10 | 15 | 45 | 400 | -0,4 | 2,18 | 40 |
| 63,5 | 87,5 | 12 | 15 | 45 | 520 | -0,4 | 3,3 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 225 | 675 | 4,72 | -14,76 | 0,38 | 131,2 |
| 1 | 1,46 | 225 | 675 | 5,91 | -14,76 | 0,48 | 131,2 |
| 1 1/4 | 1,89 | 225 | 675 | 9,84 | -14,76 | 0,78 | 131,2 |
| 1 37/64 | 2,36 | 225 | 675 | 11,42 | -11,81 | 1,21 | 131,2 |
| 1 31/32 | 2,76 | 225 | 675 | 15,75 | -11,81 | 1,46 | 131,2 |
| 2 1/2 | 3,44 | 225 | 675 | 20,47 | -11,81 | 2,21 | 131,2 |
Other sizes and colours are available on request. Please contact our Sales Department.
Above technical data are referring to application at room temperature (+20°C).
