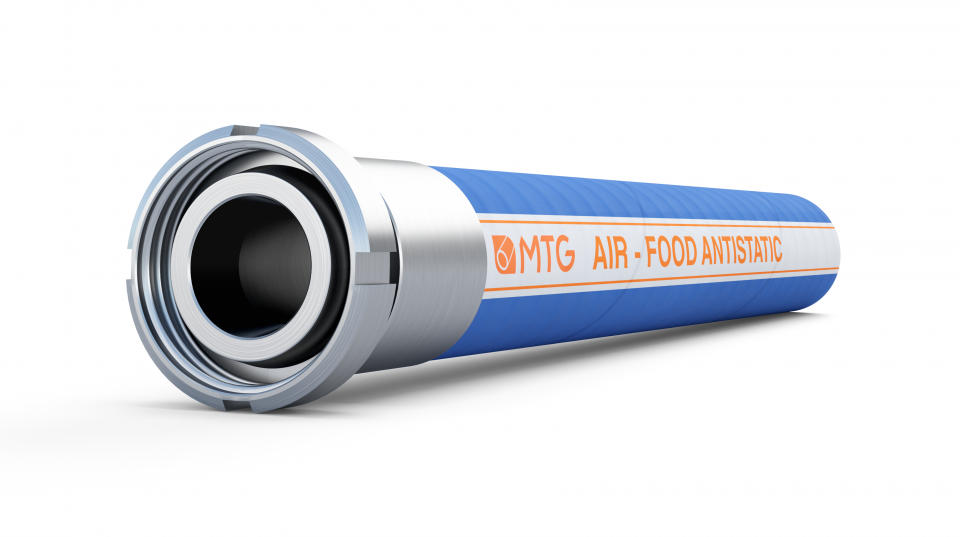

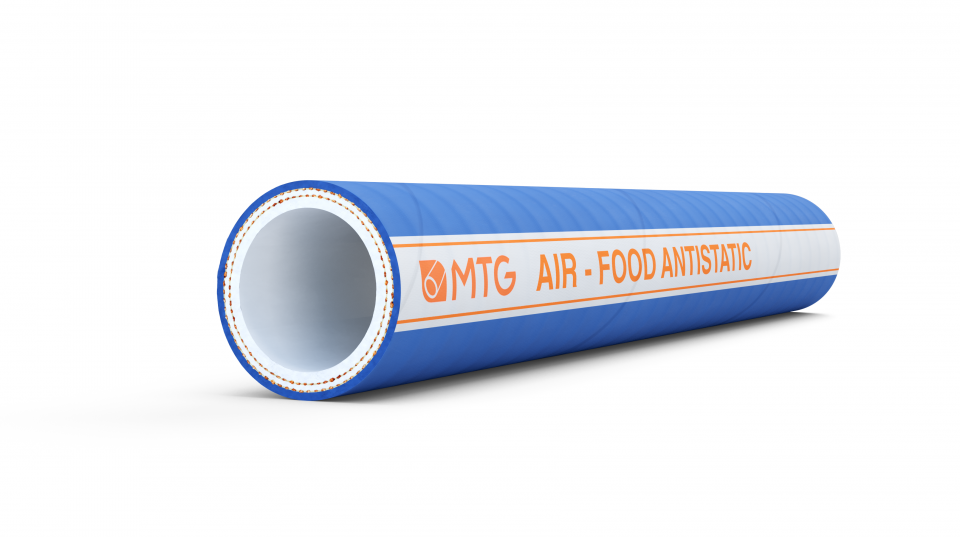

AIR-FOOD ANTISTATIC

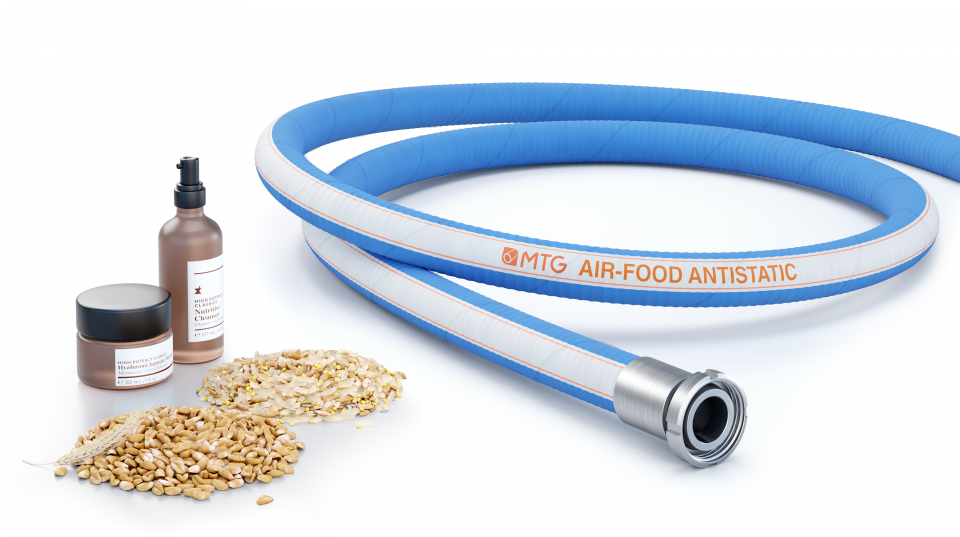

Perfect solution for conveying fatty and fat-free powdery foodstuff such as sugar, wheat, milk powder, flour etc., as well as fluids like alcohol, cosmetic products and other flammable products for the food and chemical industry.
Suction and delivery hose.
Main benefits
- It may be used in ATEX zones 0.1.2 and 20.21.22.
- Structure free from plasticizers and animal derived ingredients, thus reducing the risk of bacterial growth and contamination of the product conveyed.
- Especially suitable for applications with a small bending radius, with the advantage of providing a handy and highly flexible structure.
- The tube is resistant to chemical cleaning products and to the most common disinfection processes used in the food industry.
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

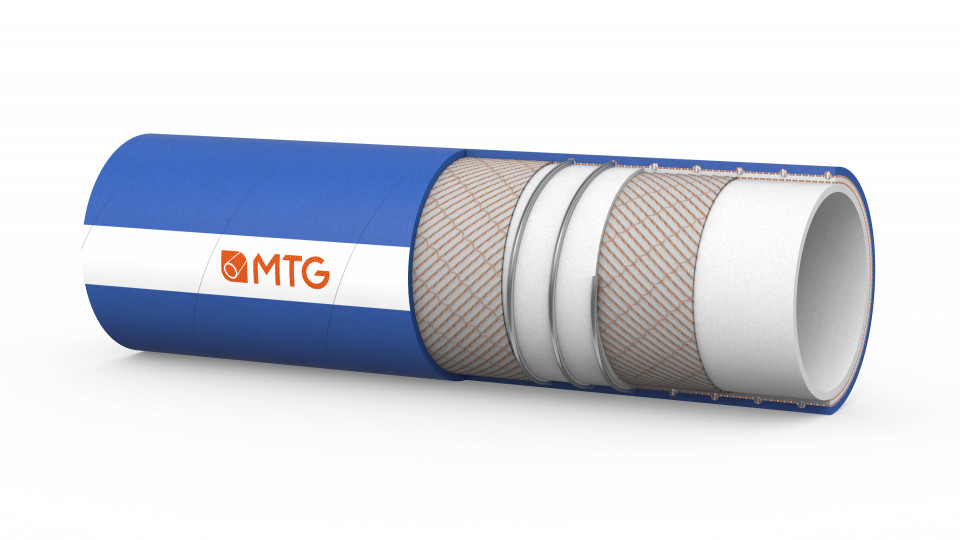

Construcion
- Tube and cover are antistatic: R< 10^9 Ω/m.
TUBE
- NBR rubber (code NBR P.190), light colour, food quality, odourless and tasteless, mirror-smooth and antistatic.
- Compliance: FDA Standards.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
COVER
- Synthetic rubber, blue colour, resistant to abrasion, weather and ageing, smooth, cloth finish and antistatic.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -20°C to +90°C.
- Sterilization up to +130°C for max. 30 minutes.
Note
On demand:
- Version with black conductive cover R<10^6 Ω/m.
- Softwall version, our model Air-Food Antistatic D15.
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 19 | 30 | 5,5 | 10 | 30 | -0,9 | 0,6 | 40 |
| 25 | 36 | 5,5 | 10 | 30 | -0,9 | 0,74 | 40 |
| 32 | 43 | 5,5 | 10 | 30 | -0,9 | 0,9 | 40 |
| 38 | 50 | 6 | 10 | 30 | -0,9 | 1,2 | 40 |
| 40 | 52 | 6 | 10 | 30 | -0,9 | 1,25 | 40 |
| 45 | 57 | 6 | 10 | 30 | -0,9 | 1,5 | 40 |
| 50 | 62 | 6 | 10 | 30 | -0,9 | 1,55 | 40 |
| 65 | 78 | 6,5 | 10 | 30 | -0,9 | 2,2 | 40 |
| 75 | 89 | 7 | 10 | 30 | -0,9 | 2,55 | 40 |
| 100 | 115 | 7,5 | 10 | 30 | -0,9 | 4,25 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,18 | 150 | 450 | 1,97 | -26,57 | 0,4 | 131,2 |
| 1 | 1,42 | 150 | 450 | 2,95 | -26,57 | 0,5 | 131,2 |
| 1 1/4 | 1,69 | 150 | 450 | 3,15 | -26,57 | 0,6 | 131,2 |
| 1 1/2 | 1,97 | 150 | 450 | 4,33 | -26,57 | 0,8 | 131,2 |
| 1 37/64 | 2,05 | 150 | 450 | 4,72 | -26,57 | 0,84 | 131,2 |
| 1 49/64 | 2,24 | 150 | 450 | 5,12 | -26,57 | 1,01 | 131,2 |
| 1 31/32 | 2,44 | 150 | 450 | 5,91 | -26,57 | 1,04 | 131,2 |
| 2 9/16 | 3,07 | 150 | 450 | 7,48 | -26,57 | 1,48 | 131,2 |
| 2 61/64 | 3,5 | 150 | 450 | 8,66 | -26,57 | 1,71 | 131,2 |
| 3 15/16 | 4,53 | 150 | 450 | 19,69 | -26,57 | 2,85 | 131,2 |
Other sizes are available upon request.
Please contact our Sales Department. Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
