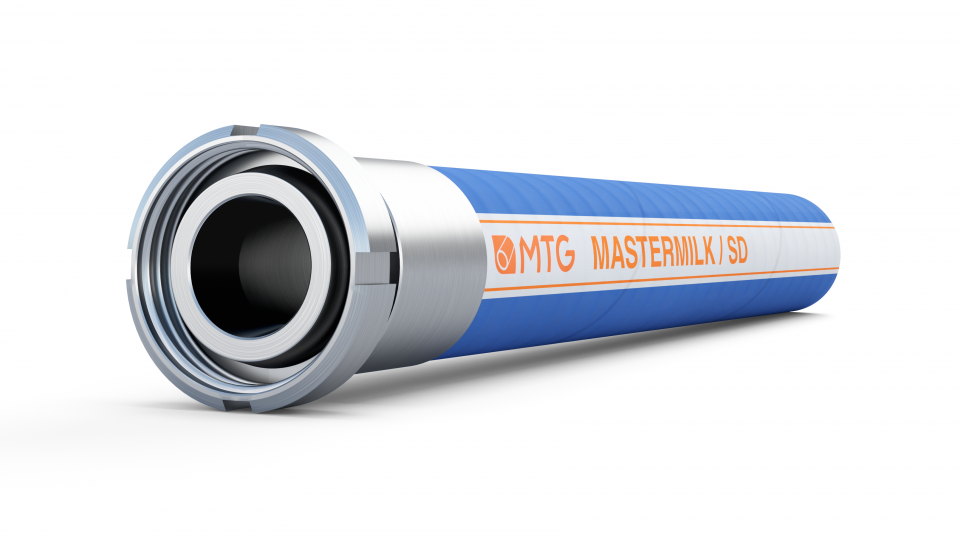

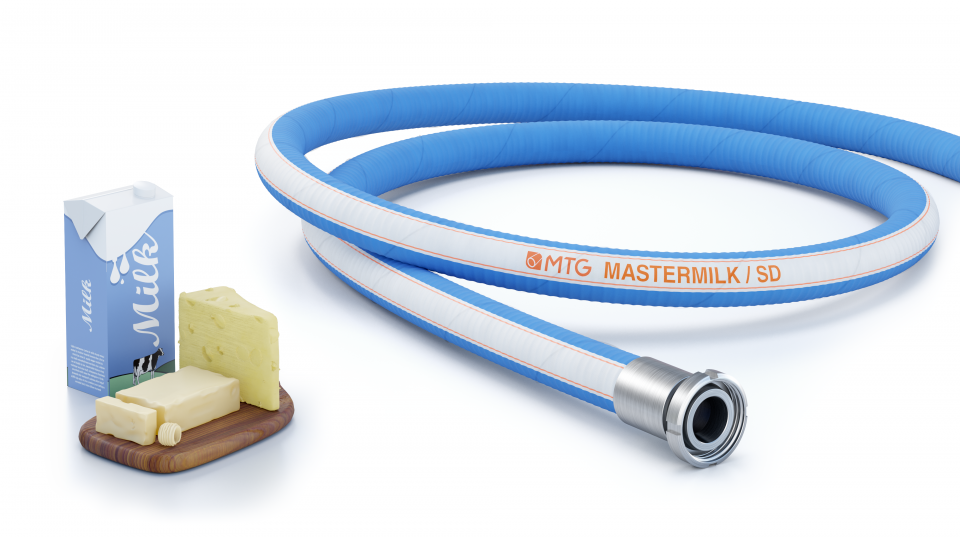

MASTERMILK/SD
Rubber hose suitable for conveying fatty and fat-free foodstuff.
Perfect solution for use in dairy equipments and unloading platforms requiring flexibility and resistance to light and medium-duty applications.
Suction and delivery hose.
Main benefits
- Especially suitable for applications with a small bending radius, with the advantage of providing a handy and highly flexible structure.
- The tube is resistant to chemical cleaning products and to the most common disinfection processes used in the food industry.
- The cover provides a good resistance to ageing and short contact with animal and vegetable fats.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
- Non plasticized hose.

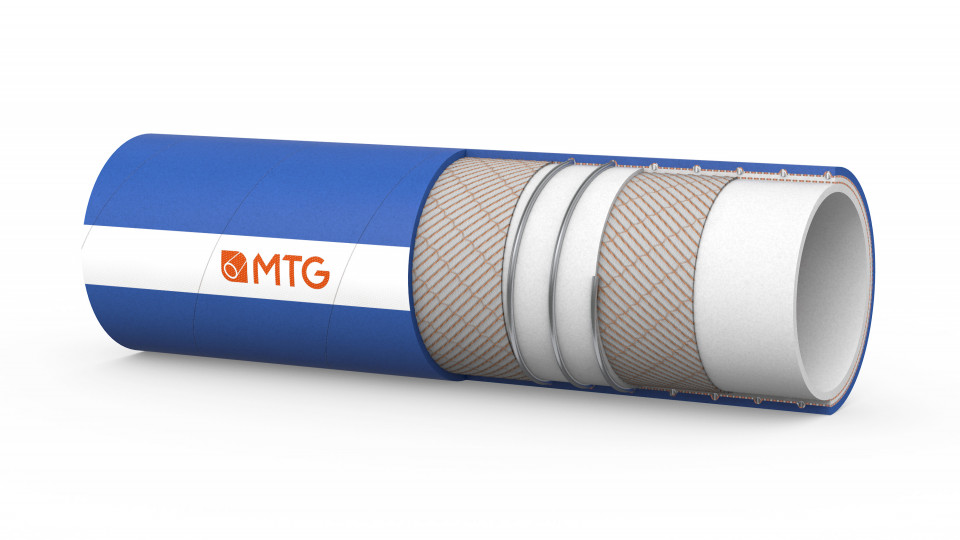

Construcion
TUBE
- NBR rubber (code NAB90), light colour, food quality, odourless and tasteless, mirror-smooth.
- Compliance: 3-A Sanitary Standards n.18-03-Class II, FDA Standards, Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments.
REINFORCEMENT
- Plies of synthetic cord.
- Embedded steel helix wire.
COVER
- Synthetic rubber, blue colour, resistant to abrasion, weather and ageing, smooth, cloth finish.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -20°C to +90°C depending on the product conveyed and on use.
Note
- Softwall version type MASTERMILK/D (W.P. 15 bar) available upon request.
Sterilization
- Please refer to the MTG cleaning and sterilization guidlines.

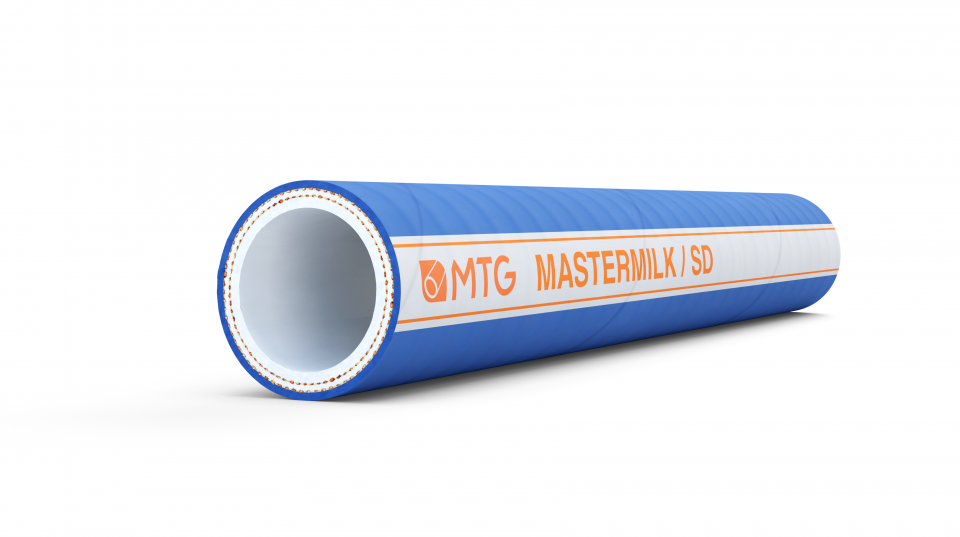

Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 30 | 5,5 | 10 | 30 | 50 | -0,9 | 0,6 | 40 |
| 25 | 36 | 5,5 | 10 | 30 | 75 | -0,9 | 0,74 | 40 |
| 32 | 43 | 5,5 | 10 | 30 | 80 | -0,9 | 0,9 | 40 |
| 38 | 50 | 6 | 10 | 30 | 110 | -0,9 | 1,2 | 40 |
| 40 | 52 | 6 | 10 | 30 | 120 | -0,9 | 1,25 | 40 |
| 45 | 57 | 6 | 10 | 30 | 130 | -0,9 | 1,5 | 40 |
| 50 | 62 | 6 | 10 | 30 | 150 | -0,9 | 1,55 | 40 |
| 65 | 78 | 6,5 | 10 | 30 | 190 | -0,9 | 2,2 | 40 |
| 75 | 89 | 7 | 10 | 30 | 220 | -0,9 | 2,55 | 40 |
| 100 | 115 | 7,5 | 10 | 30 | 500 | -0,9 | 4,25 | 40 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,18 | 150 | 450 | 1,97 | -26,57 | 0,4 | 131,2 |
| 1 | 1,42 | 150 | 450 | 2,95 | -26,57 | 0,5 | 131,2 |
| 1 1/4 | 1,69 | 150 | 450 | 3,15 | -26,57 | 0,6 | 131,2 |
| 1 1/2 | 1,97 | 150 | 450 | 4,33 | -26,57 | 0,8 | 131,2 |
| 1 37/64 | 2,05 | 150 | 450 | 4,72 | -26,57 | 0,84 | 131,2 |
| 1 49/64 | 2,24 | 150 | 450 | 5,12 | -26,57 | 1,01 | 131,2 |
| 1 31/32 | 2,44 | 150 | 450 | 5,91 | -26,57 | 1,04 | 131,2 |
| 2 9/16 | 3,07 | 150 | 450 | 7,48 | -26,57 | 1,48 | 131,2 |
| 2 61/64 | 3,5 | 150 | 450 | 8,66 | -26,57 | 1,71 | 131,2 |
| 3 15/16 | 4,53 | 150 | 450 | 19,69 | -27,57 | 2,85 | 131,2 |
Other sizes and colours are available upon request. Please contact our Sales Department.
Above technical data refer to application at room temperature (+20°C).
