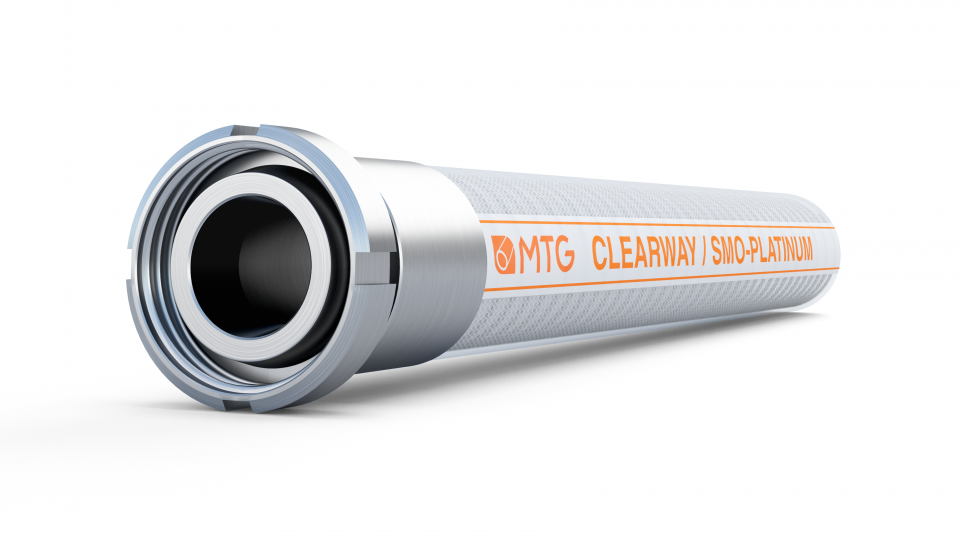

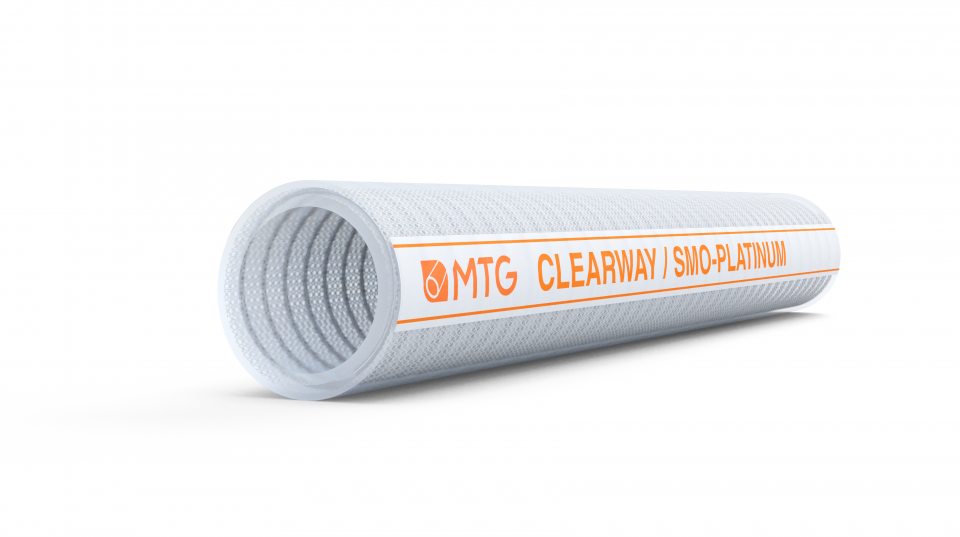

MTG CLEARWAY/SMO-PLATINUM
Silicone hose for suction of air mixed with high purity products.
Suitable for process applications requiring a tight bending radius and easy handling.

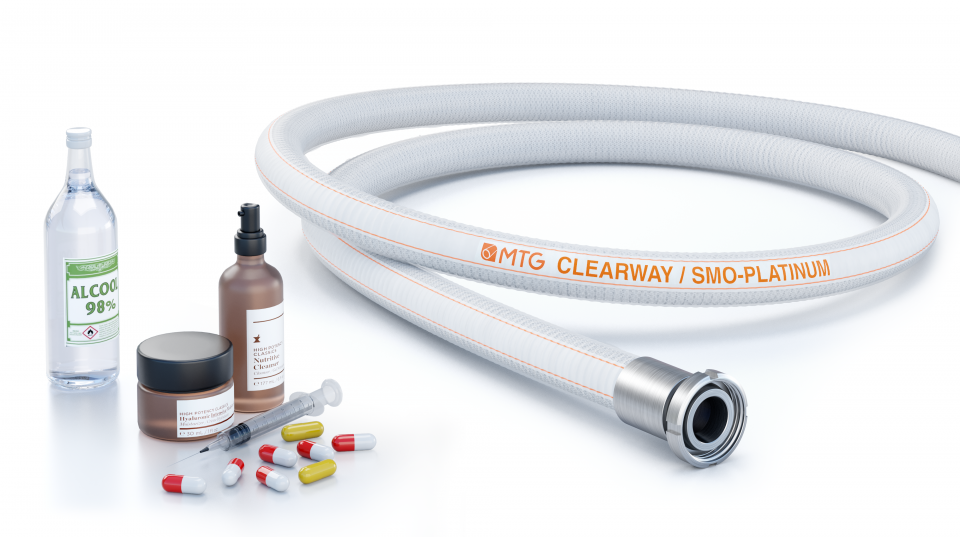

Normally used in pharmaceutical and cosmetic industries.
Main benefits
- Platinum-cured silicone hose with non-stick properties.
- Safe solution for use in the aseptic environments and sanitary applications: utmost care is used starting from the choice of high-purity ingredients, production and storing procedures.
- Pharma-grade validation: tested in accordance with USP Class VI and EU Pharmacopoeia.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP). The MTG production cycle is free from animal derived ingredients, phthalates, adipates nitrosamines, and materials subject to restrictions acc. to EC 1907/2006 (REACH).
- Non-plasticized hose.

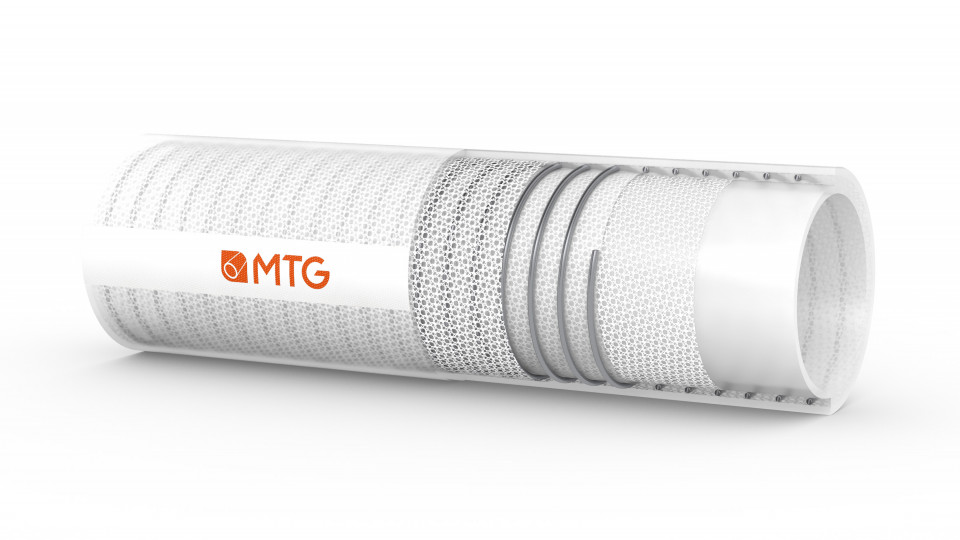

Construcion
TUBE
- Translucent silicone rubber (code silicone PT3362), pharmaceutical and food quality, odourless and tasteless, mirror-smooth.
REINFORCEMENT
- High strength plies of synthetic cord.
- Embedded stainless steel helix wire AISI 302.
COVER
- Translucent silicone rubber (code silicone PT3362), pharmaceutical and food quality.
Temperatures
- From -60°C to +200°C.
Sterilization
- Open circuit sterilization with steam: +135°C.
- Sterilization with hot air: +200°C for max. 30 minutes.
- Sterilizations repeated more often than every hour may seriously affect the mechanical properties of the hose.
Norms
- US Pharmacopoeia Class VI, non-cytotoxic acc. to ISO 10993-Part 5.
- Compliance: FDA, BfR, E.P. 3.1.9. (European Pharmacopoeia).
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: +1/-0.5 mm – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 25 | 30 | 2,5 | – | – | 50 | -0,7 | 0,214 | 10 |
| 32 | 37 | 2,5 | – | – | 64 | -0,7 | 0,305 | 10 |
| 38 | 43 | 2,5 | – | – | 80 | -0,7 | 0,317 | 10 |
| 40 | 45 | 2,5 | – | – | 80 | -0,7 | 0,4 | 10 |
| 50 | 56 | 3 | – | – | 125 | -0,7 | 0,482 | 10 |
| 60 | 66 | 3 | – | – | 180 | -0,7 | 0,62 | 10 |
| 63,5 | 70,1 | 3,3 | – | – | 190 | -0,7 | 0,708 | 10 |
| 75 | 82 | 3,5 | – | – | 225 | -0,7 | 1,305 | 10 |
| 80 | 88 | 4 | – | – | 240 | -0,7 | 1,51 | 10 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1 | 1,18 | – | – | 1,97 | -20,67 | 0,14 | 32,8 |
| 1 1/4 | 1,46 | – | – | 2,05 | -20,67 | 0,2 | 32,8 |
| 1 1/2 | 1,69 | – | – | 2,36 | -20,67 | 0,21 | 32,8 |
| 1 4/7 | 1,77 | – | – | 2,6 | -20,67 | 0,27 | 32,8 |
| 2 | 2,2 | – | – | 3,39 | -20,67 | 0,32 | 32,8 |
| 2 1/3 | 2,6 | – | – | 4,33 | -20,67 | 0,42 | 32,8 |
| 2 1/2 | 2,76 | – | – | 5,12 | -20,67 | 0,48 | 32,8 |
| 3 | 3,23 | – | – | 7,87 | -20,67 | 0,88 | 32,8 |
| 3 1/7 | 3,46 | – | – | 9,84 | -20,67 | 1,01 | 32,8 |
Chemical resistance acc. to MTG Chemical Resistance Chart. Above technical data refer to application at room temperature (+20°C).
Other sizes are available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
