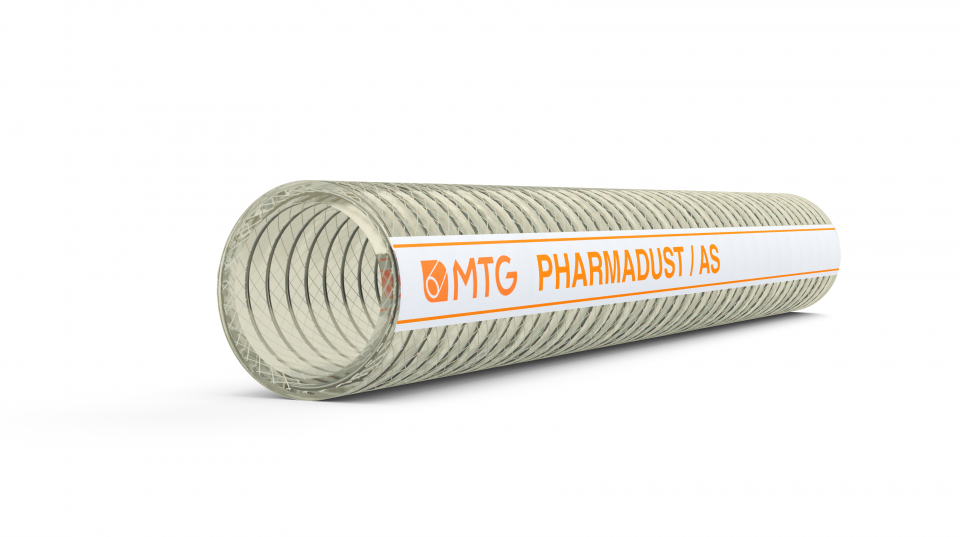

MTG PHARMADUST/AS

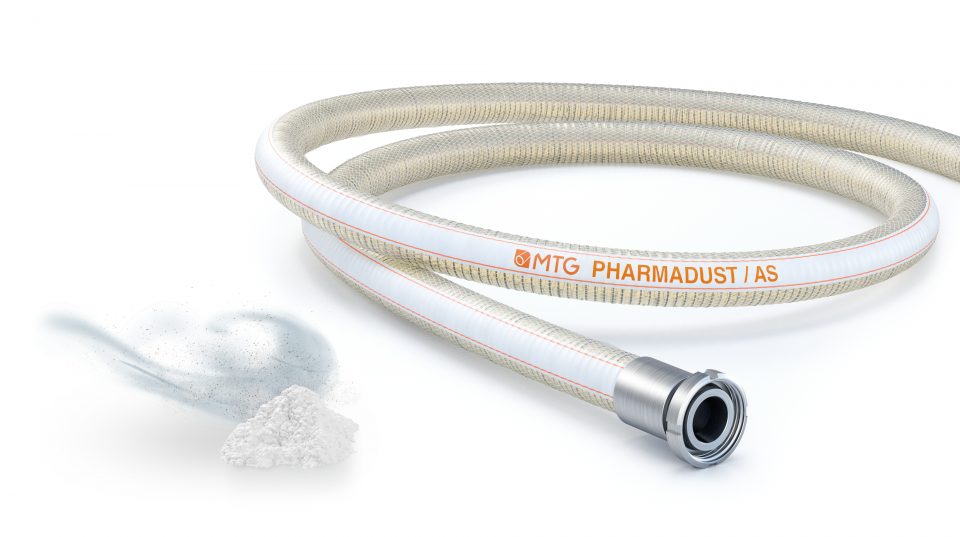

PHARMADUST/AS is a suction and delivery hose, specifically designed for conveying air mixed with powders.
Normally used in the pharmaceutical and food industry.
Tube designed and developed to ensure dissipation of electrostatic charges, with resistance R< 109 Ω.
Main benefits
- The inner surface of the hose, smooth and compact, makes easy the flow of the products conveyed and the cleaning operations. Excellent resistance to abrasion.
- See-through construction for easy visual inspection of the media conveyed.
- Light and easy to handle.
- Hose in accordance with the Regulations EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG productive cycle does not employ phthalates, plasticizers, animal derived ingredients, and nitrosamines, thus reducing the risk of bacterial growth and contamination of the product conveyed.
- Non-plasticized hose.

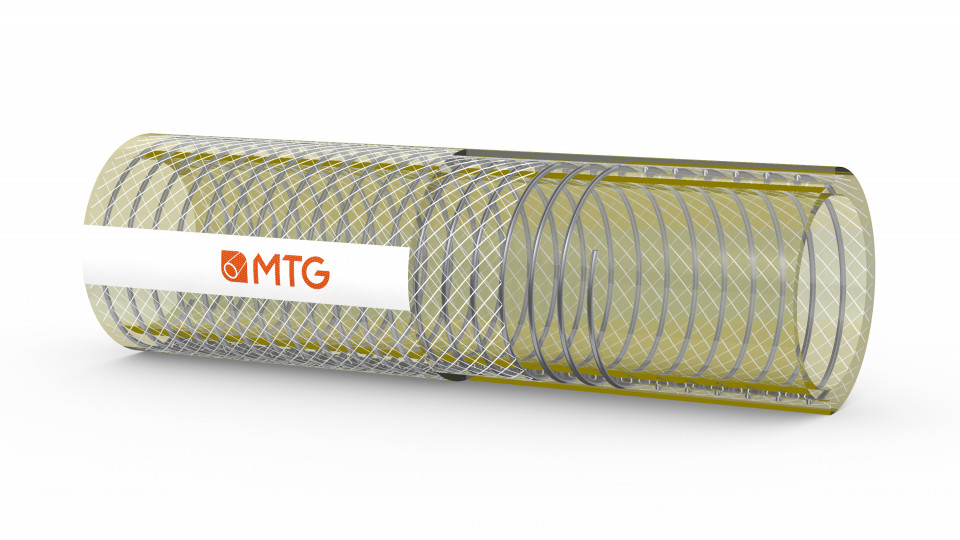

Construcion
TUBE
- Technopolymer (code 3G26AU), fully see-through, odourless and tasteless, mirror-smooth.
- Abrasion loss: < 36 mm3 according to DIN 53516.
- Resistance: R< 109 Ω.
REINFORCEMENT
- High strength plies of synthetic cord.
- Steel helix wire INOX AISI 302.
COVER
- Technopolymer (code 3G26AU), fully see-through, odourless and tasteless, smooth, glossy finish.
- Resistant to abrasion and ozone.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -10°C to +85°C.
- Cleaning with water (up to +100°C without pressure) mixed with a normal mild cleaning product.
Fitting

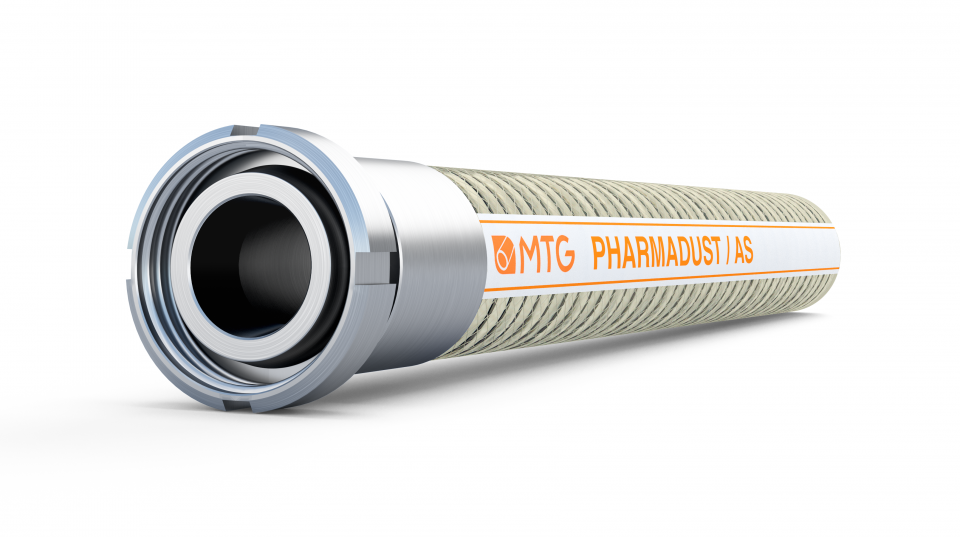

- The hose may be supplied in application lengths and assembled with any kind of couplings (CLAMP, DIN 11851, etc.).
- Only for hose assemblies: test of electric continuity between the couplings (R<102 Ω) according to EN 8031.
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 25 | 33 | 4 | 6 | 18 | 150 | -0,9 | 0,52 | 20 |
| 38 | 46 | 4 | 6 | 18 | 230 | -0,9 | 0,99 | 20 |
| 50 | 58,5 | 4,25 | 5 | 15 | 300 | -0,9 | 1,37 | 20 |
| 63,5 | 72 | 4,25 | 4 | 12 | 400 | -0,9 | 1,99 | 10 |
| 76 | 85 | 4,5 | 4 | 12 | 490 | -0,8 | 2,29 | 10 |
| 100 | 112 | 6 | 3 | 9 | 700 | -0,8 | 3,71 | 10 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 1 | 1,3 | 90 | 270 | 5,91 | -26,57 | 0,35 | 65,6 |
| 1 1/2 | 1,81 | 90 | 270 | 9,06 | -26,57 | 0,67 | 65,6 |
| 1 31/32 | 2,3 | 75 | 225 | 11,81 | -26,57 | 0,92 | 65,6 |
| 2 1/2 | 2,83 | 60 | 180 | 15,75 | -26,57 | 1,34 | 32,8 |
| 3 | 3,35 | 60 | 180 | 19,29 | -23,62 | 1,54 | 32,8 |
| 3 15/16 | 4,41 | 45 | 135 | 27,56 | -23,62 | 2,49 | 32,8 |
Other sizes and colours are available upon request. Please contact our Sales Dept. Above technical data refer to application at room temperature (+20°C).
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
