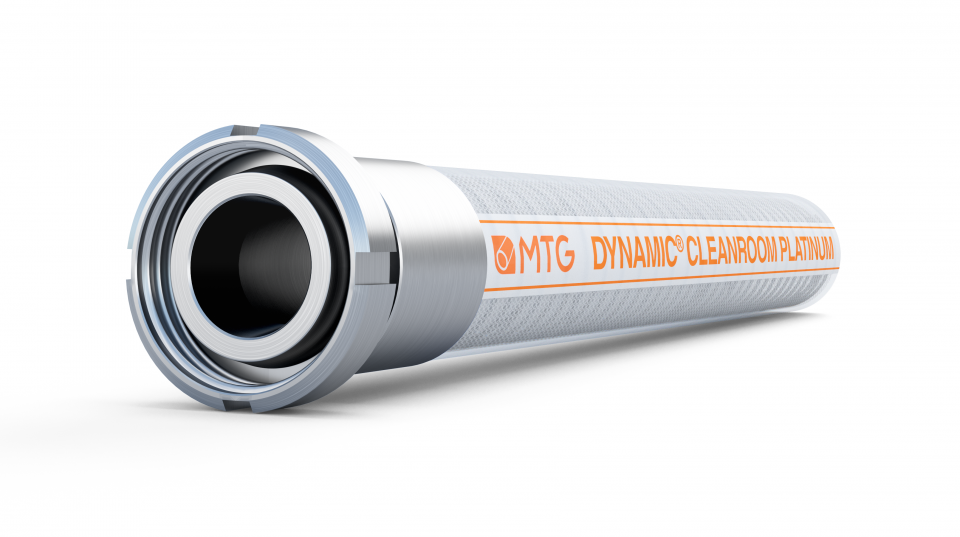

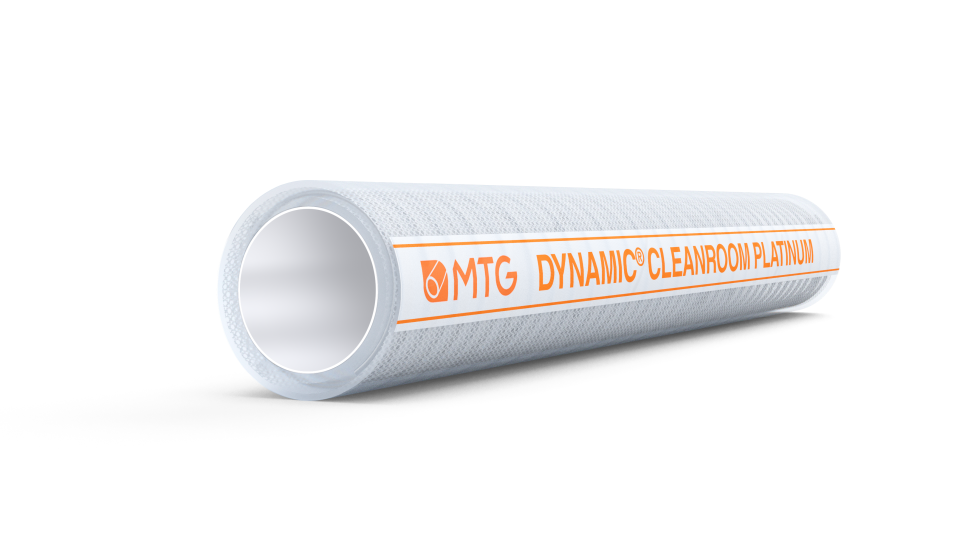

DYNAMIC® CLEANROOM PLATINUM

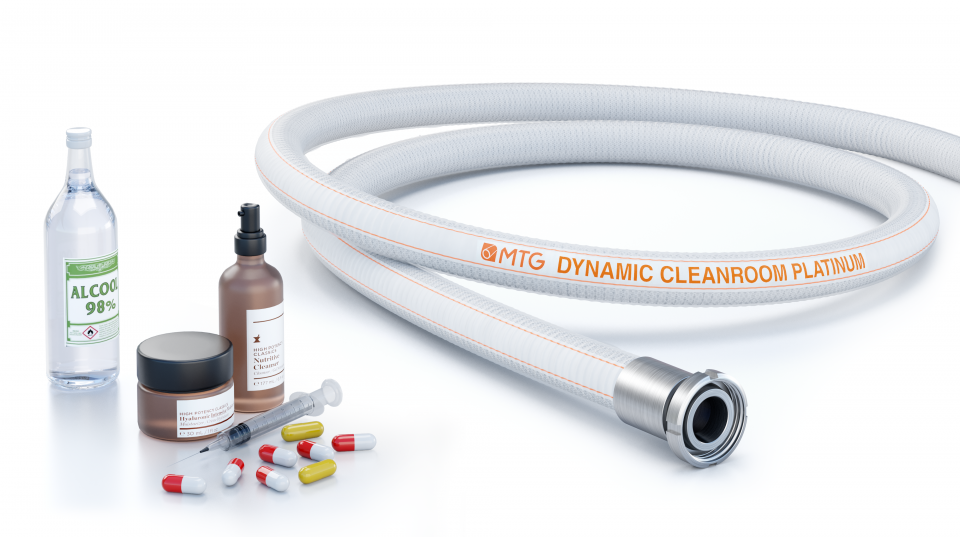

Multipurpose hose designed to ensure utmost purity during transport of pharmaceutical, cosmetic, food and chemical products in aseptic areas.

Specifically engineered to combine the technical benefits of a perfluoropolymer with the elasticity and heat resistance of silicone.

PATENT: E.P. 1450092

More details
Contact us
Data sheet

Main benefits

  • Platinum-cured silicone cover with non-stick properties.
  • Fluorinated, ultra-smooth inert liner, embedded into a high purity structure.
  • Made in Cleanroom ISO 14644-1 Class 8.
  • High flexibility, even under high and low temperature conditions, and excellent resistance of the structure to dynamic stress.
  • Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
  • The MTG production cycle is free from animal derived ingredients, phthalates, adipates, nitrosamines, and materials subject to restrictions according to EC 1907/2006 (REACH).

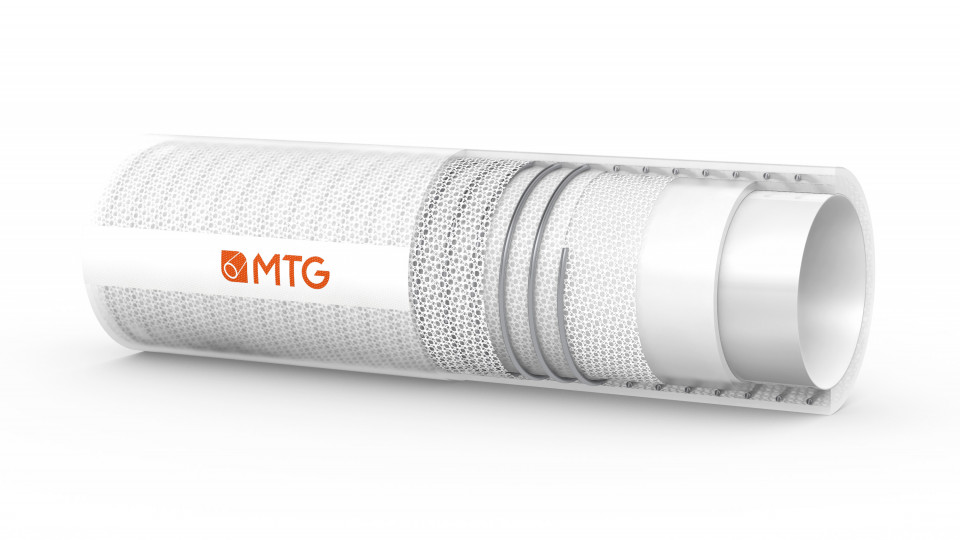

Construcion

TUBE

  • PFA (Perfluoroalkoxy), fully fluorinated, white colour, mirror-smooth. Odourless and tasteless.
  • Excellent flex-performance (resistance to repeated bending cycles in accordance with ASTM D 2176).
  • Compliance: USP Class VI, 3-A Sanitary Standards 18-03-Class I, FDA Standards, D.M. 21/03/73 and following amendments, Regulation EU n. 10/2011, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5, ICH Q3D.

REINFORCEMENTS

  • High strength plies of synthetic cord and embedded stainless steel helix wire.
  • It may be supplied with copper wires upon request.

COVER:

  • Translucent silicone rubber (code: silicone 3362PT), ultra smooth and glossy finish.
  • It may be easily cleaned with any mild detergent.
  • Special finish with a low coefficient of friction.
  • Compliance: USP Class VI, 3-A Sanitary Standards 18-03-Class I, FDA Standards, BfR, European Pharmacopoeia 3.1.9, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -30° C to +150°C depending on the fluids conveyed.

Note

  • We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.

Sterilization

  • Sterilizzazioni con vapore +135°C, a 3.5 bar per un massimo di 30 minuti.

Marking

Dimensional tollerance

I.D.: ISO 1307 – Wall thickness: ± 0.8 mm – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Wall thickness
mm		 Working pressure
BAR		 Burst pressure
BAR		 Raggio curvatura min.(Static)
mm		 Min. bending radius.(Dynamic)
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
13 25 6 10 30 45 60 -0,9 0,42 20
16 28 6 10 30 55 75 -0,9 0,57 20
19 31 6 10 30 65 90 -0,9 0,65 30
25 37 6 10 30 85 140 -0,9 0,8 30
32 44 6 10 30 120 200 -0,9 1 30
38 51 6,5 10 30 140 250 -0,9 1,27 30
51 67 8 10 30 180 300 -0,9 1,98 30
63,5 79,5 8 5 15 320 380 -0,9 2,53 20
76 92 8 5 15 380 460 -0,9 3,62 20
100: 118 9 3 9 500 600 -0,9 5,02 20
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius.(Static)
inch		 Min. bending radius.(Dynamic)
mm		 Vacuum
BAR		 Approx. weight
kg/m		 Max. length
m
1/2 0,98 150 450 1,77 2,36 -26,57 0,28 65,6
5/8 1,1 150 450 2,17 2,95 -26,57 0,38 65,6
3/4 1,22 150 450 2,56 3,54 -26,57 0,44 98,4
1 1,46 150 450 3,35 5,51 -26,57 0,54 98,4
1 1/4 1,73 150 450 4,73 7,88 -26,57 0,67 98,4
1 1/2 2 150 450 5,51 9,8 -26,57 0,85 98,4
2 2,64 45 270 7,09 11,81 -26,57 1,33 98,4
2 1/2 3,13 75 225 12,6 14,96 -26,57 1,7 65,6
3 3,62 60 180 14,96 18,11 -26,57 2,43 65,6
3 15/16 4,65 45 135 19,69 23,62 -26,57 3,37 65,6

Above technical data are referring to application at room temperature (+20°C).
Chemical resistance according to MTG Chemical Resistance Chart.
Other sizes available upon request. Please contact our Sales Department.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
