MTG PHARMATECH

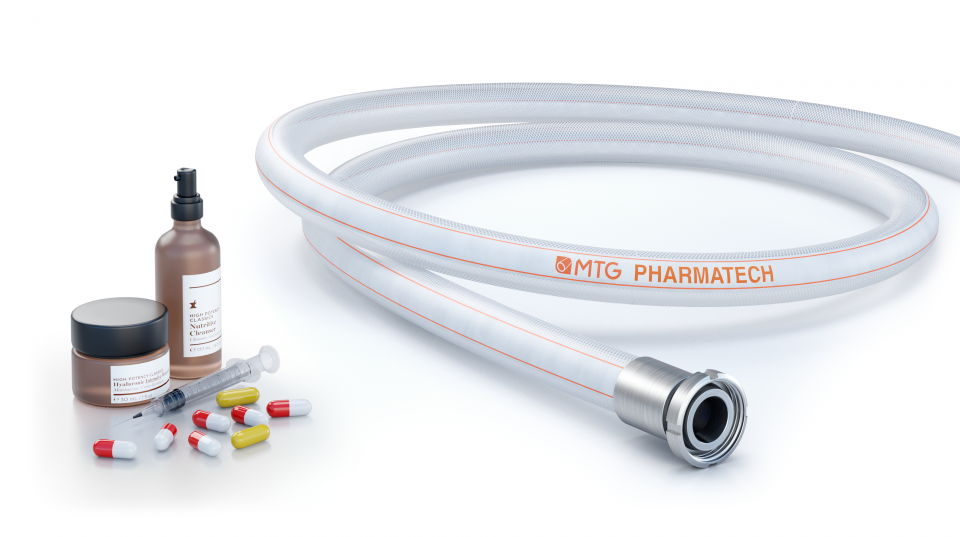

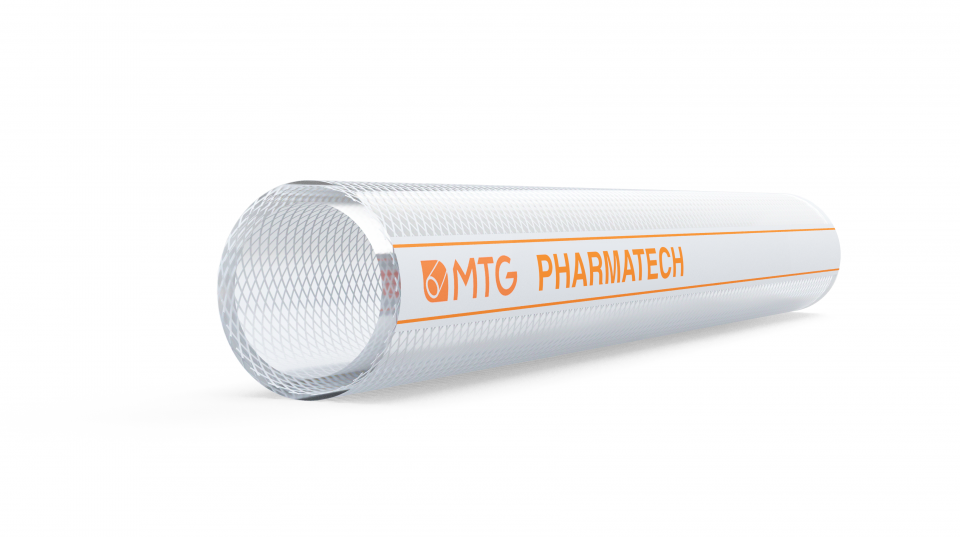

Platinum-cured silicone hose, designed for conveying high-purity products.

MTG PHARMATECH is normally used in the pharmaceutical, cosmetic, biotech and food industry.

Delivery hose, not recommended for suction.

Hose in accordance with EC 1935/2004.

Autoclavable.

More details
Contact us
Data sheet

Main benefits

  • Non-stick hose: it provides utmost safety during transport of high-purity fluids, thus removing the risk of bacterial growth on the hose surfaces.
  • Perfectly smooth: it may easily be cleaned.
  • Translucent, platinum-cured silicone: the see-through material is important for liquid-handling applications where the flow must be monitored.
  • Non-plasticized hose.

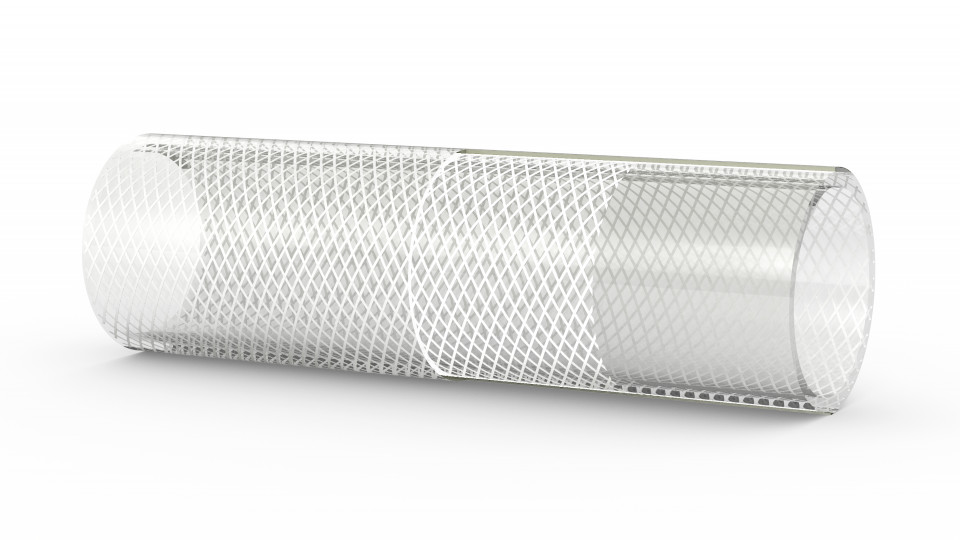

Construcion

TUBE

  • Platinum-cured silicone rubber, pharmaceutical and food quality, light colour, odourless and tasteless, mirror smooth.
  • Compliance: USP Class VI, 3A, FDA Standards, European Pharmacopoeia (E.P. 3.1.9.), BfR Recommendation XV, ISO 10993-4, -11, non-cytotoxic according to ISO 10993-Part 5.

REINFORCEMENT

  • Plies of synthetic cord.

COVER

  • Platinum-cured silicone rubber, pharmaceutical and food quality, light colour, odourless and tasteless, mirror smooth.
  • Compliance: USP Class VI, 3A, FDA Standards, European Pharmacopoeia (E.P. 3.1.9.), BfR Recommendation XV, ISO 10993-4, -11, non-cytotoxic according to ISO 10993-Part 5.

Safety factors

  • ≥ 3 times working pressure.

Temperatures

  • From -60°C to +180°C depending on the fluids conveyed.

Sterilization

  • Sterilization with steam up to +135°C or, as an alternative, cobalt or argon radiations.

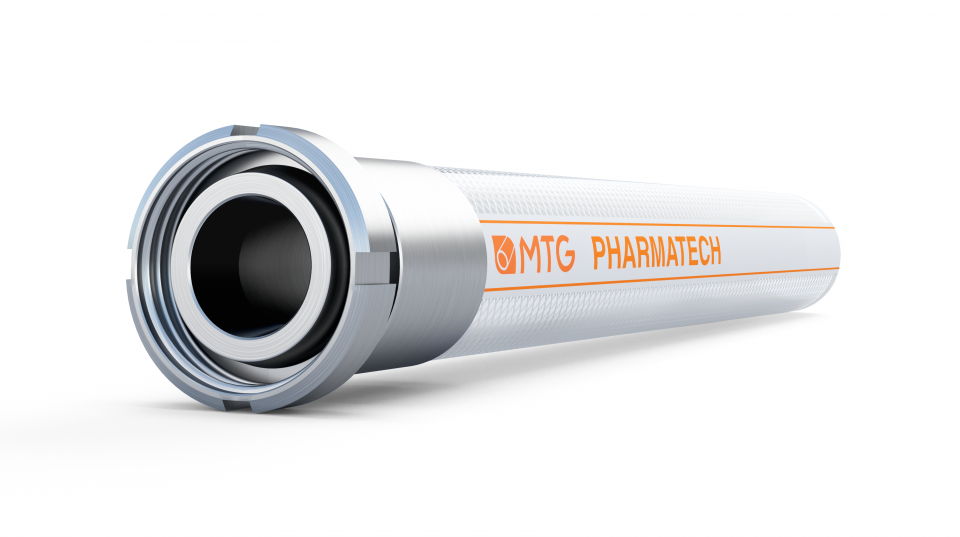

Fitting

  • By means of clamps, collars or crimping.
  • If required, we can supply special reusable fittings ensuring a regular flow and preventing turbulences inside the hose.

Dimensional tollerance

I.D.: ISO 1307– Wall thickness: DIN 7715 T4 S2 – Length: ISO 1307

Internal diam.
mm		 External diam.
mm		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
mm		 Approx. weight
kg/m		 Max. length
m
3.18 9.81 15 45 30 70 25
4.72 11.35 15 45 35 106 25
6.35 13.03 15 45 40 124 25
7.93 14.61 12 36 45 147 25
9.52 16.32 12 36 50 175 25
12.70 20.10 10 30 65 237 25
15.87 24.37 8 24 75 330 25
19.05 27.91 8 24 80 415 25
22.20 31.12 5 15 100 455 25
25.40 34.50 5 15 120 513 10
31.75 40.80 4 12 150 617 10
Internal diam.
inch		 External diam.
inch		 Working pressure
BAR		 Burst pressure
BAR		 Min. bending radius
inch		 Approx. weight
kg/m		 Max. length
m
0.12 0,386 218 653 1.18 0.047 82
0.18 0,447 218 653 1.38 0.071 82
0.25 0,513 218 653 1.57 0.083 82
0.31 0,575 174 522 1.77 0.099 82
0.37 0,643 174 522 1.97 0.118 82
0.50 0,791 145 435 2.56 0.159 82
0.62 0,959 116 348 2.95 0.222 82
0.75 1,099 116 348 3.15 0.279 82
0.87 1,232 73 218 3.94 0.306 82
1.00 1358 73 218 4.72 0.345 32.8
1.25 1,606 58 174 5.91 0.415 32.8

Chemical resistance acc. to MTG Chemical Chart. Above technical data refer to application at room temperature (+20°C).
Please contact our Sales Dept.

The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
