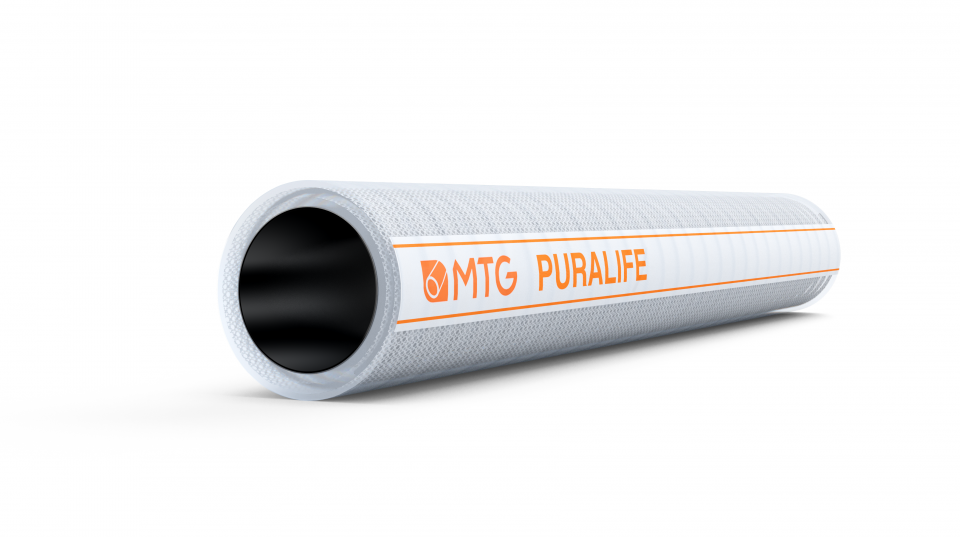

MTG PURALIFE™

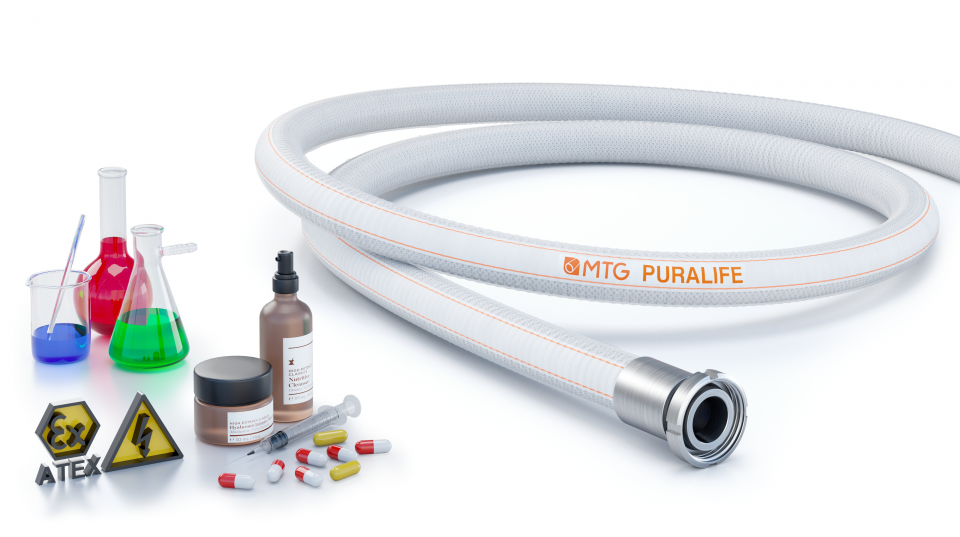

MTG Puralife has been designed for conveying pharmaceutical, food and cosmetic products.
Excellent solution for conveying high purity fluids; it combines the benefits of a special antistatic PFA tube with the platinum-cured silicone structure.
Suction and delivery hose.
Produced with MTGp™ technology (Manufacturing Tubing Green Process).
Hose suitable for the transport of non-abrasive powders.
Hose approved by the Institute Ineris, certification nr. INERIS-16-AM-342, for use in Atex areas.
Main benefits
- Antistatic tube.
-
Made in Cleanroom ISO 14644-1 Class 8.
- No use of additives or chemicals potentially dangerous for environment and human health.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates, nitrosamines, and materials subject to restrictions according to EC 1907/2006 (REACH).
- Non-plasticized hose.

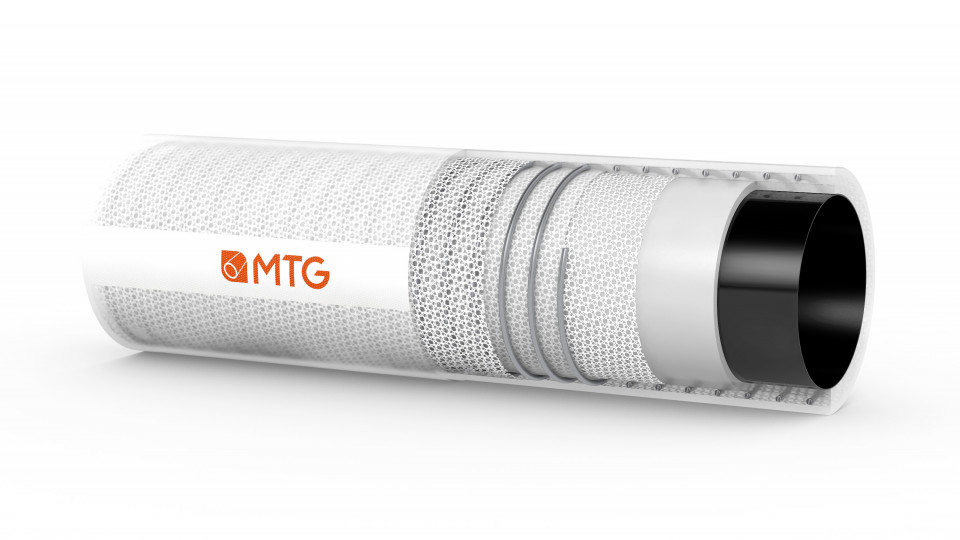

Construcion
TUBE
- PFA (Perfluoro Alcoxy, black PFA), fully fluorinated, black colour, antistatic (R< 10^6 Ω), mirror-smooth.
- Compliance: US Pharmacopoeia Class VI, FDA Standards, D.M. 21/03/73 and following amendments, Regulation EU n. 10/2011, ISO 10993-4, -10, -11, non-cytotoxic according to ISO 10993-Part 5.
REINFORCEMENT
- High strength plies of synthetic cord.
- Stainless steel helix wire.
COVER
- Translucent non-toxic platinum-cured silicone (code PT3362), traslucent, glossy finish.
- It may be easily cleaned with any mild detergent.
- Compliance: USP Class VI, FDA Standards, BfR, and European Pharmacopoeia (E.P. 3.1.9), ISO 10993-4, -10, -11, non cytotoxic according to ISO 10993-Part 5.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -30°C to +150°C, depending on the fluids conveyed and on the kind of use.
Note
- We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.
- If required, all our products may be supplied in “TXI” version (embedded stainless steel wire braids).
Sterilization
- Sterilization with steam up to +135°C, in an open circuit, for max 30 minutes.
- For other cleaning, disinfection and sterilization processes with steam, please contact our Sales Department.
Fittings

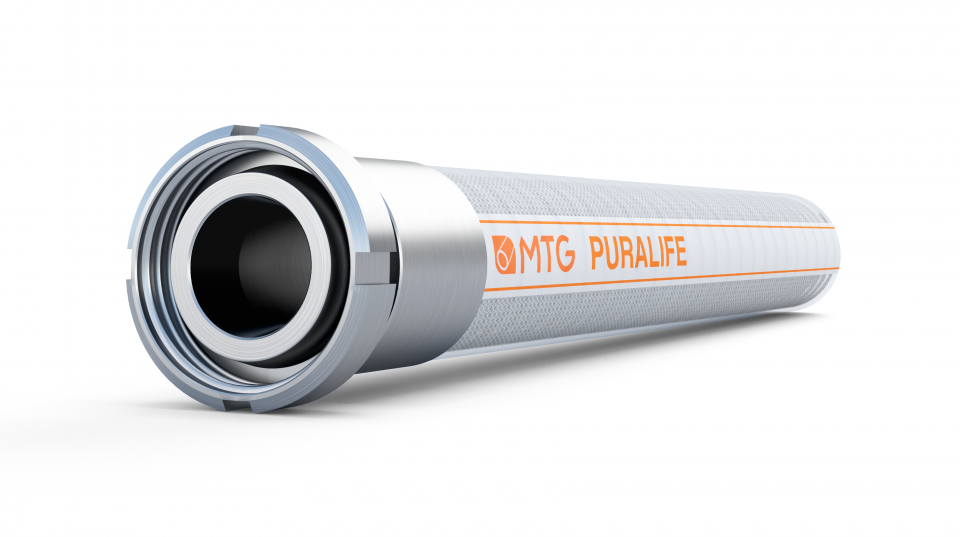

- It may be supplied with couplings lined with black conductive PFA (clamp, flange, camlock etc.).
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: ±0.8mm – Length: ISO 1307 Metric Imperial
| Internal diam. mm |
External diam. mm |
Wall thickness mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius mm |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|---|
| 19 | 31 | 6 | 10 | 30 | 120 | -0,9 | 0,68 | 20 |
| 25 | 37 | 6 | 10 | 30 | 150 | -0,9 | 0,82 | 20 |
| 32 | 44 | 6 | 10 | 30 | 200 | -0,9 | 1,04 | 20 |
| 38 | 52 | 7 | 10 | 30 | 250 | -0,9 | 1,52 | 20 |
| 51 | 67 | 8 | 10 | 30 | 300 | -0,9 | 1,96 | 20 |
| 63,5 | 79,5 | 8 | 5 | 15 | 380 | -0,9 | 2,98 | 20 |
| 76 | 92 | 8 | 4 | 12 | 460 | -0,9 | 3,51 | 20 |
| Internal diam. inch |
External diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Approx. weight kg/m |
Max. length m |
|---|---|---|---|---|---|---|---|
| 3/4 | 1,22 | 145 | 435 | 4,72 | -26,57 | 0,45 | 65,6 |
| 1 | 1,46 | 145 | 435 | 5,91 | -26,57 | 0,55 | 65,6 |
| 1 1/4 | 1,73 | 145 | 435 | 7,87 | -26,57 | 0,7 | 65,6 |
| 1 1/2 | 2,05 | 145 | 435 | 9,84 | -26,57 | 1,02 | 65,6 |
| 2 | 2,64 | 145 | 435 | 11,81 | -26,57 | 1,31 | 65,6 |
| 2 1/2 | 3,13 | 72,5 | 217,5 | 14,96 | -26,57 | 2 | 65,6 |
| 3 | 3,62 | 58 | 174 | 18,11 | -26,57 | 2,35 | 65,6 |
Above technical data refer to application at room temperature (+20°C). Other sizes available upon request. Please contact our Sales Department.
The graphic representation of the products is made for the sole purpose of illustrating the product and is purely indicative
