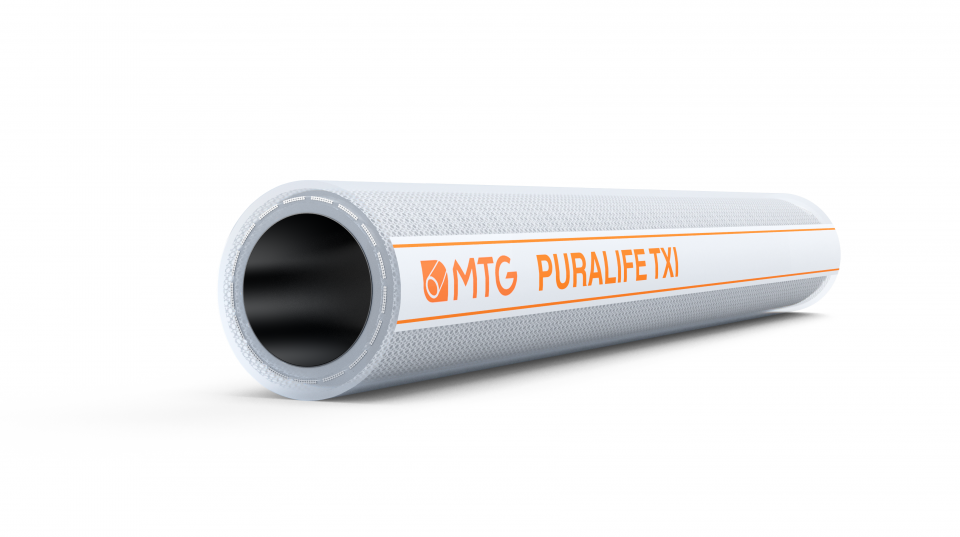

MTG PURALIFE™ TXI

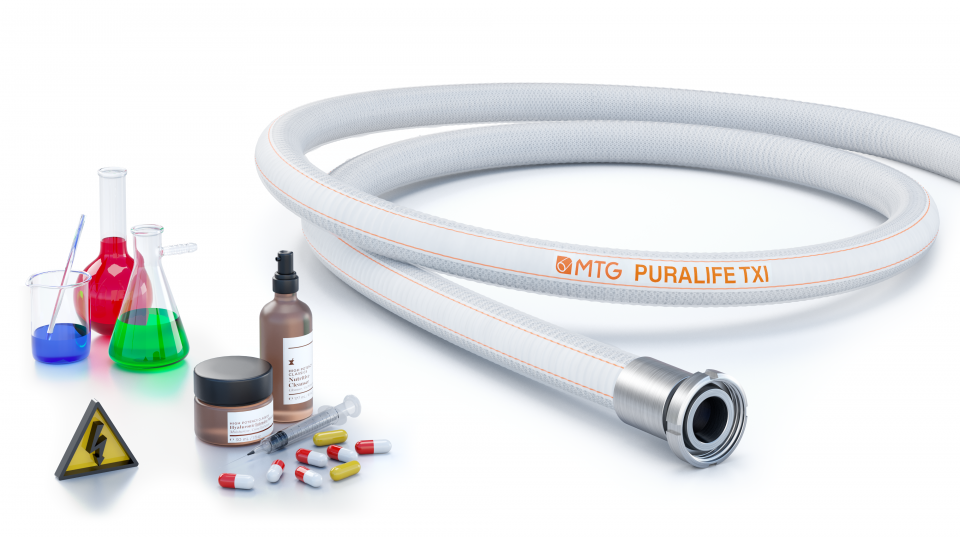

This hose has been designed for conveying pharmaceutical, food and cosmetic products.
Excellent solution for conveying high purity fluids; it combines the benefits of a special antistatic PFA tube with the platinum-cured silicone structure.
Suction and delivery hose.
Produced with MTGp™ technology (Manufacturing Tubing Green Process).
Hose suitable for the transport of NON-ABRASIVE powders.
PATENT: E.P. 1450092
Main benefits
- 100% safe transport of the fluid: no risk of contamination.
- Antistatic tube.
- No use of additives or chemicals potentially dangerous for environment and human health.
- Marking made with food quality pigments.
- Traceability is ensured for the whole production process of the hose.
- Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
- The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).

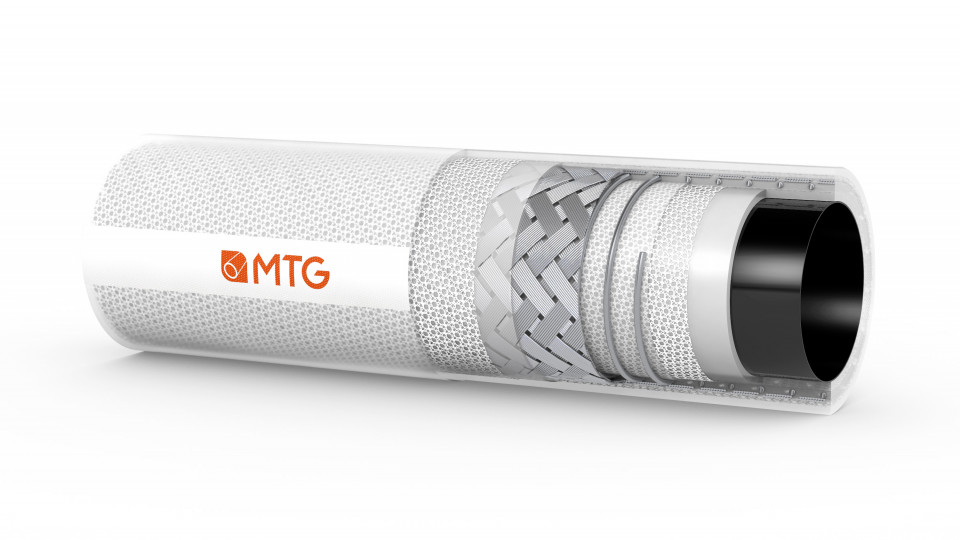

Construcion
TUBE
- PFA (Perfluoro Alcoxy, black PFA), fully fluorinated, black colour, antistatic (R< 10^6 Ohm), mirror-smooth.
- Complying with USP Class VI and FDA Standards.
REINFORCEMENT
- High strength plies of synthetic cord.
- Stainless steel helix wire.
- Braided stainless steel wire mesh.
COVER
- Translucent non-toxic platinum silicone (3362PT-SILICONE/CLEARWAY- PLATINUM), light colour, glossy finish (no cloth finish).
- It does not generate any residuals in comparison with the traditional cloth finish.
- It may easily be washed with cleaning products.
- Complying with USP Class VI, EU Pharmacopoeia and FDA Standards.
Safety factors
- ≥ 6 times working pressure.
Temperatures
- From -30°C to +150°C, depending on the fluids conveyed and on the kind of use.
Note
- We suggest you to follow the instructions mentioned in the MTG “Use and maintenance guide for PFA/MFA hoses”.
- Version without braided stainless steel wire mesh: MTG PURALIFE.
Sterilization
- Sterilization with steam up to +210°C, in an open circuit, for max 30 minutes.
- For other cleaning, disinfection and sterilization processes with steam, please contact our Sales Department.

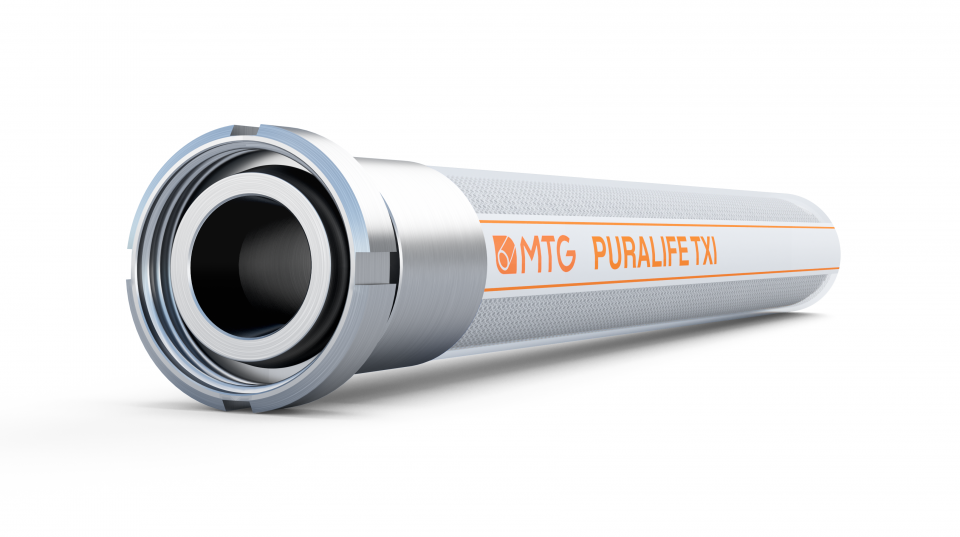

Fitting
- Available with fittings coated with black conductive PFA (clamps, flanges, kamlocks etc.).
Marking
Dimensional tollerance
I.D.: ISO 1307 – Wall thickness: ±0.8mm – Length: ISO 1307
| Internal diam. mm |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Max. length m |
|---|---|---|---|---|---|
| 19 | 10 | 60 | 180 | -0,9 | 20 |
| 25 | 10 | 60 | 225 | -0,9 | 20 |
| 32 | 10 | 60 | 300 | -0,9 | 20 |
| 38 | 10 | 60 | 375 | -0,9 | 20 |
| 51 | 10 | 60 | 450 | -0,9 | 20 |
| Internal diam. inch |
Working pressure BAR |
Burst pressure BAR |
Min. bending radius inch |
Vacuum BAR |
Max. length m |
|---|---|---|---|---|---|
| 3/4 | 150 | 900 | 7,09 | -26,57 | 65,6 |
| 1 | 150 | 900 | 8,86 | -26,57 | 65,6 |
| 1 1/4 | 150 | 900 | 11,81 | -26,57 | 65,6 |
| 1 1/2 | 150 | 900 | 14,76 | -26,57 | 65,6 |
| 2 | 150 | 900 | 17,72 | -26,57 | 65,6 |
Above technical data refer to application at room temperature (+20°C). Other sizes available upon request. Please contact our Sales Department.
